Implementation of a 4-bit Universal Shift Register

A 4-bit Universal Shift Register is capable of storing and shifting data either left or right, along with the capability to load data serially or parallelly. In this paper, we aim to design an energy-efficient 4-bit Universal Shift Register using 28nm technology, which performs 3 major operations namely, Parallel Load, Shift Left and Shift Right. To keep power dissipation as a factor, the design includes usage of multiplexers and flip flops. Moreover, a universal shift register, if designed efficiently, can be of major use in data transfer, counters, memory elements and so much more

REQUIREMENTS Synopsys Custom Compiler

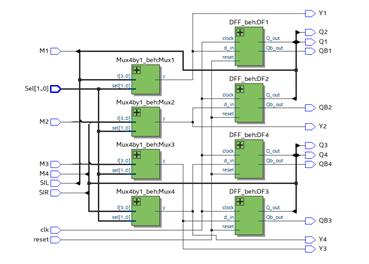

REFERENCE CIRCUIT DIAGRAM WhatsApp Image 2022-02-19 at 1 14 32 PM

OPERATION TABLE image

SIMULATED CIRCUIT DIAGRAM image

WORKING The working of the design is simply operated by two inputs, S0 and S1, called as select lines for multiplexers. As shown in the operation table, depending on what inputs are provided to the select lines. For example, if inputs are low for both the pins, the circuit remains in locked state acting as a storage element. Now, if the inputs provided are 0 and 1 for S0 and S1 respectively, a left shift operation is done. For loading data parallelly, the inputs required would be 1 and 1. Now, depending on the inputs, each multiplexer produces an output which is fed to the input of the D flip flop. These flip flops are sequential circuits and hence are controlled by the clock, and so controls the outputs.

NAND Gate Schematic

nand_schematic

NAND GATE TESTBENCH

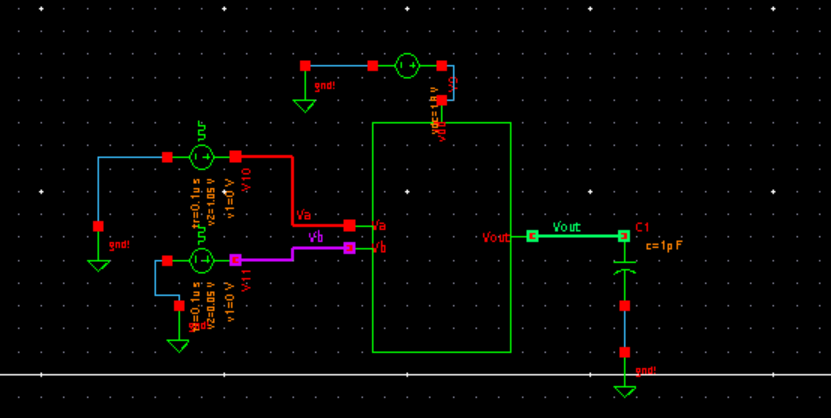

nand_tb

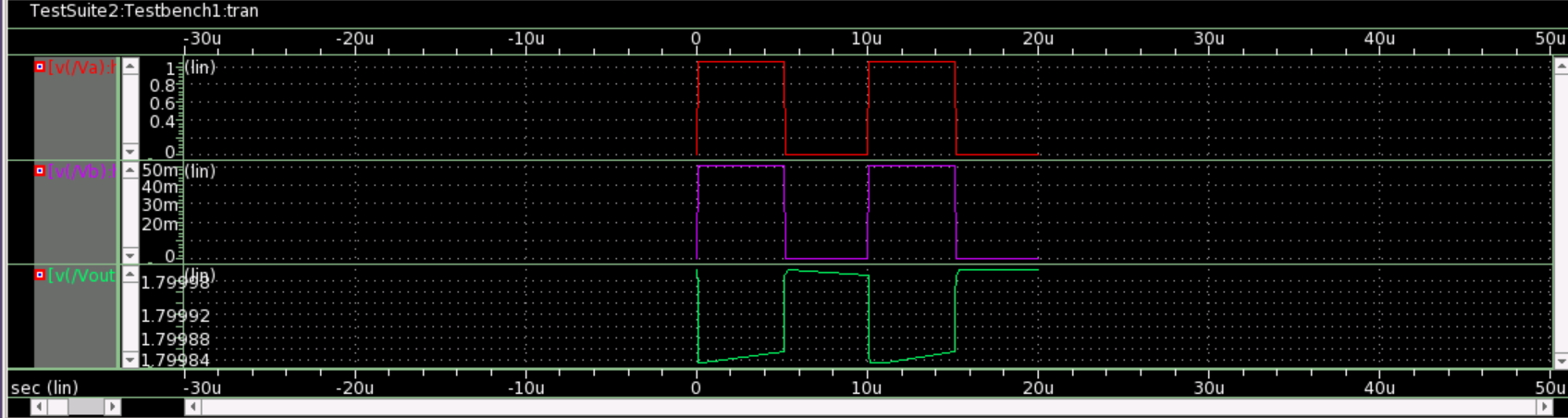

OUTPUT WAVEFORM

nand_gate_outputwave

Netlist

  • Generated for: PrimeSim
  • Design library name: USR
  • Design cell name: nand_gate_tb
  • Design view name: schematic .lib 'saed32nm.lib' TT

*Custom Compiler Version S-2021.09 *Mon Feb 28 11:44:25 2022

.global gnd! vdd!

  • Library : USR
  • Cell : nand_gate
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt nand_gate va vb vout vdd vt_bulk_n_gnd! vt_bulk_p_vdd! xm1 vout vb vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm0 vout va vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm3 net10 vb gnd! vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 xm2 vout va net10 vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 .ends nand_gate

  • Library : USR
  • Cell : nand_gate_tb
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

xi0 va vb vout net11 gnd! vdd! nand_gate c1 vout gnd! c=1p v9 net11 gnd! dc=1.8 v11 vb gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u ) v10 va gnd! dc=0 pulse ( 0 1.05 0 0.1u 0.1u 5u 10u )

.tran '1u' '20u' name=tran

.option primesim_remove_probe_prefix = 0 .probe v() i() level=1 .probe tran v(va) v(vb) v(vout)

.temp 25

.option primesim_output=wdf

.option parhier = LOCAL

.end

D Flip Flop

DFF Schematic DFF_schematic

DFF TESTBENCH DFF_tb

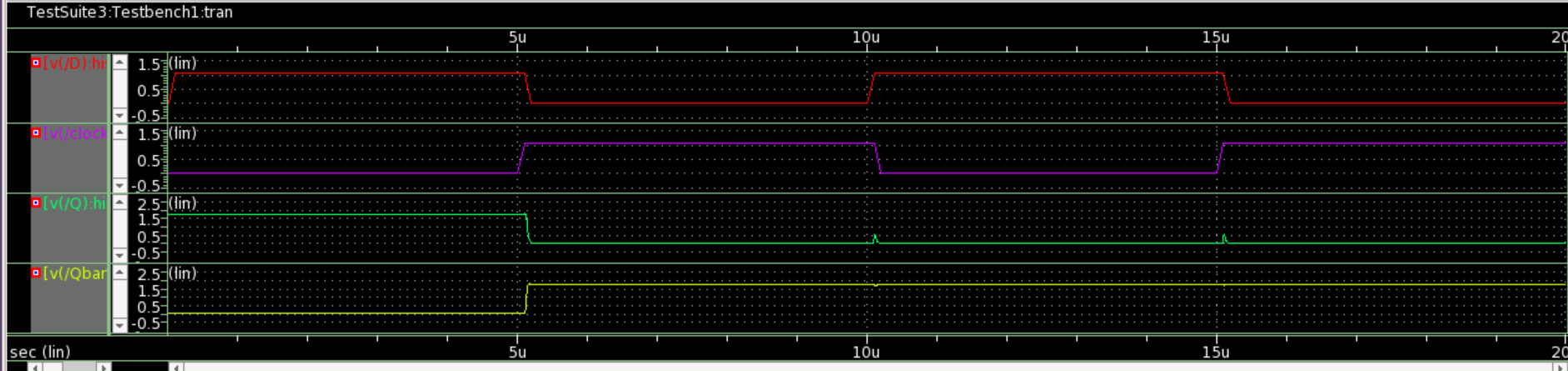

OUTPUT WAVEFORM DFF_waveform

NETLIST

  • Generated for: PrimeSim
  • Design library name: USR
  • Design cell name: DFF_tb
  • Design view name: schematic .lib 'saed32nm.lib' TT

*Custom Compiler Version S-2021.09 *Mon Feb 28 12:36:53 2022

.global gnd! vdd!

  • Library : USR
  • Cell : nand_gate
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt nand_gate va vb vout vdd vt_bulk_n_gnd! vt_bulk_p_vdd! xm1 vout vb vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm0 vout va vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm3 net10 vb gnd! vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 xm2 vout va net10 vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 .ends nand_gate

  • Library : USR
  • Cell : DFF
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt dff d q qbar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! xi4 net19 qbar q vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi3 q net16 qbar vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi2 clock net12 net16 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi1 d clock net19 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi0 d d net12 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate .ends dff

  • Library : USR
  • Cell : DFF_tb
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

xi0 d q qbar net23 clock gnd! vdd! dff c1 qbar gnd! c=1p c2 q gnd! c=1p v17 clock gnd! dc=0 pulse ( 0 1.05 5u 0.1u 0.1u 5u 10u ) v16 d gnd! dc=0 pulse ( 0 1.05 0 0.1u 0.1u 5u 10u ) v15 net23 gnd! dc=1.8

.tran '1u' '20u' name=tran

.option primesim_remove_probe_prefix = 0 .probe v() i() level=1 .probe tran v(d) v(q) v(qbar) v(clock)

.temp 25

.option primesim_output=wdf

.option parhier = LOCAL

.end

4x1 MULTIPLEXER (MUX)

4x1 MUX SCHEMATIC

mux_design

4x1 MUX TESTBENCH

mux_tb

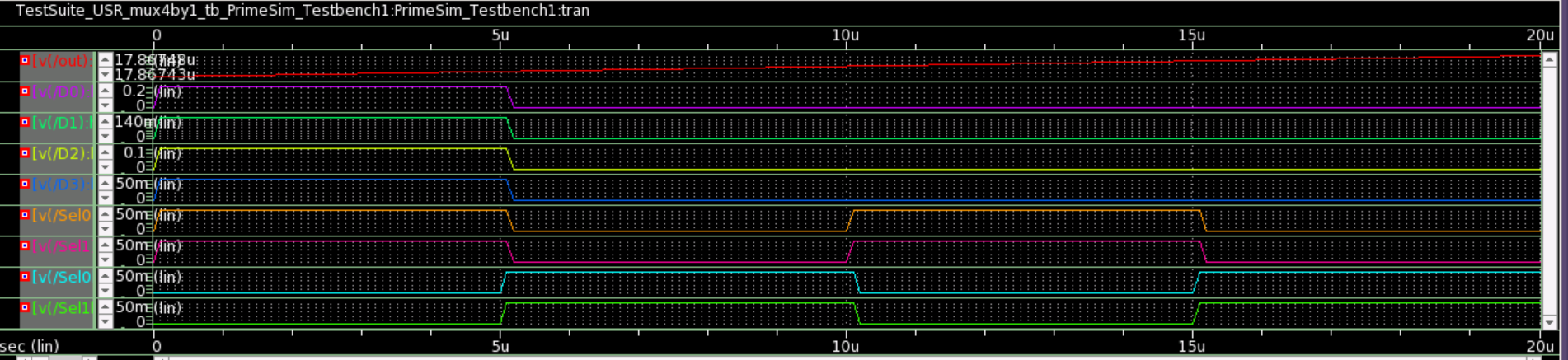

4x1 MUX WAVEFORM

mux4by1_wave

NETLIST

  • Generated for: PrimeSim
  • Design library name: USR
  • Design cell name: mux4by1_tb
  • Design view name: schematic .lib 'saed32nm.lib' TT

*Custom Compiler Version S-2021.09 *Tue Mar 1 16:52:49 2022

.global gnd! vdd!

  • Library : USR
  • Cell : nand_gate
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt nand_gate va vb vout vdd vt_bulk_n_gnd! vt_bulk_p_vdd! xm1 vout vb vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm0 vout va vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm3 net10 vb gnd! vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 xm2 vout va net10 vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 .ends nand_gate

  • Library : USR
  • Cell : mux4by1
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt mux4by1 d0 d1 d2 d3 sel0 sel1 sel1bar vdd out sel0bar vt_bulk_n_gnd!

  • vt_bulk_p_vdd! xi8 net35 net36 out vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi7 net31 sel1 net35 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi6 sel1bar net28 net36 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi5 net23 net24 net28 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi4 net19 net20 net31 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi3 sel0 d3 net19 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi2 sel0bar d2 net20 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi1 sel0 d1 net23 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi0 sel0bar d0 net24 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate .ends mux4by1
  • Library : USR
  • Cell : mux4by1_tb
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

xi0 d0 d1 d2 d3 sel0 sel1 sel1bar net12 out sel0bar gnd! vdd! mux4by1 v1 net12 gnd! dc=1.8 c2 out gnd! c=1p v22 d0 gnd! dc=0 pulse ( 0 0.2 0 0.1u 0.1u 5u 20u ) v21 d1 gnd! dc=0 pulse ( 0 0.15 0 0.1u 0.1u 5u 20u ) v20 d2 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v19 d3 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 20u ) v18 sel0 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u ) v17 sel0bar gnd! dc=0 pulse ( 0 0.05 5u 0.1u 0.1u 5u 10u ) v14 sel1bar gnd! dc=0 pulse ( 0 0.05 5u 0.1u 0.1u 5u 10u ) v13 sel1 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u )

.tran '1u' '20u' name=tran

.option primesim_remove_probe_prefix = 0 .probe v() i() level=1 .probe tran v(d0) v(d1) v(d2) v(d3) v(sel0) v(sel0bar) v(sel1) v(sel1bar) v(out)

.temp 25

.option primesim_output=wdf

.option parhier = LOCAL

.end

FINAL CIRCUIT

4-bit UNIVERSAL SHIFT REGISTER (USR)

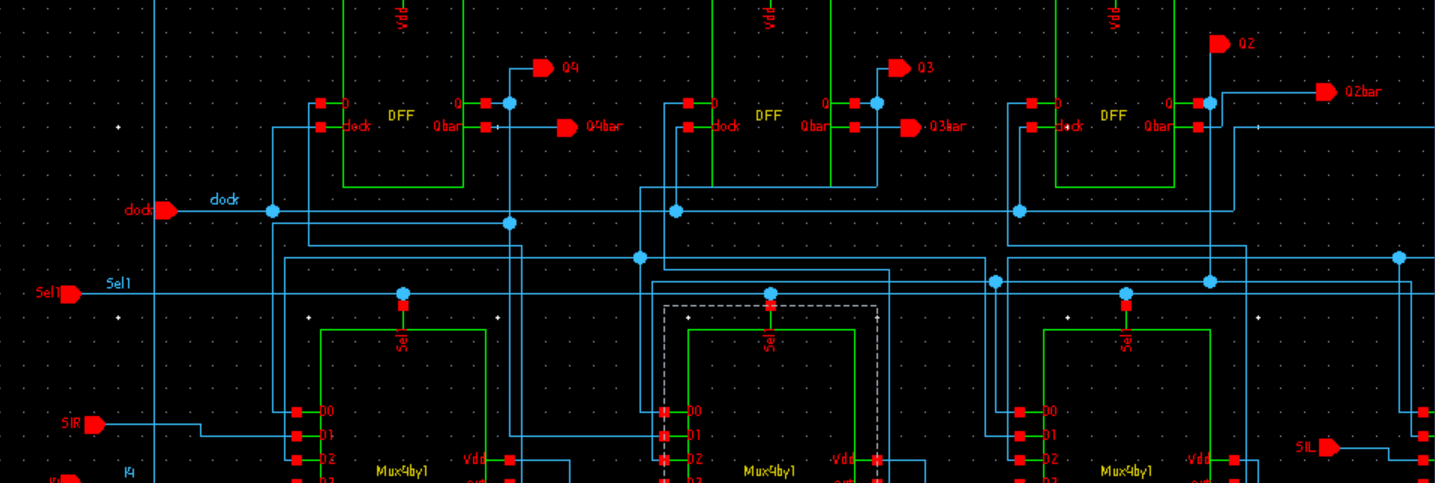

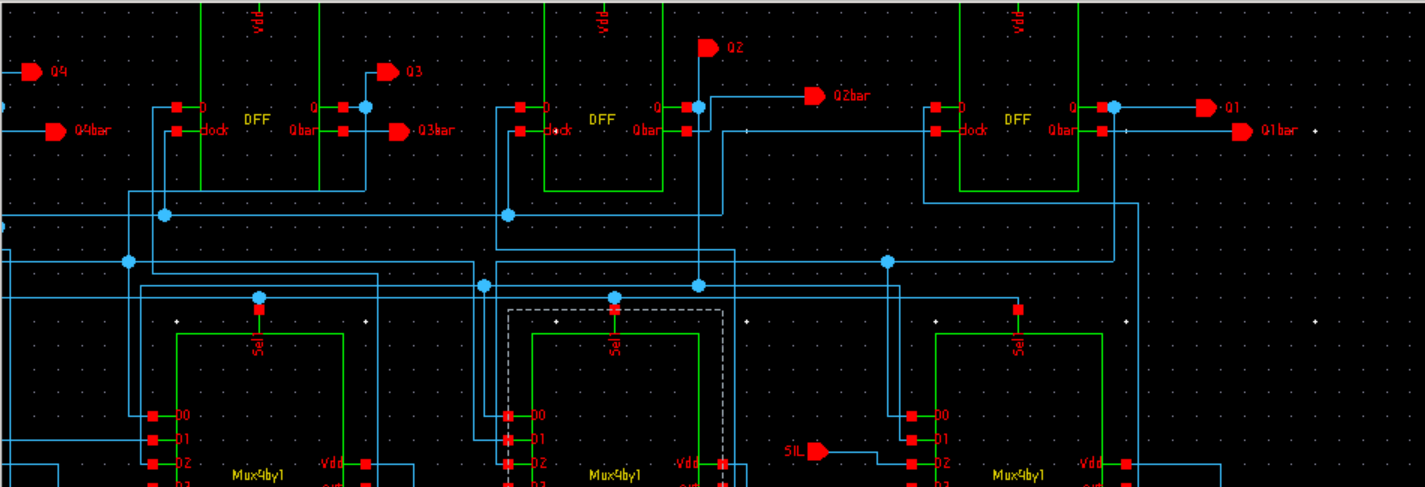

4-bit USR SCHEMATIC image

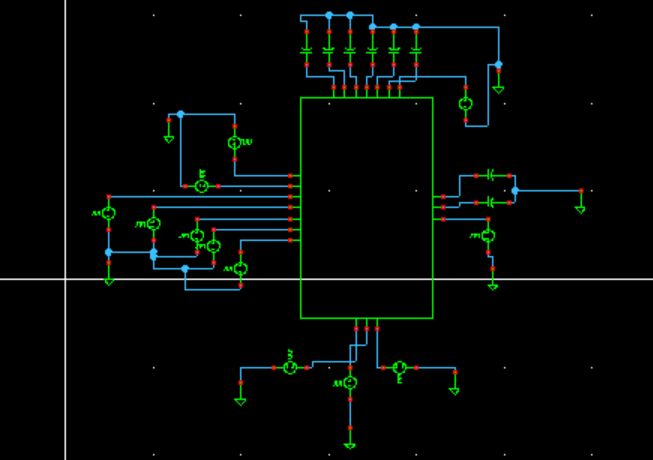

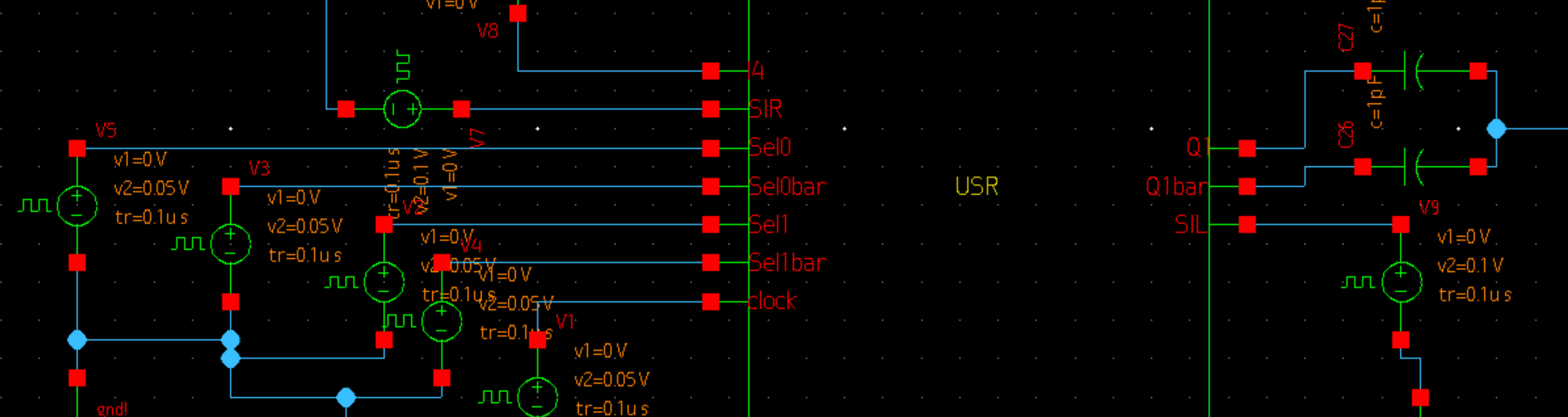

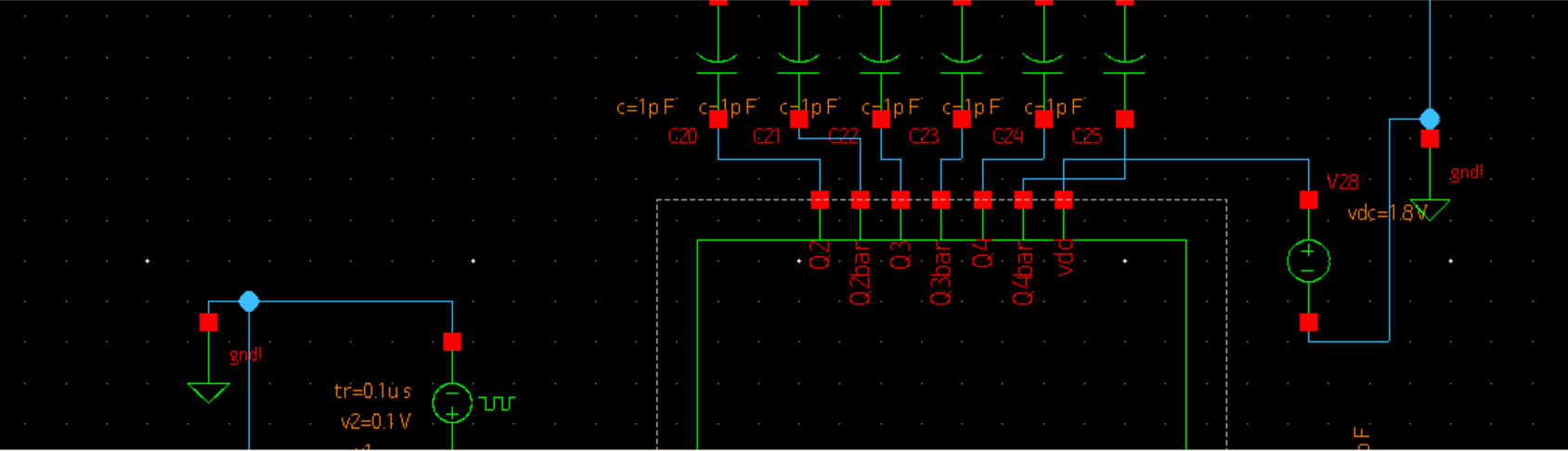

4-bit USR TESTBENCH image image

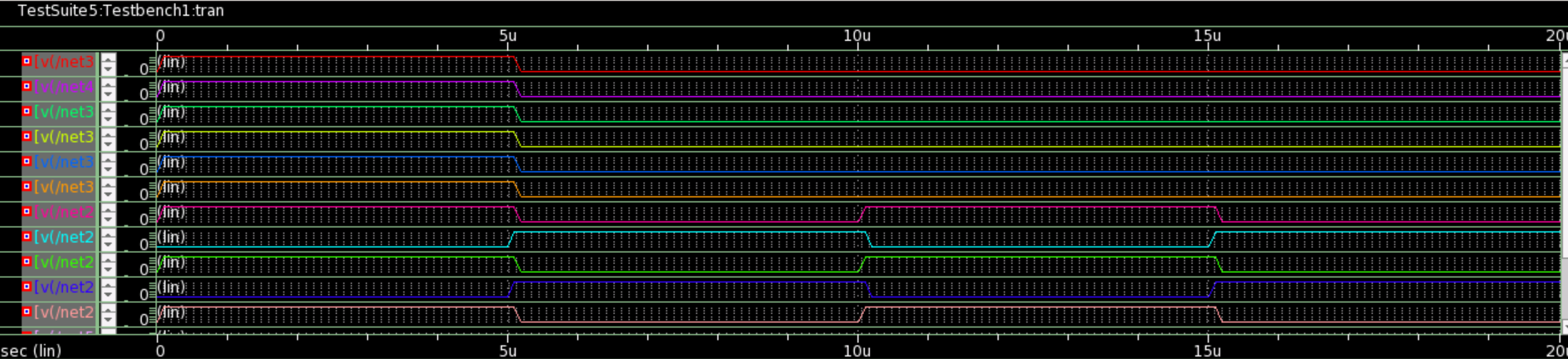

4-bit USR WAVEFORM



NETLIST

  • Generated for: PrimeSim
  • Design library name: USR
  • Design cell name: USR_tb
  • Design view name: schematic .lib 'saed32nm.lib' TT

*Custom Compiler Version S-2021.09 *Tue Mar 1 18:21:53 2022

.global gnd! vdd!

  • Library : USR
  • Cell : nand_gate
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt nand_gate va vb vout vdd vt_bulk_n_gnd! vt_bulk_p_vdd! xm1 vout vb vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm0 vout va vdd vt_bulk_p_vdd! p105 w=0.1u l=0.03u nf=1 m=1 xm3 net10 vb gnd! vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 xm2 vout va net10 vt_bulk_n_gnd! n105 w=0.1u l=0.03u nf=1 m=1 .ends nand_gate

  • Library : USR
  • Cell : DFF
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt dff d q qbar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! xi4 net19 qbar q vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi3 q net16 qbar vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi2 clock net12 net16 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi1 d clock net19 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi0 d d net12 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate .ends dff

  • Library : USR
  • Cell : mux4by1
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt mux4by1 d0 d1 d2 d3 sel0 sel1 sel1bar vdd out sel0bar vt_bulk_n_gnd!

  • vt_bulk_p_vdd! xi8 net35 net36 out vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi7 net31 sel1 net35 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi6 sel1bar net28 net36 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi5 net23 net24 net28 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi4 net19 net20 net31 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi3 sel0 d3 net19 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi2 sel0bar d2 net20 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi1 sel0 d1 net23 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate xi0 sel0bar d0 net24 vdd vt_bulk_n_gnd! vt_bulk_p_vdd! nand_gate .ends mux4by1
  • Library : USR
  • Cell : USR
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

.subckt usr i1 i2 i3 i4 q1 q1bar q2 q2bar q3 q3bar q4 q4bar sil sir sel0 sel0bar

  • sel1 sel1bar clock vdd vt_bulk_n_gnd! vt_bulk_p_vdd! xi8 net64 q4 q4bar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! dff xi7 net59 q3 q3bar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! dff xi6 net54 q2 q2bar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! dff xi5 net49 q1 q1bar vdd clock vt_bulk_n_gnd! vt_bulk_p_vdd! dff xi4 q1 q2 sil i1 sel0 sel1 sel1bar vdd net49 sel0bar vt_bulk_n_gnd!
  • vt_bulk_p_vdd! mux4by1 xi3 q2 q3 q1 i2 sel0 sel1 sel1bar vdd net54 sel0bar vt_bulk_n_gnd!
  • vt_bulk_p_vdd! mux4by1 xi2 q3 q4 q2 i3 sel0 sel1 sel1bar vdd net59 sel0bar vt_bulk_n_gnd!
  • vt_bulk_p_vdd! mux4by1 xi1 q4 sir q3 i4 sel0 sel1 sel1bar vdd net64 sel0bar vt_bulk_n_gnd!
  • vt_bulk_p_vdd! mux4by1 .ends usr
  • Library : USR
  • Cell : USR_tb
  • View : schematic
  • View Search List : hspice hspiceD schematic spice veriloga
  • View Stop List : hspice hspiceD

xi0 net39 net41 net38 net34 net58 net56 net44 net46 net48 net50 net52 net54

  • net35 net31 net29 net25 net23 net27 net21 net59 gnd! vdd! usr v12 net41 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v11 net39 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v10 net38 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v9 net35 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v8 net34 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v7 net31 gnd! dc=0 pulse ( 0 0.1 0 0.1u 0.1u 5u 20u ) v5 net29 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u ) v4 net27 gnd! dc=0 pulse ( 0 0.05 5u 0.1u 0.1u 5u 10u ) v3 net25 gnd! dc=0 pulse ( 0 0.05 5u 0.1u 0.1u 5u 10u ) v2 net23 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u ) v1 net21 gnd! dc=0 pulse ( 0 0.05 0 0.1u 0.1u 5u 10u ) c27 net58 gnd! c=1p c26 net56 gnd! c=1p c25 net54 gnd! c=1p c24 net52 gnd! c=1p c23 net50 gnd! c=1p c22 net48 gnd! c=1p c21 net46 gnd! c=1p c20 net44 gnd! c=1p v28 net59 gnd! dc=1.8

.tran '1us' '20us' name=tran

.option primesim_remove_probe_prefix = 0 .probe v() i() level=1 .probe tran v(net21) v(net23) v(net25) v(net27) v(net29) v(net31) v(net34)

  • v(net35) v(net38) v(net39) v(net41) v(net44) v(net48) v(net52) v(net58)

.temp 25

.option primesim_output=wdf

.option parhier = LOCAL

.end
