Closes #56.

What

Implements the repeated-measures roadmap item as a dedicated function,
paired_raincloud() (per the design discussion on the issue — keeping
RainCloud's signature untouched). It draws a standard raincloud and connects
each subject's rain points across categories, making within-subject change
visible for paired / pre-post / longitudinal designs.

import ptitprince as pt

pt.paired_raincloud(
    x="condition", y="score", data=df, orient="h",
    id="subject",                                        # subject identifier column
    line_color="gray", line_alpha=0.3, line_width=0.5,   # line styling
)

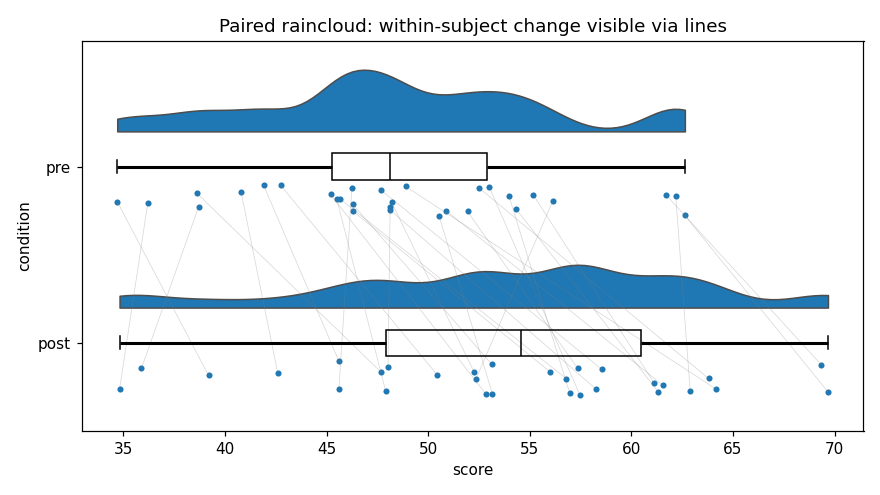

Paired raincloud: 30 subjects, pre to post, each connected by a line

Pre→post on 30 subjects: each thin line is one subject, so within-subject change is visible on top of the group distributions.

How

  • paired_raincloud() wraps RainCloud() — it calls it for all the existing
    cloud/box/rain drawing (so styling stays identical and in one place), then adds
    the connecting lines on top. RainCloud itself is not modified at all.
  • The rain is drawn by the existing stripplot; seaborn doesn't expose the
    jittered coordinates, so a private helper _draw_repeated_measures_lines()
    recovers them from the rain PathCollection offsets (the cloud is a
    PolyCollection and the box is patches/lines, so the rain is the only
    PathCollection added) and matches each point back to its subject using the
    within-category row order of data, which seaborn preserves.
  • NaN measurements are filtered to keep that row-order matching aligned with the
    points seaborn actually drew, so a missing observation simply breaks that
    subject's line instead of misaligning everything.

Scope / limitations (v1)

  • Supports the no-hue / no-dodge case (the overwhelmingly common one).
  • hue / dodge are not accepted — with dodged sub-groups the
    point→subject mapping is ambiguous, so they raise a clear ValueError rather
    than silently drawing something wrong. Extending to dodged sub-groups is a
    sensible follow-up.

Backwards compatibility

Purely additive — a new function plus a private helper. RainCloud is untouched,
so existing behaviour is byte-for-byte unchanged.

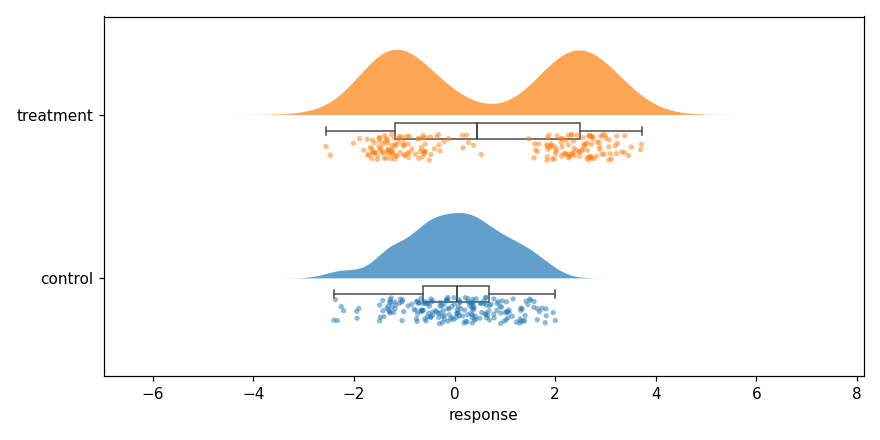

Standard raincloud: unchanged behaviour

RainCloud output is exactly as before.

Tests

Adds TestPairedRaincloud (+ a paired_data fixture in conftest.py):

  • one line per subject, horizontal and vertical;
  • a plain RainCloud draws no per-subject lines;
  • NaN measurements don't error;
  • hue / dodge raise ValueError;
  • non-column-name inputs raise;
  • line-style kwargs accepted; styling kwargs (move, point_size) forward to RainCloud.

All green locally on seaborn 0.13.2 / matplotlib 3.x.

Docs

  • New function carries a full docstring (id / line_color / line_alpha / line_width).
  • Adds a standalone repeated-measures tutorial notebook
    (tutorial_python/tutorial_repeated_measures.ipynb) using the existing Bristol
    AnxietyPaper dataset — which is already repeated-measures, so the feature
    drops straight in.

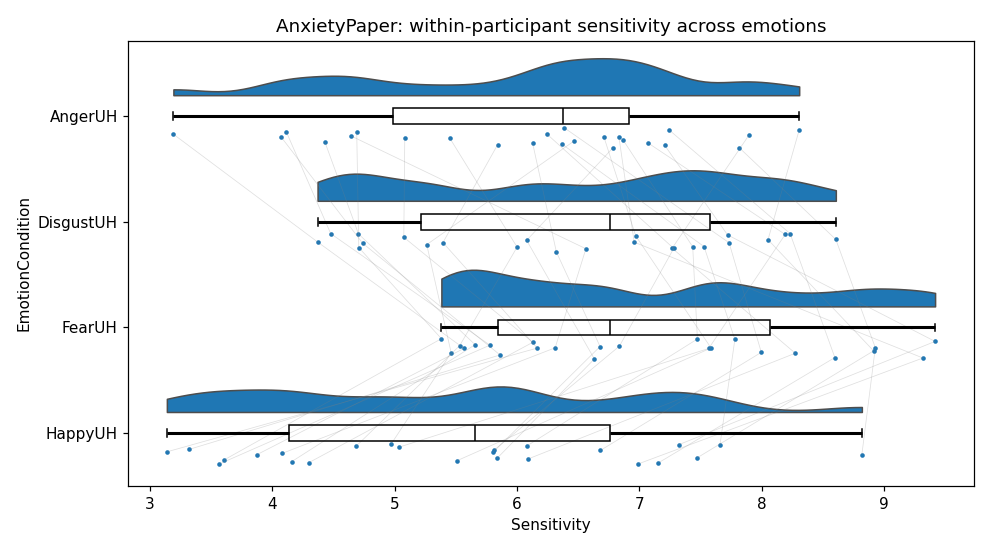

AnxietyPaper: within-participant sensitivity across four emotion conditions

The feature on the tutorial's own AnxietyPaper data: each participant connected across the four emotion conditions.

peyterho added 2 commits June 17, 2026 07:24
Implements the repeated-measures roadmap item as a dedicated function,
paired_raincloud(), rather than new parameters on RainCloud (per the
design discussion on the issue). It wraps RainCloud for the standard
cloud/box/rain drawing, then connects each subject's rain points across
categories for paired / pre-post / longitudinal data.

RainCloud itself is unchanged. hue/dodge raise ValueError, since the
point-to-subject mapping is ambiguous with dodged sub-groups.

Adds the _draw_repeated_measures_lines helper, the paired_data fixture,
the TestPairedRaincloud test class, and a standalone tutorial notebook
on the AnxietyPaper dataset.

Drafted with assistance from Claude (Anthropic).
Example renders embedded in the PR write-up: the pre/post paired demo,
the AnxietyPaper tutorial data with connecting lines, and a standard
RainCloud showing unchanged behaviour.
