1899 validate exercises by fetching them and checking the JSON

[philschatz]

A step in the baking process (cnx-epub) fetches the exercise and fails if certain tags that are on the exercise do not correspond to content in the book.

• openstax/ce#1899

Problem

An exercise was added to a new module. The exercise had an element in the book that was necessary to answer the question and the rules for looking up the element are wonky:

1. If there are no context-cnxmod:<UUID> tags on the exercise then look up the context-cnxfeature:<elementID> on the page where the exercise is linked (<-- this case silently failed)
2. If there are context-cnxmod:<UUID> tags then loop through them and pick the first UUID that is in the book

Solution

TODO

• Mock fetch
• Add tests
• Probably send custom error messages for each possible error case
• Maybe use Mementos Extension-specific Configuration Directory to cache the GET requests for the exercise JSON
  • decided to use a tempdir
• debounce validation so if the user edits the exercise link text we do not make a fetch request for every single key stroke
• include an in-memory cache so we do not read from the filesystem on every keypress
• verify that CM's have a way to invalidate the cache (maybe by restarting the workspace?)

Slack Context

[TylerZeroMaster]

Those are some pretty major changes to validation. It's definitely more explicit. It also helps cut down on repetitive .filter(...).map(...) operations.

I am not very well versed in how exercises work; however, I read through the Slack thread and the cnx-epub PR you linked and, as far as I can tell, you covered everything.

[philschatz]

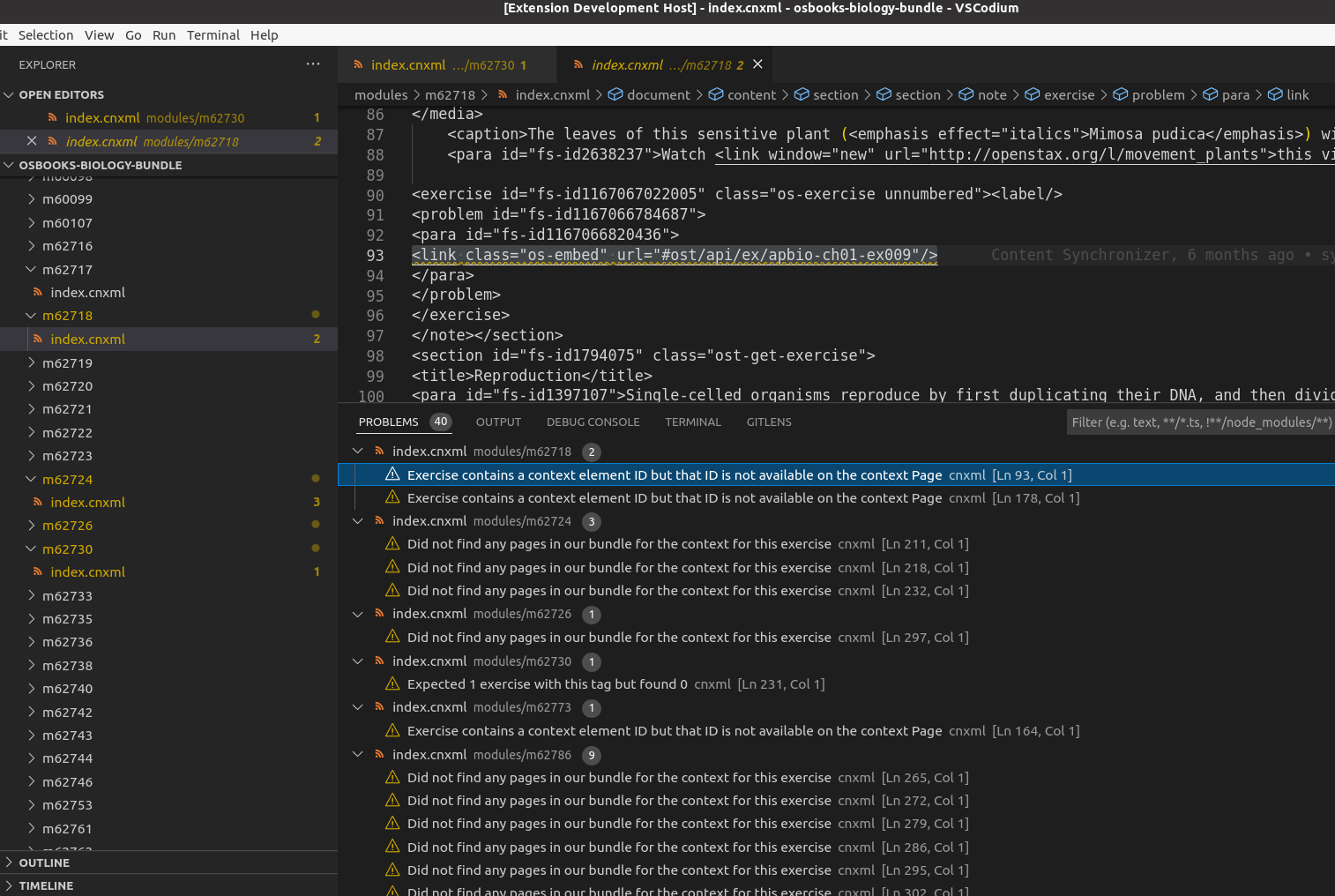

The CLI found several errors which would show up as errors to CM's when they try to commit any of these repos:

• osbooks-biology-bundle/modules/m63030/index.cnxml 308 Expected 1 exercise with this tag but found 0
• osbooks-biology-bundle/modules/m62991/index.cnxml 272 context-feature does not exist in the target page
• (... 14 more from osbooks-biology-bundle...)
• osbooks-contemporary-math/modules/m00009/index.cnxml 889:24 Expected 1 exercise with this tag but found 0
• osbooks-introduction-anthropology/modules/m00085/index.cnxml 62:79 Expected 1 exercise with this tag but found 0
• osbooks-introduction-political-science/modules/m00081/index.cnxml 74:77 Expected 1 exercise with this tag but found 0
• osbooks-intro-finance/modules/m00025/index.cnxml 57:73 Expected 1 exercise with this tag but found 0
• osbooks-life-liberty-and-pursuit-happiness/modules/m83540/index.cnxml 84:27 Expected 1 exercise with this tag but found 0
• osbooks-principles-finance/modules/m00084/index.cnxml 264:77 Expected 1 exercise with this tag but found 0
• osbooks-writing-guide/modules/m00080/index.cnxml 45:26 Expected 1 exercise with this tag but found 0

These errors seem to be correct. Just search for MISSING EXERCISE in this AP Biology PDF

Also, we could make them Warnings which would notify CMs without preventing them from committing

[ne-newton]

I will make a card for the CMs to address the above issues.
@philschatz I think your suggestion of warning CMs, without preventing them from commiting is the way to go.

[philschatz]

I found a way to concisely read/write a cache of the exercise JSON.

For now, I'll write them to a temp directory inside gitpod, so they will disappear when the workspace disappears.

Once that works for a while we can discuss committing the exercises to git.

To be programming-language-agnostic, the filenames in the cache directory are ${encodeURIComponent('/api/exercises?tag=')}.json and every language has a function to encode a URI component. That way characters like / won't mess up with the filenames.

As a proof of concept, this is a proxy server that reads/writes to the cache directory using the format that the Language Server will read/write.

'use strict';

// Usage:
// PORT=3001 TARGET_URL=https://exercises.openstax.org CACHE_DIR=./exercise-cache/ node ./proxy.js

const fs = require('fs');
const path = require('path');
const restify = require('restify')
const bent = require('bent');
const server = restify.createServer();

function getEnv(name) {
  const v = process.env[name]
  if (v) return v
  throw new Error(`Missing required environment variable ${name}`)
}

const port = Number.parseInt(getEnv('PORT'))
const target = getEnv('TARGET_URL')
const cacheDirName = getEnv('CACHE_DIR')
const enableNetwork = !!process.env['ENABLE_NETWORK']

// Always GET json and error if the response is anything except 200
const rootGet = bent(target, 'GET', 'json', 200)

const cachePath = path.resolve(cacheDirName)

function toFilename(url) {
  return path.join(cachePath, `${encodeURIComponent(url)}.json`)
}

function readCache(filename) {
  const cacheItem = JSON.parse(fs.readFileSync(filename, 'utf-8'))
  if (cacheItem.version !== 1) throw new Error('Unsupported storage format. Expected version 1')
  return cacheItem.body
}

async function updateCache(url) {
  if (!enableNetwork) throw new Error('Network requests are disabled. To enable them set the environment variable ENABLE_NETWORK=1')
  console.log('Fetching', target, url)
  const jsonBody = await rootGet(url)
  const cacheItem = {
    version: 1,
    body: jsonBody,
    // etag:
  }
  fs.writeFileSync(toFilename(url), JSON.stringify(cacheItem, null, 2))
  return jsonBody
}

function asyncWrapper(fn) {
  return (req, res, next) => {
    return Promise.resolve(fn(req))
      .then((result) => res.send(result))
      .catch((err) => next(err))
  }
}

server.get('/.*', asyncWrapper(async (req) => {
  const url = req.url
  const filename = toFilename(url)
  let jsonBody
  if (fs.existsSync(filename)) {
    jsonBody = readCache(filename)
    // Async update the cache
    if (enableNetwork) void updateCache(url)
  } else {
    jsonBody = await updateCache(url)
  }
  return jsonBody
}))

server.listen(port, function() {
  console.log(`Proxy server started up on port ${port}`);
});

[philschatz]

(copied from https://github.com/openstax/ce/issues/1899)

Closing for now but should reopen when work resumes.

About 8,000 exercises are missing cnxmod tags. Dantemss is working on getting them back. So I'll pause on this until the tags are restored.

Ryan mentioned that fixing Exercises is usually done at a different time than editing content because exercises are stored in a different service. So, having validation errors pop up in POET is not very useful and preventing [Push Content] would be very undesirable. Also, having Messages in the "Problems" area that don't get resolved will lead to 👁️ fatigue, ignoring the warnings all the time.

My plan is to:

1. wait until the tags have been restored
2. Open the books that use exercises to see how many errors show up
3. If only a couple show up I'll address the remaining issues on the PR (in-mem cache, debounce fetching from exercises)

Slack Chat

[philschatz]

Added some fixes: @04ba826e

[ne-newton]

Where does this stand now?
