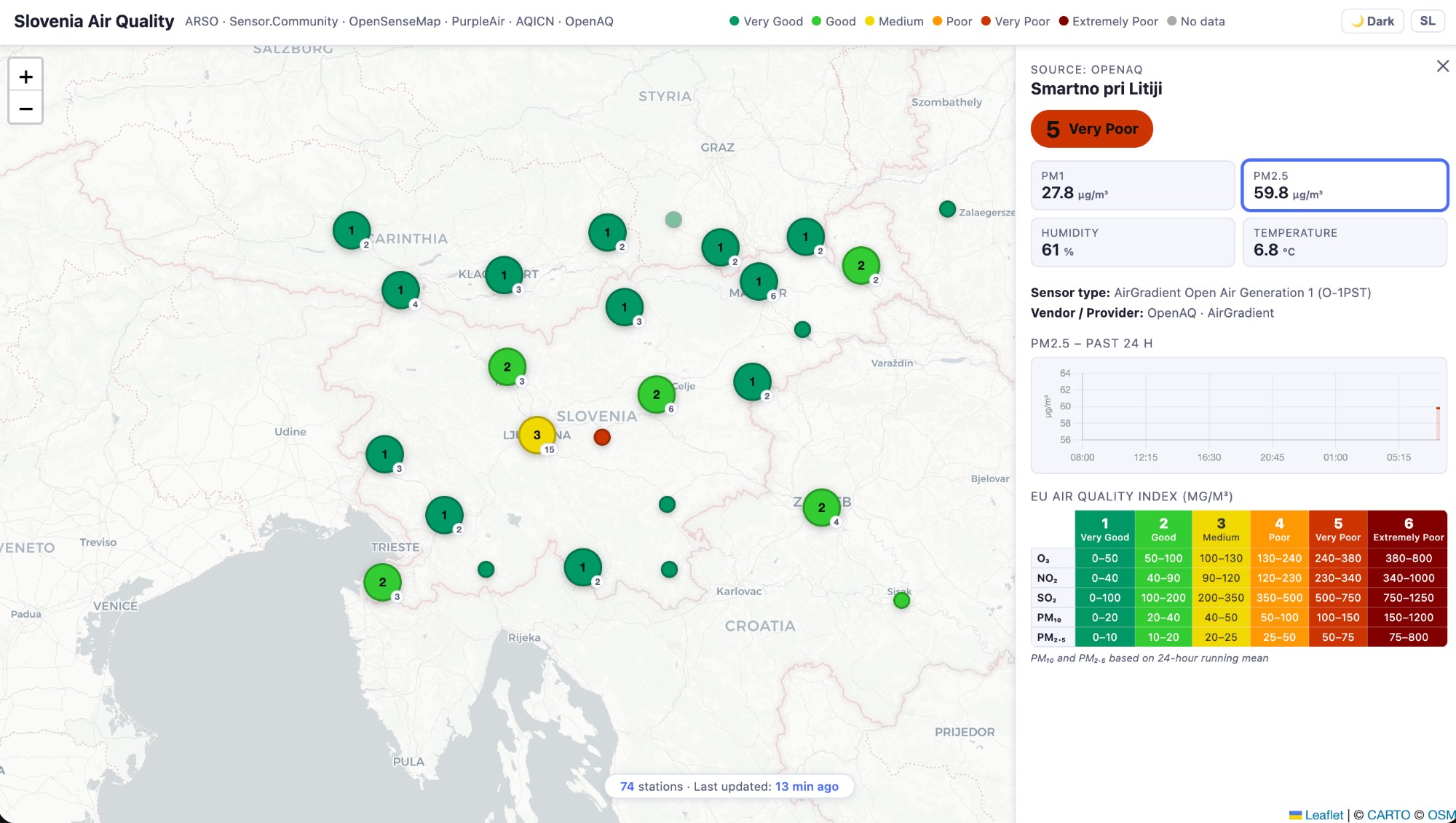

🌬️ AIRQ — Slovenia Air Quality Map

A real-time air quality map for Slovenia, aggregating data from five public and crowdsourced sources into a single interactive map with 24-hour history charts.

Live at → airq.kesma.wtf

---

Features

• Real-time data refreshed every 15 minutes from six sources
• EU EAQI colour-coded markers (levels 1–6, Very Good → Extremely Poor) with zoom-adaptive sizing
• Marker clustering — zoomed-out stations group into a single bubble coloured by the worst EAQI in the cluster; zoom in to see individual markers with their index value
• Interactive station cards — tap any marker to see all readings; click a parameter to switch the 24-hour sparkline chart
• 24-hour history stored locally in SQLite, with a CAMS model fallback for PM2.5 when no local data exists yet
• EAQI calculated from rolling averages — PM2.5 and PM10 colours use the 24-hour running mean from the DB; O₃, NO₂ and SO₂ use the latest hourly value, matching the official EU standard
• In-card EAQI reference table — concentration breakpoints for all five pollutants shown below the chart, bilingual (SL/EN)
• CAMS model overlay — toggle a colour-coded grid over Slovenia (0.25° cells, 1-hour cache) sourced from Open-Meteo/ECMWF; tap any cell to open a full panel with 24-hour charts for all five pollutants and a proper EAQI badge
• Stale station handling — stations that temporarily go offline are kept on the map with a dashed marker and a "last seen" timestamp for up to 7 days
• Dark / light theme and Slovenian / English UI toggle, both persisted in localStorage
• Mobile-first layout — full-screen map on desktop, bottom-sheet panel on mobile, iOS Safari tested

Data Sources

Source	Coverage	Auth
ARSO	Official Slovenian reference monitors (PM2.5, PM10, NO₂, O₃, SO₂, CO)	None
Sensor.Community	Crowdsourced low-cost sensors across Slovenia	None
OpenSenseMap	Citizen science sensor network	None
PurpleAir	Dual-channel Plantower sensors, Slovenia bbox	API key
AQICN	Multi-pollutant AQI including cross-border AT/HR stations	API key
OpenAQ	Additional Slovenian low-cost sensors (PM2.5, PM1, NO₂, O₃, temperature, humidity) not covered by other sources; deduplicated by proximity	API key

Tech Stack

Layer	Technology
Backend	Python 3 / Flask
Storage	SQLite (tall schema: bucket × station × param)
Map	Leaflet.js + CartoDB tiles (light & dark)
Clustering	Leaflet.markercluster
Charts	Chart.js 4
CAMS model	Open-Meteo CAMS API (ECMWF) — free, no key required
Server	Nginx → Flask on any Ubuntu VPS
TLS	Let's Encrypt via Certbot

Project Structure

airq_app.py          # Flask app — data collectors, SQLite, API routes
templates/
  index.html         # Single-page HTML shell
static/
  css/style.css      # Responsive layout, theming, marker & panel styles
  js/map.js          # Leaflet map, markers, panel, Chart.js sparklines
requirements.txt     # Python dependencies
tokens.txt.example   # API key template (copy to tokens.txt and fill in)

Running Locally

# 1. Clone
git clone git@github.com:kesma01/airq.git
cd airq

# 2. Python environment
python3 -m venv venv
source venv/bin/activate
pip install -r requirements.txt

# 3. API keys
cp tokens.txt.example tokens.txt
# Edit tokens.txt and add your keys (AQICN and PurpleAir are optional)

# 4. Run
python3 airq_app.py
# Open http://localhost:8060

The background collector runs immediately on startup and then every 15 minutes aligned to UTC boundaries. History accumulates in airq_data.db (created automatically).

Deploying

Any Ubuntu 22.04/24.04 VPS with root SSH access works. Point your domain at the server IP before running Certbot.

1 — Deploy the app

SSH into the server and run the following once:

# Install system packages
apt-get update && apt-get install -y python3 python3-pip python3-venv nginx certbot python3-certbot-nginx

# Copy the app
mkdir -p /opt/airq
cd /opt/airq
git clone https://github.com/kesma01/airq.git .

# API keys
cp tokens.txt.example tokens.txt
nano tokens.txt   # fill in your keys

# Python environment
python3 -m venv venv
venv/bin/pip install --upgrade pip
venv/bin/pip install -r requirements.txt

2 — systemd service

Create /etc/systemd/system/airq.service:

[Unit]
Description=AIRQ Air Quality Map
After=network.target

[Service]
User=www-data
WorkingDirectory=/opt/airq
ExecStart=/opt/airq/venv/bin/python3 airq_app.py
Restart=always
RestartSec=5
Environment=PYTHONUNBUFFERED=1

[Install]
WantedBy=multi-user.target

chown -R www-data:www-data /opt/airq
systemctl daemon-reload
systemctl enable --now airq
systemctl status airq

3 — Nginx reverse proxy

Create /etc/nginx/sites-available/airq:

server {
    listen 80;
    listen [::]:80;
    server_name your.domain.com;

    # Serve static files directly — bypass Flask for speed
    location /static/ {
        alias /opt/airq/static/;
        add_header Cache-Control "public, max-age=120, must-revalidate";
    }

    # API must never be cached
    location /api/ {
        proxy_pass http://127.0.0.1:8060;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        add_header Cache-Control "no-store";
    }

    # HTML — no-store so Cloudflare never serves a stale page
    location / {
        proxy_pass http://127.0.0.1:8060;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_read_timeout 30s;
        add_header Cache-Control "no-store, no-cache, must-revalidate";
    }
}

ln -s /etc/nginx/sites-available/airq /etc/nginx/sites-enabled/airq
nginx -t && systemctl reload nginx

4 — TLS with Let's Encrypt

certbot --nginx -d your.domain.com --non-interactive --agree-tos -m you@example.com
systemctl reload nginx

Certbot auto-renews via a systemd timer — no cron job needed.

Updating

cd /opt/airq
git pull
systemctl restart airq

API

Endpoint	Description
GET /api/stations	All stations with current AQI, readings, stale flag
GET /api/history/<id>?param=PM2.5	24-hour 15-min buckets for any param
GET /api/cams	0.25° CAMS grid over Slovenia (105 points, 1-hour cache)
GET /api/cams/history?lat=&lon=	24-hour hourly CAMS data for one grid point — all 5 EAQI params
GET /api/status	Collector timestamp and next-run countdown

EU Air Quality Index (EAQI)

Colours and index levels follow the European Air Quality Index standard. PM2.5 and PM10 are evaluated on a 24-hour running mean; O₃, NO₂ and SO₂ use the latest hourly value.

Level	Label	PM2.5 (µg/m³)	PM10 (µg/m³)	O₃ (µg/m³)	NO₂ (µg/m³)	SO₂ (µg/m³)
1 🟢	Very Good	0–10	0–20	0–50	0–40	0–100
2 🟩	Good	10–20	20–40	50–100	40–90	100–200
3 🟡	Medium	20–25	40–50	100–130	90–120	200–350
4 🟠	Poor	25–50	50–100	130–240	120–230	350–500
5 🔴	Very Poor	50–75	100–150	240–380	230–340	500–750
6 ⬛	Extremely Poor	> 75	> 150	> 380	> 340	> 750

The overall index for a station is the worst level across all available pollutants.

License

MIT — free to use, fork, and adapt. Attribution appreciated.
