COS-Tools and Andras Tantos’s Cray Simulator Question #2

nobunagashino · 2023-04-07T14:34:22Z

nobunagashino
Apr 7, 2023

Hi,
I have been experimenting (1) with COS-Tools and Andras Tantos’s Cray Simulator and think I have
Found a few problems with the CAL assembler and maybe the link loader.
(1) The hello.sh causes the cal program to hang immediately taking almost 100% of the cpu and producing no output.
(2) I have a small test program,test.cal which assembles and links without any errors. Once I try to run it in batch or interactive mode (2) an “invalid program load table” error is reported and the program aborts.

So to be honest I don’t know if I am doing something stupid or there really is a problem with the cal/ldr programs. Any Advice/hints/tips welcome.
To assist I will try to upload the following files.
Test.txt --the assembler source of my tiny test program.

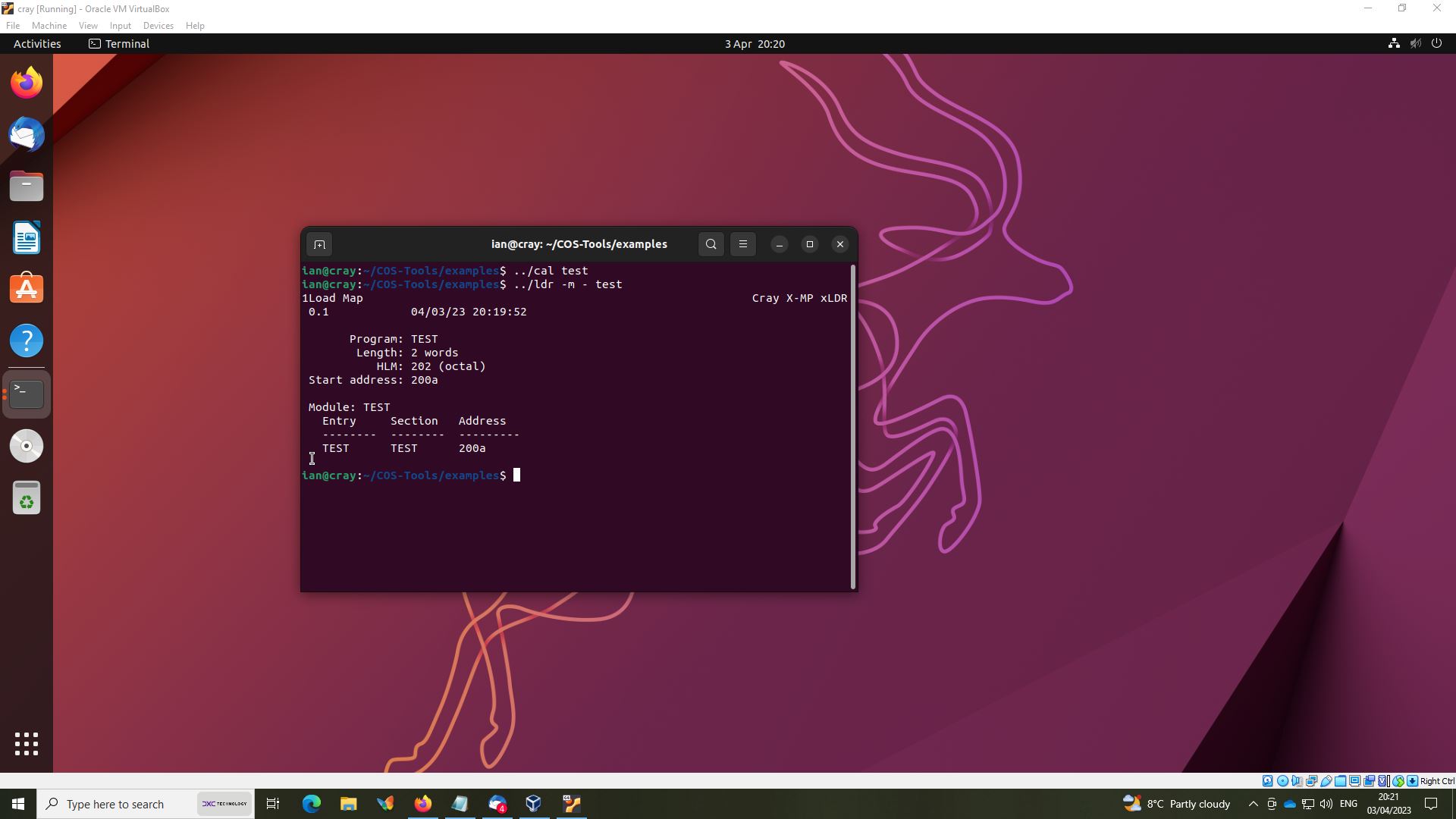

Cray-assembly.jpg shows the assembler command line and the ldr output.

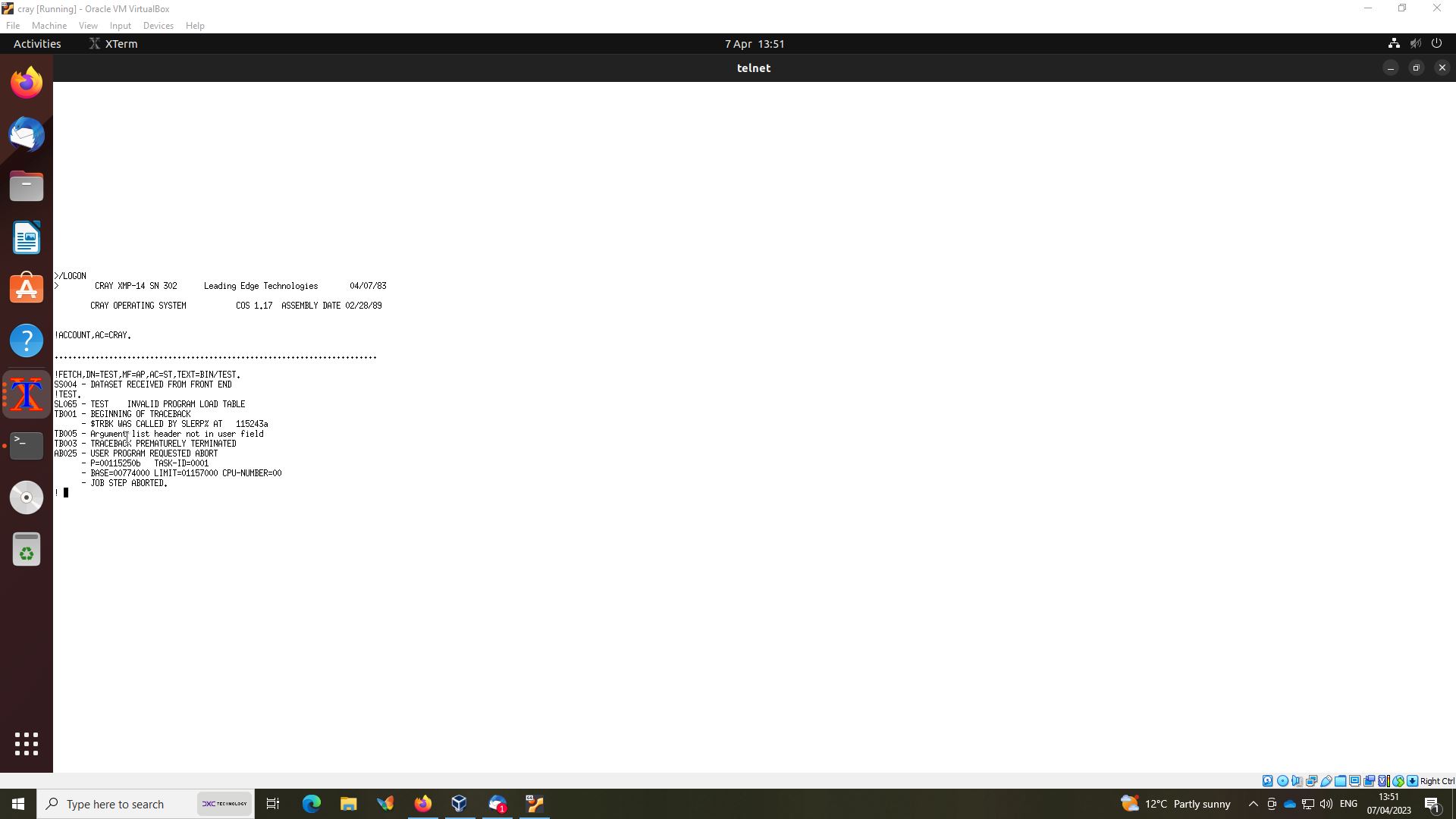

Cray-run-result.jpg shows the error output from an interactive job. A Batch job produces the same error.
(1) Feels a bit like blundering around in the dark-I have never used a mainframe style computer so quite a learning curve. Fun though..
(2) I use the build_exp_disk script to load the executable on the virtual disk which can then be fetched into the CPU.
(3) You might ask why I am bothering with this? As a child of the late 1960’s CRAY computers have held something of a special spot(4). So now that I can finally get my paws on one I really want to write a program to run 2+2 and print the result.. I would also suspect ,on a more serious note, that there are computer science students out there who find this of interest. Might be an interesting way to learn assembly code.
(4) Personally, I have only seen CRAY computers in the science museum-my late father once worked on one which was in Wythenshawe Manchester owned by SHELL.

test.txt

kej715 · 2023-04-08T03:26:10Z

kej715
Apr 8, 2023
Maintainer

Thanks for reporting the problem with hello.sh. Code has been pushed to resolve the issue.

Please provide a copy of your test program. Code produced by cal and ldr has been tested successfully in an environment where DtCyber serves as a frontend to COS 1.17. Binaries produced by ldr can be uploaded to DtCyber running NOS 2.8.7, then transmitted to COS 1.17 using the Cray Station interface. This preserves the Cray file structure created by ldr, and the binaries load and run successfully. I suspect that build_exp_disk does not preserve the file structure properly. For example, perhaps it wraps it unnecessarily in a second layer of file structure.

If you provide a copy of your test program, I can try running it using the Cray Station interface.

0 replies

kej715 · 2023-04-08T12:59:09Z

kej715
Apr 8, 2023
Maintainer

I had overlooked the attachment of your test program earlier. After seeing it, I assembled and loaded it and then uploaded the executable to host NCCMAX, a CDC Cyber 865 at the Nostalgic Computing Center (http://www.nostalgiccomputing.org). NCCMAX is connected via a Cray Station interface to a Cray X-MP running COS 1.17. The test program loaded successfully and ran, but it aborted because it does not include an operating system call to terminate gracefully. Consequently, an illegal instruction is encountered after the "S2 S2+S3" instruction at the end of the program. When I modified the program to add a call to the "ADV" macro after "S2 S2+S3", the program ran to completion and exited normally. The "ADV" macro executes an OS call to advance to the next job step, i.e., the usual way that a COS program signals normal completion.

Here is the job output after adding the ADV macro:

  06:59:37.5975       0.0007    CSP             CRAY XMP-14 SN 302      LEADING EDGE TECHNOLOGIES       04/08/83
  06:59:37.6004       0.0008    CSP
  06:59:37.6039       0.0009    CSP             CRAY OPERATING SYSTEM           COS 1.17  ASSEMBLY DATE 02/28/89
  06:59:37.6081       0.0010    CSP
  06:59:37.6107       0.0011    CSP
  06:59:37.6371       0.0013    CSP     JOB,JN=CRAYRUN.
  06:59:37.7423       0.0105    CSP     ACCOUNT,AC=,APW=,UPW=.
  06:59:37.7465       0.0110    CSP
  06:59:37.7493       0.0111    CSP     .......................................................................
  06:59:37.7522       0.0112    CSP
  06:59:37.7923       0.0123    CSP     ECHO,ON=ALL.
  06:59:37.8026       0.0130    CSP     OPTION,STAT=ON.
  06:59:37.8171       0.0160    CSP     FETCH,DN=BIN,MF=FE,DF=TR,^
  06:59:37.8239       0.0190    CSP     TEXT=.
  06:59:42.2974       0.0193    SCP     AAHR 08.36.26.USER,Z160000,.
  06:59:42.2994       0.0193    SCP     AAHR 08.36.26.CHARGE,   *                  ,
  06:59:42.3013       0.0193    SCP     AAHR 08.36.29. TRO - PF AND TAPE TRANSPARENT OUTPUT.
  06:59:42.3033       0.0193    SCP     AAHR 08.36.30.TRO: DATASET BIN    ,         63B WORDS,     0.277
  06:59:42.6143       0.0193    SCP     SS004 - DATASET RECEIVED FROM FRONT END
  06:59:43.9493       0.0210    CSP     BIN.
  06:59:43.9828       0.0216    CSP     END OF JOB
  06:59:43.9877       0.0219    EXP     SY005 - BIN           512 WRDS,    1 IOS,      1 REQ,       1 STRS,     .019 SEC
  06:59:43.9901       0.0219    EXP           - 29-1-32A       18 STRS   READ:         1 REQ,       1 STRS,     .021 SEC
  06:59:43.9997       0.0220    CSP
  06:59:44.0022       0.0221    CSP
  06:59:44.0068       0.0224    CSP     CHARGES
  06:59:44.0145       0.0225    CSP     CS032 - DATASET NOT LOCAL:
  06:59:44.0182       0.0226    ABORT   AB025 - USER PROGRAM REQUESTED ABORT
  06:59:44.0204       0.0226    ABORT         - P=00001417B   TASK-ID=0001
  06:59:44.0228       0.0226    ABORT         - BASE=00775000 LIMIT=01153000 CPU-NUMBER=00
  06:59:44.0250       0.0226    ABORT         - JOB STEP ABORTED.

Here is the NOS procedure file used for executing the COS executable. The executable is uploaded to the NOS host in binary mode using Kermit:

.PROC,CRAYRUN,F=CRAYBIN.
REWIND,F.
COPYBF,F,ZZZCBIN.
REPLACE,ZZZCBIN=CSTAGE.
CSUBMIT,CRAYJOB,TO.
REVERT,NOLIST.
.DATA,CRAYJOB.
JOB,JN=CRAYRUN.
ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR.
ECHO,ON=ALL.
OPTION,STAT=ON.
FETCH,DN=BIN,MF=FE,DF=TR,^
TEXT='USER,nosuser,nospass,BIN=CSTAGE.CTASK.'.
BIN.

Here is the source code of the version of test.txt that ran to completion successfully:

         TITLE     'TEST'
         SUBTITLE  'TEST'
         IDENT     TEST
         COMMENT   'TEST'
         ENTRY     TEST
         EXT       ADV
         START     TEST
TEST     S1        =*
         S2        S2+S3           ; CLASS=1, OR=1, FC=3
         R         ADV             ; advance to next job step

         END

0 replies

nobunagashino · 2023-04-09T10:49:09Z

nobunagashino
Apr 9, 2023
Author

Hi Kevin, Thanks once again for looking at this-delighted it worked. On my end I have DtCyber compiled,NOS2.8.7 up and working and a test site.cfg to connect to Tanto's simulator. Going to take a day or two looking at the manual and docs on bitsavers-it's quite a learning curve! Best wishes, Ian

…

On 08/04/2023 13:59, Kevin Jordan wrote: I had overlooked the attachment of your test program earlier. After seeing it, I assembled and loaded it and then uploaded the executable to host NCCMAX, a CDC Cyber 865 at the Nostalgic Computing Center (http://www.nostalgiccomputing.org). NCCMAX is connected via a Cray Station interface to a Cray X-MP running COS 1.17. The test program loaded successfully and ran, but it aborted because it does not include an operating system call to terminate gracefully. Consequently, an illegal instruction is encountered after the "S2 S2+S3" instruction at the end of the program. When I modified the program to add a call to the "ADV" macro after "S2 S2+S3", the program ran to completion and exited normally. The "ADV" macro executes an OS call to advance to the next job step, i.e., the usual way that a COS program signals normal completion. Here is the job output after adding the ADV macro: |06:59:37.5975 0.0007 CSP CRAY XMP-14 SN 302 LEADING EDGE TECHNOLOGIES 04/08/83 06:59:37.6004 0.0008 CSP 06:59:37.6039 0.0009 CSP CRAY OPERATING SYSTEM COS 1.17 ASSEMBLY DATE 02/28/89 06:59:37.6081 0.0010 CSP 06:59:37.6107 0.0011 CSP 06:59:37.6371 0.0013 CSP JOB,JN=CRAYRUN. 06:59:37.7423 0.0105 CSP ACCOUNT,AC=,APW=,UPW=. 06:59:37.7465 0.0110 CSP 06:59:37.7493 0.0111 CSP ....................................................................... 06:59:37.7522 0.0112 CSP 06:59:37.7923 0.0123 CSP ECHO,ON=ALL. 06:59:37.8026 0.0130 CSP OPTION,STAT=ON. 06:59:37.8171 0.0160 CSP FETCH,DN=BIN,MF=FE,DF=TR,^ 06:59:37.8239 0.0190 CSP TEXT=. 06:59:42.2974 0.0193 SCP AAHR 08.36.26.USER,Z160000,. 06:59:42.2994 0.0193 SCP AAHR 08.36.26.CHARGE, * , 06:59:42.3013 0.0193 SCP AAHR 08.36.29. TRO - PF AND TAPE TRANSPARENT OUTPUT. 06:59:42.3033 0.0193 SCP AAHR 08.36.30.TRO: DATASET BIN , 63B WORDS, 0.277 06:59:42.6143 0.0193 SCP SS004 - DATASET RECEIVED FROM FRONT END 06:59:43.9493 0.0210 CSP BIN. 06:59:43.9828 0.0216 CSP END OF JOB 06:59:43.9877 0.0219 EXP SY005 - BIN 512 WRDS, 1 IOS, 1 REQ, 1 STRS, .019 SEC 06:59:43.9901 0.0219 EXP - 29-1-32A 18 STRS READ: 1 REQ, 1 STRS, .021 SEC 06:59:43.9997 0.0220 CSP 06:59:44.0022 0.0221 CSP 06:59:44.0068 0.0224 CSP CHARGES 06:59:44.0145 0.0225 CSP CS032 - DATASET NOT LOCAL: 06:59:44.0182 0.0226 ABORT AB025 - USER PROGRAM REQUESTED ABORT 06:59:44.0204 0.0226 ABORT - P=00001417B TASK-ID=0001 06:59:44.0228 0.0226 ABORT - BASE=00775000 LIMIT=01153000 CPU-NUMBER=00 06:59:44.0250 0.0226 ABORT - JOB STEP ABORTED. | Here is the NOS procedure file used for executing the COS executable. The executable is uploaded to the NOS host in binary mode using Kermit: |.PROC,CRAYRUN,F=CRAYBIN. REWIND,F. COPYBF,F,ZZZCBIN. REPLACE,ZZZCBIN=CSTAGE. CSUBMIT,CRAYJOB,TO. REVERT,NOLIST. .DATA,CRAYJOB. JOB,JN=CRAYRUN. ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR. ECHO,ON=ALL. OPTION,STAT=ON. FETCH,DN=BIN,MF=FE,DF=TR,^ TEXT='USER,nosuser,nospass,BIN=CSTAGE.CTASK.'. BIN. | Here is the source code of the version of test.txt that ran to completion successfully: |TITLE 'TEST' SUBTITLE 'TEST' IDENT TEST COMMENT 'TEST' ENTRY TEST EXT ADV START TEST TEST S1 =* S2 S2+S3 ; CLASS=1, OR=1, FC=3 R ADV ; advance to next job step END | — Reply to this email directly, view it on GitHub <#2 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AK7IQO7WURV2PJHZCD53KSTXAFOKPANCNFSM6AAAAAAWWUAZJE>. You are receiving this because you authored the thread.Message ID: ***@***.***>

2 replies

kej715 Apr 9, 2023
Maintainer

Hi Ian,

It's great to read that you've installed DtCyber with NOS 2.8.7 and are planning to use it as a frontend to your Cray X-MP running COS 1.17. FYI ... the simplest site.cfg for enabling the Cray Station interface would look like:

[NETWORK]
crayStation=MyXMP,XMP,127.0.0.1:9000

This assumes that your X-MP is running on the same host machine as DtCyber. Port 9000 is the default port used by the Cray Station FEI on the X-MP side, so there should be no need to modify the config file for Tantos' emulator. Similarly, "FE" is the default frontend identifier expected by COS 1.17, and "C1" is the default Cray mainframe identifier. So, if you've run the "reconfigure" tool to enable and activate the Cray Station interface on the DtCyber side, the two machines should connect automatically to each other after deadstarting both. Nothing special needs to be done on the Cray side other than executing the STATION command to activate the station interface, which is a normal part of starting COS 1.17 according to Tantos' wiki.

On the NOS 2.8.7 side, CSUBMIT is the command for submitting jobs to the Cray X-MP. The CCL procedure CRAYRUN given above, and repeated here, can be saved in your GUEST and/or INSTALL account. It uses CSUBMIT to submit a job to COS that fetches an executable saved on the NOS side and then runs it. The executable can be produced by the cal and ldr tools and uploaded to NOS using Kermit or FTP. Make sure to use binary mode when using these tools to upload an executable produced by ldr.

CRAYRUN specifies the TO parameter when it calls CSUBMIT. This causes the output of the COS job to be returned to the wait queue on NOS. You can use the STATUS,JSN command on NOS to wait for the output to arrive, and you can use the QGET command to retrieve it from the queue when it does arrive.

.PROC,CRAYRUN,F=CRAYBIN.
REWIND,F.
COPYBF,F,ZZZCBIN.
REPLACE,ZZZCBIN=CSTAGE.
CSUBMIT,CRAYJOB,TO.
REVERT,NOLIST.
.DATA,CRAYJOB.
JOB,JN=CRAYRUN.
ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR.
ECHO,ON=ALL.
OPTION,STAT=ON.
FETCH,DN=BIN,MF=FE,DF=TR,^
TEXT='USER,GUEST,GUEST,BIN=CSTAGE.CTASK.'.
BIN.

Replace username and password GUEST, above, with INSTALL if you upload executables to the INSTALL account instead of the GUEST one.

Assuming that you've SAVEd CRAYRUN on GUEST or INSTALL, and that you've used FTP to upload a COS executable named HELLO, you would run the executable using the following commands:

GET,CRAYRUN  (only needs to be executed once after login)
GET,HELLO
CRAYRUN,F=HELLO

then use STATUS,JSN to monitor the queues, and when output from the COS job arrives in the WAIT queue, use QGET,jsn to retrieve it. You can then use LIST,F=jsn to view it, or ROUTE,jsn,DC=PR to send it to the line printer.

cheers,
Kevin

kej715 Apr 9, 2023
Maintainer

P.S.: The Cray Station subsystem on NOS 2.8.7 includes the ICF network application (Interactive Cray Facility). This allows you to log into COS interactively from NOS. To use it, log into NOS, then execute the command HELLO,ICF. This will disconnect your terminal from the NOS interactive facility (IAF) and connect it to the Cray Interactive Facility (ICF). You can then interact with COS in the same way that you would use interactive mode according to Tantos' "Cray Files" discussion.

nobunagashino · 2023-04-09T16:55:04Z

nobunagashino
Apr 9, 2023
Author

Hi Kevin, Thanks for the mails-I have the two emulators talking together (on the DtCyber console on the B,A side I see a line for crs and it is reporting cray cos 1.17 02/28/89).On the cray side the Link command shows a connection with the FE id.So all looks happy. However..... when I run /HELLO,ICF I get an application not present as per the screenshot. Running /LIMITS shows that ICF is a valid applicaion for the guest user.Using the INSTALL user also produces an "invalid application" message. When I use help to produce a list of commands ICF is not listed... Anyway,will try a batch job as see what happens and have a look in the docs to see if there is any clue as to why ICF appears to be missing. Once again I really appreciate your help and time. Best wishes, Ian

…

On 09/04/2023 13:58, Kevin Jordan wrote: P.S.: The Cray Station subsystem on NOS 2.8.7 includes the |ICF| network application (Interactive Cray Facility). This allows you to log into COS interactively from NOS. To use it, log into NOS, then execute the command |HELLO,ICF|. This will disconnect your terminal from the NOS interactive facility (IAF) and connect it to the Cray Interactive Facility (ICF). You can then interact with COS in the same way that you would use interactive mode according to Tantos' "Cray Files" discussion. — Reply to this email directly, view it on GitHub <#2 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AK7IQOZKC35ZEUTVHYBJBUDXAKW5ZANCNFSM6AAAAAAWWUAZJE>. You are receiving this because you authored the thread.Message ID: ***@***.***>

0 replies

nickglazzard1959 · 2023-05-02T12:02:32Z

nickglazzard1959
May 2, 2023

Hi folks,
I found I needed a slight variation of the CRAYRUN CCL for it to work. This seems to do things for me:

.PROC,CRF,F=CRAYBIN.
REWIND,F.
COPYBF,F,ZZZCBIN.
REPLACE,ZZZCBIN=CSTAGE.
CSUBMIT,CRAYJOB,TO.
REVERT,NOLIST.
.DATA,CRAYJOB.
JOB,JN=CRAYRUN.
ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR.
ECHO,ON=ALL.
OPTION,STAT=ON.
FETCH,DN=BIN,MF=FE,DF=TR,^
TEXT='USER,nosuser,nospw.GET,BIN=CSTAGE.CTASK.'.
BIN.

Note the full stop (period) after the NOS password and the addition of GET to get the file to be local. With this, I get the following output on my 865/XMP system:

  18:47:04.6753       0.0002    CSP             CRAY XMP-14 SN 302      LEADING EDGE TECHNOLOGIES       05/02/83
  18:47:04.6763       0.0002    CSP
  18:47:04.6774       0.0003    CSP             CRAY OPERATING SYSTEM           COS 1.17  ASSEMBLY DATE 02/28/89
  18:47:04.6784       0.0004    CSP
  18:47:04.6792       0.0004    CSP
  18:47:04.6885       0.0005    CSP     JOB,JN=CRAYRUN.
  18:47:04.7184       0.0036    CSP     ACCOUNT,AC=,APW=,UPW=.
  18:47:04.7197       0.0038    CSP
  18:47:04.7206       0.0038    CSP     .......................................................................
  18:47:04.7216       0.0039    CSP
  18:47:04.7312       0.0043    CSP     ECHO,ON=ALL.
  18:47:04.7343       0.0046    CSP     OPTION,STAT=ON.
  18:47:04.7388       0.0056    CSP     FETCH,DN=BIN,MF=FE,DF=TR,^
  18:47:04.7408       0.0065    CSP     TEXT=.
  18:47:09.7228       0.0066    SCP     AAHZ 18.48.28.USER,NICK,.
  18:47:09.7238       0.0066    SCP     AAHZ 18.48.28.CHARGE,   *                  ,
  18:47:09.7248       0.0066    SCP     AAHZ 18.48.31. TRO - PF AND TAPE TRANSPARENT OUTPUT.
  18:47:09.7259       0.0066    SCP     AAHZ 18.48.31.TRO: DATASET BIN    ,         71B WORDS,     0.148
  18:47:09.9985       0.0066    SCP     SS004 - DATASET RECEIVED FROM FRONT END
  18:47:10.9748       0.0072    CSP     BIN.
  18:47:10.9793       0.0073    USER    HELLO WORLD!
  18:47:10.9870       0.0075    CSP     END OF JOB
  18:47:10.9886       0.0076    EXP     SY005 - BIN           512 WRDS,    1 IOS,      1 REQ,       1 STRS,     .007 SEC
  18:47:10.9895       0.0076    EXP           - 29-1-22A       18 STRS   READ:         1 REQ,       1 STRS,     .008 SEC
  18:47:10.9923       0.0076    CSP
  18:47:10.9932       0.0076    CSP
  18:47:10.9947       0.0077    CSP     CHARGES
  18:47:10.9961       0.0077    CSP     CS032 - DATASET NOT LOCAL:
  18:47:10.9972       0.0078    ABORT   AB025 - USER PROGRAM REQUESTED ABORT
  18:47:10.9980       0.0078    ABORT         - P=00001417B   TASK-ID=0001
  18:47:10.9988       0.0078    ABORT         - BASE=00775000 LIMIT=01153000 CPU-NUMBER=00
  18:47:10.9996       0.0078    ABORT         - JOB STEP ABORTED.

Not sure why there is an abort at the end. Some program COS expects that has sadly been lost?

0 replies

kej715 · 2023-05-02T12:34:52Z

kej715
May 2, 2023
Maintainer

Hi Nick, Yes, the abort at the end is due to a missing program that would normally perform accounting at end of job. cheers, Kevin

…

On Tue, May 2, 2023 at 8:02 AM Nick Glazzard ***@***.***> wrote: Hi folks, I found I needed a slight variation of the CRAYRUN CCL for it to work. This seems to do things for me: .PROC,CRF,F=CRAYBIN. REWIND,F. COPYBF,F,ZZZCBIN. REPLACE,ZZZCBIN=CSTAGE. CSUBMIT,CRAYJOB,TO. REVERT,NOLIST. .DATA,CRAYJOB. JOB,JN=CRAYRUN. ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR. ECHO,ON=ALL. OPTION,STAT=ON. FETCH,DN=BIN,MF=FE,DF=TR,^ TEXT='USER,nosuser,nospw.GET,BIN=CSTAGE.CTASK.'. BIN. Note the full stop (period) after the NOS password and the addition of GET to get the file to be local. With this, I get the following output on my 865/XMP system: 18:47:04.6753 0.0002 CSP CRAY XMP-14 SN 302 LEADING EDGE TECHNOLOGIES 05/02/83 18:47:04.6763 0.0002 CSP 18:47:04.6774 0.0003 CSP CRAY OPERATING SYSTEM COS 1.17 ASSEMBLY DATE 02/28/89 18:47:04.6784 0.0004 CSP 18:47:04.6792 0.0004 CSP 18:47:04.6885 0.0005 CSP JOB,JN=CRAYRUN. 18:47:04.7184 0.0036 CSP ACCOUNT,AC=,APW=,UPW=. 18:47:04.7197 0.0038 CSP 18:47:04.7206 0.0038 CSP ....................................................................... 18:47:04.7216 0.0039 CSP 18:47:04.7312 0.0043 CSP ECHO,ON=ALL. 18:47:04.7343 0.0046 CSP OPTION,STAT=ON. 18:47:04.7388 0.0056 CSP FETCH,DN=BIN,MF=FE,DF=TR,^ 18:47:04.7408 0.0065 CSP TEXT=. 18:47:09.7228 0.0066 SCP AAHZ 18.48.28.USER,NICK,. 18:47:09.7238 0.0066 SCP AAHZ 18.48.28.CHARGE, * , 18:47:09.7248 0.0066 SCP AAHZ 18.48.31. TRO - PF AND TAPE TRANSPARENT OUTPUT. 18:47:09.7259 0.0066 SCP AAHZ 18.48.31.TRO: DATASET BIN , 71B WORDS, 0.148 18:47:09.9985 0.0066 SCP SS004 - DATASET RECEIVED FROM FRONT END 18:47:10.9748 0.0072 CSP BIN. 18:47:10.9793 0.0073 USER HELLO WORLD! 18:47:10.9870 0.0075 CSP END OF JOB 18:47:10.9886 0.0076 EXP SY005 - BIN 512 WRDS, 1 IOS, 1 REQ, 1 STRS, .007 SEC 18:47:10.9895 0.0076 EXP - 29-1-22A 18 STRS READ: 1 REQ, 1 STRS, .008 SEC 18:47:10.9923 0.0076 CSP 18:47:10.9932 0.0076 CSP 18:47:10.9947 0.0077 CSP CHARGES 18:47:10.9961 0.0077 CSP CS032 - DATASET NOT LOCAL: 18:47:10.9972 0.0078 ABORT AB025 - USER PROGRAM REQUESTED ABORT 18:47:10.9980 0.0078 ABORT - P=00001417B TASK-ID=0001 18:47:10.9988 0.0078 ABORT - BASE=00775000 LIMIT=01153000 CPU-NUMBER=00 18:47:10.9996 0.0078 ABORT - JOB STEP ABORTED. Not sure why there is an abort at the end. Some program COS expects that has sadly been lost? — Reply to this email directly, view it on GitHub <#2 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AABALGUU27A67SBPZDZDQJ3XEDZWHANCNFSM6AAAAAAWWUAZJE> . You are receiving this because you commented.Message ID: ***@***.***>

0 replies

kej715 · 2023-05-02T12:43:55Z

kej715
May 2, 2023
Maintainer

... and thanks for pointing out the text (".GET,") that was somehow dropped from the CRAYRUN procedure example.

…

On Tue, May 2, 2023 at 8:34 AM Kevin Jordan ***@***.***> wrote: Hi Nick, Yes, the abort at the end is due to a missing program that would normally perform accounting at end of job. cheers, Kevin On Tue, May 2, 2023 at 8:02 AM Nick Glazzard ***@***.***> wrote: > Hi folks, > I found I needed a slight variation of the CRAYRUN CCL for it to work. > This seems to do things for me: > > .PROC,CRF,F=CRAYBIN. > REWIND,F. > COPYBF,F,ZZZCBIN. > REPLACE,ZZZCBIN=CSTAGE. > CSUBMIT,CRAYJOB,TO. > REVERT,NOLIST. > .DATA,CRAYJOB. > JOB,JN=CRAYRUN. > ACCOUNT,AC=CRAY,APW=XYZZY,UPW=QUASAR. > ECHO,ON=ALL. > OPTION,STAT=ON. > FETCH,DN=BIN,MF=FE,DF=TR,^ > TEXT='USER,nosuser,nospw.GET,BIN=CSTAGE.CTASK.'. > BIN. > > Note the full stop (period) after the NOS password and the addition of > GET to get the file to be local. With this, I get the following output on > my 865/XMP system: > > 18:47:04.6753 0.0002 CSP CRAY XMP-14 SN 302 LEADING EDGE TECHNOLOGIES 05/02/83 > 18:47:04.6763 0.0002 CSP > 18:47:04.6774 0.0003 CSP CRAY OPERATING SYSTEM COS 1.17 ASSEMBLY DATE 02/28/89 > 18:47:04.6784 0.0004 CSP > 18:47:04.6792 0.0004 CSP > 18:47:04.6885 0.0005 CSP JOB,JN=CRAYRUN. > 18:47:04.7184 0.0036 CSP ACCOUNT,AC=,APW=,UPW=. > 18:47:04.7197 0.0038 CSP > 18:47:04.7206 0.0038 CSP ....................................................................... > 18:47:04.7216 0.0039 CSP > 18:47:04.7312 0.0043 CSP ECHO,ON=ALL. > 18:47:04.7343 0.0046 CSP OPTION,STAT=ON. > 18:47:04.7388 0.0056 CSP FETCH,DN=BIN,MF=FE,DF=TR,^ > 18:47:04.7408 0.0065 CSP TEXT=. > 18:47:09.7228 0.0066 SCP AAHZ 18.48.28.USER,NICK,. > 18:47:09.7238 0.0066 SCP AAHZ 18.48.28.CHARGE, * , > 18:47:09.7248 0.0066 SCP AAHZ 18.48.31. TRO - PF AND TAPE TRANSPARENT OUTPUT. > 18:47:09.7259 0.0066 SCP AAHZ 18.48.31.TRO: DATASET BIN , 71B WORDS, 0.148 > 18:47:09.9985 0.0066 SCP SS004 - DATASET RECEIVED FROM FRONT END > 18:47:10.9748 0.0072 CSP BIN. > 18:47:10.9793 0.0073 USER HELLO WORLD! > 18:47:10.9870 0.0075 CSP END OF JOB > 18:47:10.9886 0.0076 EXP SY005 - BIN 512 WRDS, 1 IOS, 1 REQ, 1 STRS, .007 SEC > 18:47:10.9895 0.0076 EXP - 29-1-22A 18 STRS READ: 1 REQ, 1 STRS, .008 SEC > 18:47:10.9923 0.0076 CSP > 18:47:10.9932 0.0076 CSP > 18:47:10.9947 0.0077 CSP CHARGES > 18:47:10.9961 0.0077 CSP CS032 - DATASET NOT LOCAL: > 18:47:10.9972 0.0078 ABORT AB025 - USER PROGRAM REQUESTED ABORT > 18:47:10.9980 0.0078 ABORT - P=00001417B TASK-ID=0001 > 18:47:10.9988 0.0078 ABORT - BASE=00775000 LIMIT=01153000 CPU-NUMBER=00 > 18:47:10.9996 0.0078 ABORT - JOB STEP ABORTED. > > Not sure why there is an abort at the end. Some program COS expects that > has sadly been lost? > > — > Reply to this email directly, view it on GitHub > <#2 (comment)>, > or unsubscribe > <https://github.com/notifications/unsubscribe-auth/AABALGUU27A67SBPZDZDQJ3XEDZWHANCNFSM6AAAAAAWWUAZJE> > . > You are receiving this because you commented.Message ID: > ***@***.***> >

0 replies

kej715 · 2023-05-04T17:09:57Z

kej715
May 4, 2023
Maintainer

Thanks to investigation by Nick Glazzard, the reason that ICF was missing has been determined, and code has been pushed to the DtCyber repository to resolve the problem. The problem was due to a "leftover" IF statement in the ICF startup job (leftover from usage in another context). The IF statement allowed ICF to be started only if it would be running on a host with machine ID "AX" or "ED". If you execute "git pull" against your copy of the DtCyber repo and then reinstall NOS 2.8.7, the problem should be resolved. You can also fix the problem in your already installed system by editing the NAMSTRT file under username NETOPS. The very last record in the file is the ICF startup job. Remove the "IF" statement that tests for HID being either "AX" or "ED", and then save the file. For example, log into username INSTALL, and then execute this sequence of commands: GET,NAMSTRT/UN=NETOPS SCREEN,WEBTRM FSE,NAMSTRT locate the IF statement near the end of the file and remove it and its corresponding ENDIF statement then exit from FSE REPLACE,NAMSTRT/UN=NETOPS Then execute the following command from DSD (i.e., the NOS console) to start ICF: X.NAMI(RS=IC) cheers, Kevin On Sun, Apr 9, 2023 at 12:55 PM nobunagashino ***@***.***> wrote:

…

Hi Kevin, Thanks for the mails-I have the two emulators talking together (on the DtCyber console on the B,A side I see a line for crs and it is reporting cray cos 1.17 02/28/89).On the cray side the Link command shows a connection with the FE id.So all looks happy. However..... when I run /HELLO,ICF I get an application not present as per the screenshot. Running /LIMITS shows that ICF is a valid applicaion for the guest user.Using the INSTALL user also produces an "invalid application" message. When I use help to produce a list of commands ICF is not listed... Anyway,will try a batch job as see what happens and have a look in the docs to see if there is any clue as to why ICF appears to be missing. Once again I really appreciate your help and time. Best wishes, Ian On 09/04/2023 13:58, Kevin Jordan wrote: > > P.S.: The Cray Station subsystem on NOS 2.8.7 includes the |ICF| > network application (Interactive Cray Facility). This allows you to > log into COS interactively from NOS. To use it, log into NOS, then > execute the command |HELLO,ICF|. This will disconnect your terminal > from the NOS interactive facility (IAF) and connect it to the Cray > Interactive Facility (ICF). You can then interact with COS in the same > way that you would use interactive mode according to Tantos' "Cray > Files" discussion. > > — > Reply to this email directly, view it on GitHub > < #2 (reply in thread)>, > or unsubscribe > < https://github.com/notifications/unsubscribe-auth/AK7IQOZKC35ZEUTVHYBJBUDXAKW5ZANCNFSM6AAAAAAWWUAZJE >. > You are receiving this because you authored the thread.Message ID: > ***@***.***> > — Reply to this email directly, view it on GitHub <#2 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AABALGWL4SSPXSUVCNDZBQLXALSXHANCNFSM6AAAAAAWWUAZJE> . You are receiving this because you commented.Message ID: ***@***.***>
