- Changed OpenGL context version from 4.3 to 4.1 for better macOS support - Added GLFW_OPENGL_FORWARD_COMPAT hint for macOS compatibility - Updated all shader versions to 410 for consistency (geodesic.comp, grid.vert, grid.frag) - Added helpful comments about shader file requirements - Added black_hole binary to .gitignore - Fixed code formatting issues
macOS caps OpenGL at 4.1, so the GL 4.3 compute shader (geodesic.comp) can never compile there and the app exited at startup. Detect compute support at runtime: platforms with GL 4.3+ keep using geodesic.comp unchanged; otherwise render the identical geodesic integration with a fragment shader (geodesic.frag) into the low-res texture via an FBO. Also restore geodesic.comp to #version 430 (compute shaders require GL 4.3, so declaring 410 broke it on Windows/Linux too) and fix the camera UBO 'moving' flag: C++ bool is 1 byte but std140 bool is 4, so the shader could read garbage padding bytes.
The single fullscreen geodesic pass took multiple seconds of GPU time per frame, so macOS's GPU watchdog killed the command buffer (GPU Hang Error) and eventually aborted the app. Two changes fix this: - Split the pass into 10 horizontal scissor tiles with a glFlush between each, so no single command buffer approaches the watchdog limit. - Use adaptive integration steps: D_LAMBDA near the event horizon where lensing accuracy matters, scaling up to 50x in the nearly-flat far field, and treat rays past 2e12 m (beyond max camera zoom-out) as escaped instead of integrating toward 1e30. Frame time on an M4 Pro drops to ~90 ms with no GPU errors; the rendered image is within a few pixels of the fixed-step version.
At elevation pi/2 the camera begins exactly level with the accretion disk and inside its outer radius, so the first frame is a full-screen wall of disk. Tilt the default elevation to 1.3 rad so the app opens on the classic lensed view.
Size the on-screen viewport from glfwGetFramebufferSize instead of the window size: on HiDPI displays the framebuffer is larger than the window, and an 800x600 viewport only covered the bottom-left quarter. Add a macOS section to the README with Homebrew setup, the fragment- shader fallback explanation, measured performance on an M4 Pro, and a screenshot rendered by the app.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Hi Kavan,
I watched the full video and thought it was really cool, since it's also something I'd always wanted to build myself.
I tried to run the project, but I'm on a Mac, and BlackHole3D exited immediately at startup. The cause is that macOS only supports OpenGL up to version 4.1, while
geodesic.compis a compute shader, which requires OpenGL 4.3. Apple never shipped that version, so the shader cannot compile on any Mac, regardless of hardware.This PR makes the project run on macOS without changing behavior on other platforms:

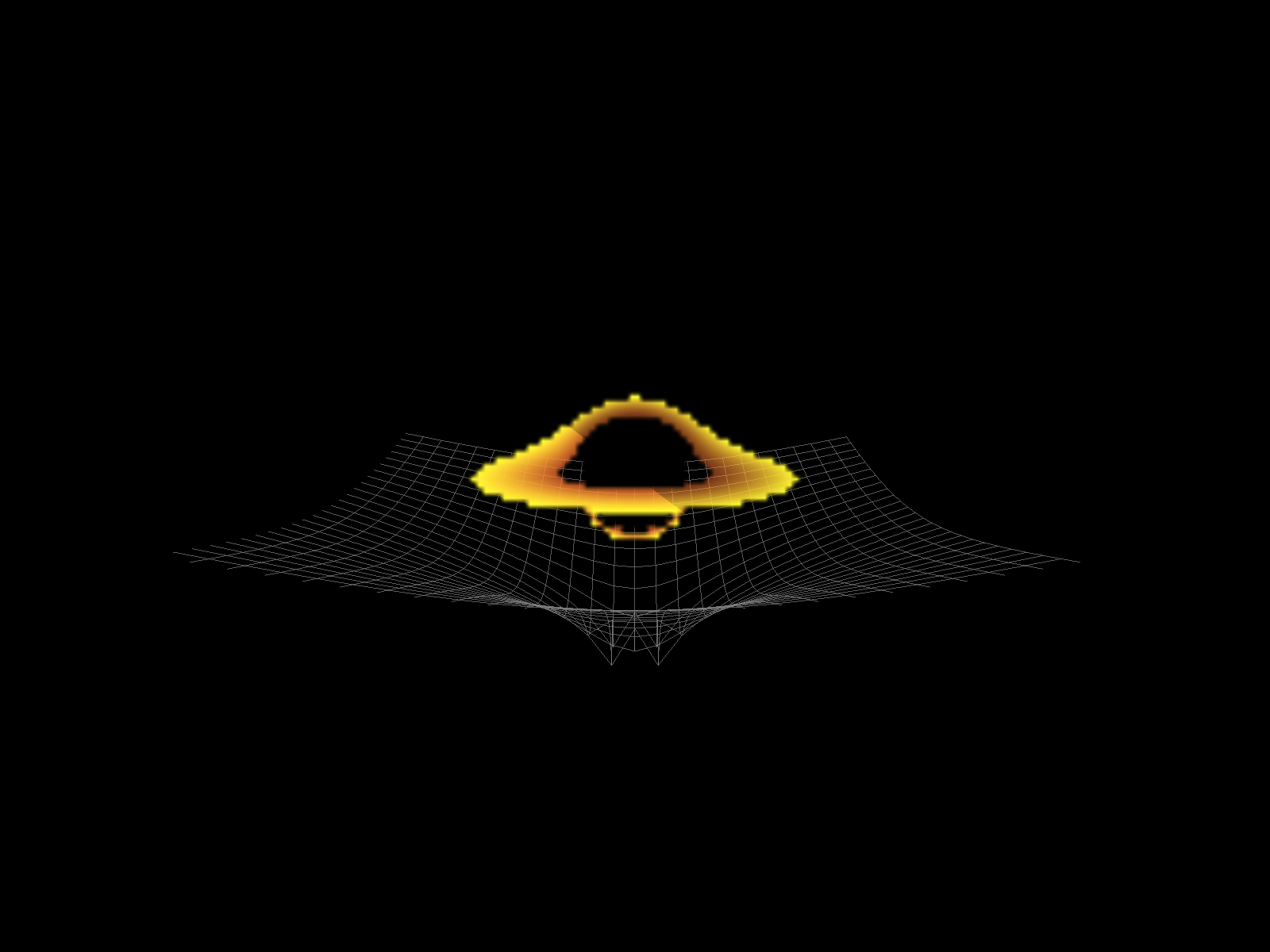

geodesic.compexactly as before. On macOS it runs the same ray calculations in a fragment shader (geodesic.frag), drawn into the same low-resolution texture.geodesic.compis restored to#version 430(declared as 410 it fails to compile everywhere, since compute shaders require 4.3). The camera buffer's boolean flag is now anintto match the memory layout the shader expects. The viewport is sized from the framebuffer rather than the window, which fixes rendering on high-DPI displays.I also added a macOS section to the README with Homebrew setup steps, measured performance, and a screenshot from my machine. The screenshot is from a test on a MacBook Pro (M4 Pro, 24 GB RAM), macOS 26.5
