- Order of operations was being sorted by idx of individual operations in BOM table, which made the ordering useless. - This adds ordering that's sorted from lowest level item to top level item. - chore: remove dead functionality. There's no `items` table. Required item level operations get overwritten on fetching of items / operations e.g. when clicking on multi-level BOM checkbox. - test: add test for tree representation - feat: BOMTree class to get complete representation of a tree
ankush
force-pushed
the
work_order_flat_ops
branch
from
June 25, 2021 09:15
4a2881e to
9e43445
Compare
marination
approved these changes
Jun 25, 2021
ankush
removed
the
backport develop
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to subscribe to this conversation on GitHub.
Already have an account?
Sign in.
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Problem: When multilevel BOM is ticked, work order tries to fetch all operations in single query and sorts by
idxwhich gives meaningless ordering.Solution: order by level (reversed) i.e. in a tree representation bottom-most BOM operations are listed first.

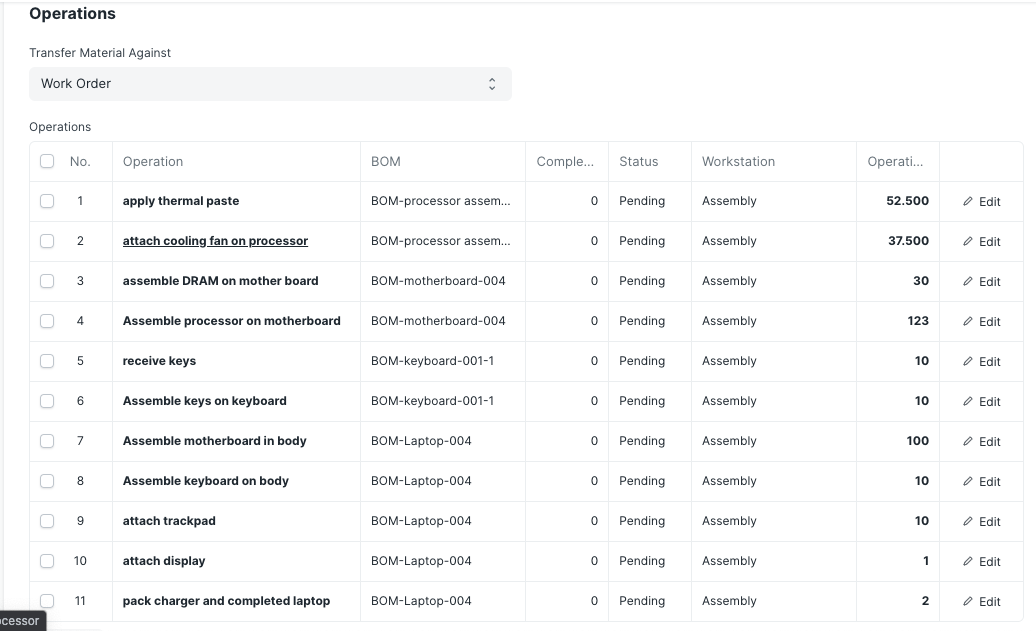

Before (meaningless ordering, wrong index, operations time not considering exploded qty):

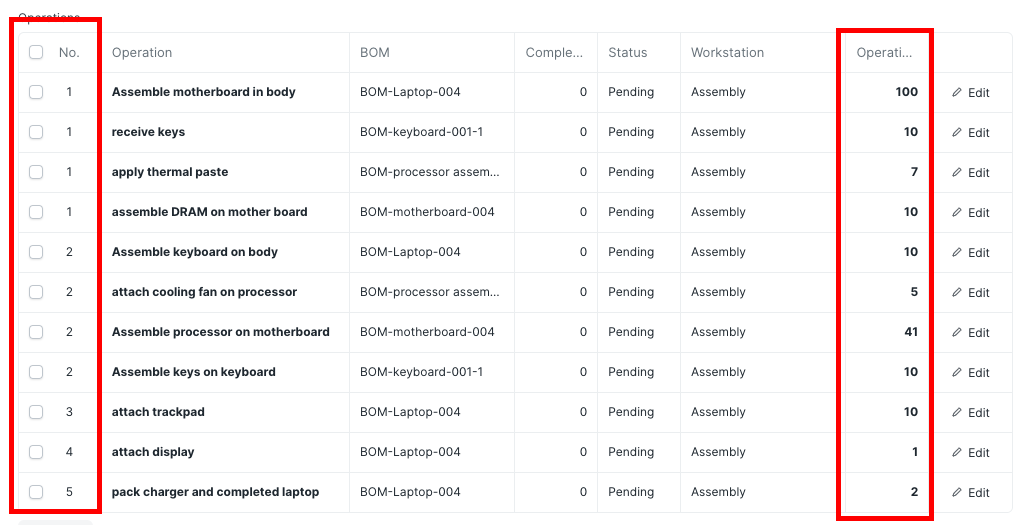

After (Order of operations = reverse level order traversal, operations time considering exploded qty):
Also added

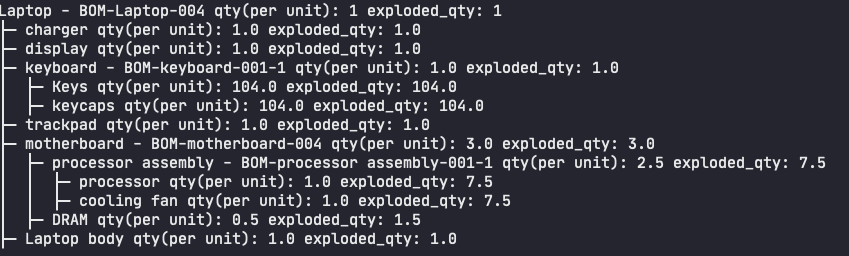

__repr__for BOMTree that shows complete BOM like this:TODO:
WARNING: Ideally, this ordering should not be relied upon and a separate work order should be made for each subassembly. You lose the benefit of parallel traceability and there could be duplication if there's a BOM that's part of two different nodes in the BOM tree. This change is for sake of correctness.
