Java - Java MCV GUI

This is a Java - Maven Project. This project is a seach engine having some features in order to work with .csv files. Using a lightweight GUI.

Modules

Four modules were created:

Module	Description	Class
GUI Search	Call a GUI for Search in CSV Files. Previously listed in .xml file.	GUIRunner
Bulk Download	Performed a file bulk download.	BulFileDownload
Store Data from CSV	Open each .csv file and store each record in database. Defined template for logbooks.	BulkLogBook
Search and Copy File	Performed a search and downloads the specified files from the path read in the .csv file.	SearchCSVandCopy

JDK

• Open JDK 11 -> Amazon Coretto

Dependencies

• jakarta.xml.bind
• com.sun.xml.bind
• org.eclipse.persistence
• com.microsoft.sqlserver
• org.apache.poi
• commons-io

Bussines Logic

1. Retrieve values from .csv file that contains url address to permits files.
2. Create an object with a defined structure of logbook.

Id Matrix	TC Document Control	Date Correspondence	Type	Subject	Author	Original Received	Comments	Status FileNet	References

3. The first approach is that the logbook object contains every field but (To future implementation would be required a normalization process for avoiding nulls and recurrency).
4. As next step a search is performed using LinkedList (in order to improve performance) every record is stored for a stream search.
5. Finally a new JTableModel is defined for display the results to be selected to download.

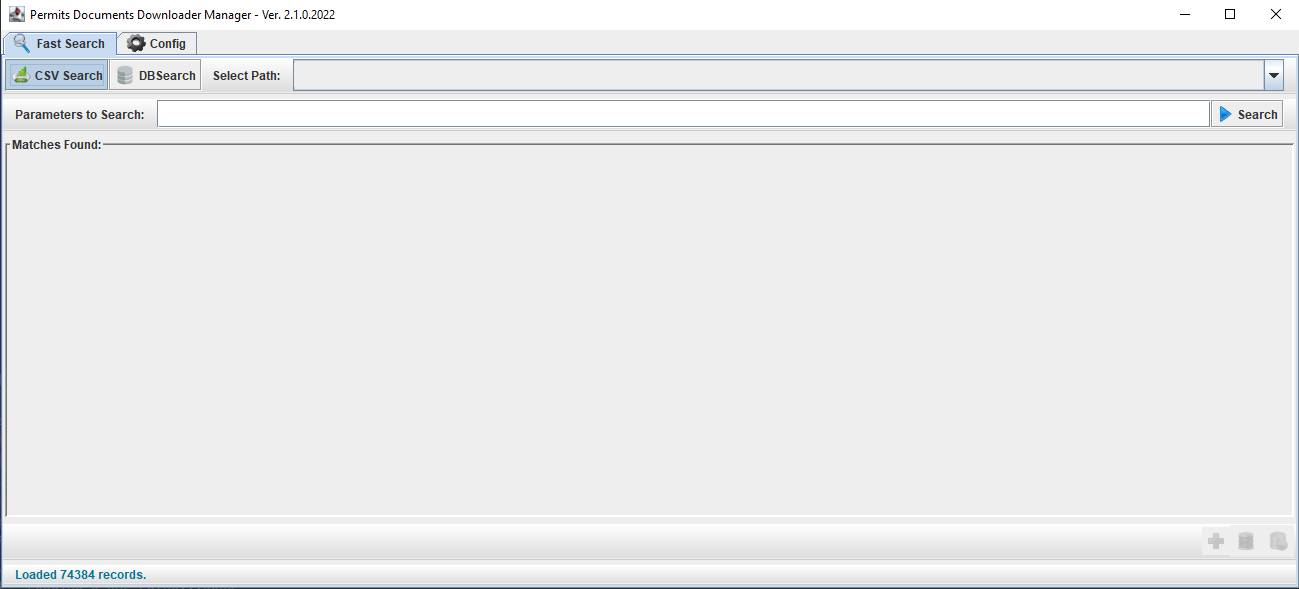

Search GUI Screencap

Configuration Parameters

MV Parameters

Secure Authentication using JDBC:

-Djava.library.path="C:\folder_path\sqljdbc_9.4\enu\auth\x64"

Creation a .key and .cert with OpenSSL

In the path: C:\Program Files\Git\usr\bin>openssl.exe is available a open tool for creation certs and keys. Using the following command:

C:\Program Files\Git\usr\bin>openssl.exe req -x509 -nodes -sha256 -days 3650 -subj "/CN=Local" -newkey rsa:2048 -keyout "C:\path_destination\key_name.key" -out "C:\path_destination\cert_destination.crt"

Export a Cert to KeyStore for SSL Encryption

The following command is required to setup a new certificate in order to SSL connections.

keytool -importcert -trustcacerts -file "C:\dir_path\tcenergy.crt" -alias "tc_cert" -keystore "C:\Program Files\Amazon Corretto\jdk19.0.2_7\lib\security\cacerts"

Additional Info: Wiki - Keystore Repository

Use SSL Poke to test Java SSL connection

Java uses the cacerts file as its certificate authority to validate certificates used in https connections made by Java applications. It is useful to be able to verify that the cacerts file has the correct certificates added to it to connect securely and this is a common scenario when connecting to internal sites in a network that use an internal PKI to issue certificates for internal sites. Atlassian (the company that makes Jira and Confluence) has created a small Java program called SSL Poke to test this connectivity.

SSLPoke Class

Atlassian Explanation

Issues & Common Errors

Driver not properly configured for integrated authentication.

Error:The driver could not establish a secure connection to SQL Server by using Secure Sockets Layer (SSL) encryption.

Driver could not establish a secure connection

Download the Microsoft JDBC Driver 4.2 for SQL Server, a Type 4 JDBC driver that provides database connectivity through the standard JDBC application program interfaces (APIs) available in Java Platform, Enterprise Editions.

ODBC: Microsoft JDBC Driver 4.2 for SQL Server
