OpenLabCtrl

Open source library for FPGA-timed laboratory/experiment control on Red Pitaya STEMlab 125-14 devices.

Features:

• Real-time control (8ns resolution) of:

  • RF out (x2): amplitude, frequency, phase
  • RF in (x2): acquisition, decimation
  • Digital IOs (x16): direction, output value, input acquisition
  • Serial communication: SPI, UART (via Digital IOs)
  • LEDs (x8): output value
  • Analog out, PWM + LPF (x4): output value
  • Analog in, XADC (x4): acquisition, decimation

• Experimental sequences with:

  • Independent and parameterizable sub-sequences (IoSyncFrames, ParameterizedIoSyncFrames) for modular coding and reduced compilation time
  • External triggering
  • Multi-device synchronization

• Buffer size:

  • Instructions: 16MB, 2M instructions
  • Scope/Acquisition (x2): 8MB, 4M samples

Supported Devices

• Redpitaya-125-14-z7010:
  • STEMlab 125-14 (Gen 1)
  • STEMlab 125-14 Low Noise (Gen 1)
  • STEMlab 125-14 (Gen 2)
  • STEMlab 125-14 Pro (Gen 2)
• Redpitaya-125-14-z7020:
  • STEMlab 125-14 Z7020 Low Noise (Gen 1)
  • STEMlab 125-14 Pro Z7020 (Gen 2)

Installation

Dependencies

Please install the Zynq TCP Control library (TCP-based control utilities for ZYNQ FPGA boards, enabling remote bitstream loading and memory IO).

• Clone the repository

  git clone https://github.com/dspsandbox/zynq_utils/tree/master/zynq_tcp_ctrl


• Follow the remote & local installation instructions

This Library

• Clone the Zynq TCP Control repository:

  git clone https://github.com/dspsandbox/OpenLabCtrl/tree/main


• Navigate to the python lib and install via pip3 (-e for editable install):

  cd openlabctrl
  python3 -m pip install --upgrade pip setuptools wheel
  pip3 install -e .


Documentation

See Pyhton API Reference (latest version).

Examples

Notebook	Description
00_led_blink.ipynb	Turn on/off LEDs with external triggering.
01_digital_in_out.ipynb	Configure digital IO direction and square wave generation
02_serial.ipynb	Examples of UART and SPI transaction via digital IOs
03_analog_in_out.ipynb	Generation and acquisition of analog ramps via slow analog IOs
04_rf_in_out.ipynb	RF synthesis and acquisition via high-speed analog IOs
05_param_io_frame.ipynb	Parameterizable IO frames and configurable sequences
06_multi_device_sync.ipynb	Multi-device synchronization and scalability

IOs & Pin Mapping

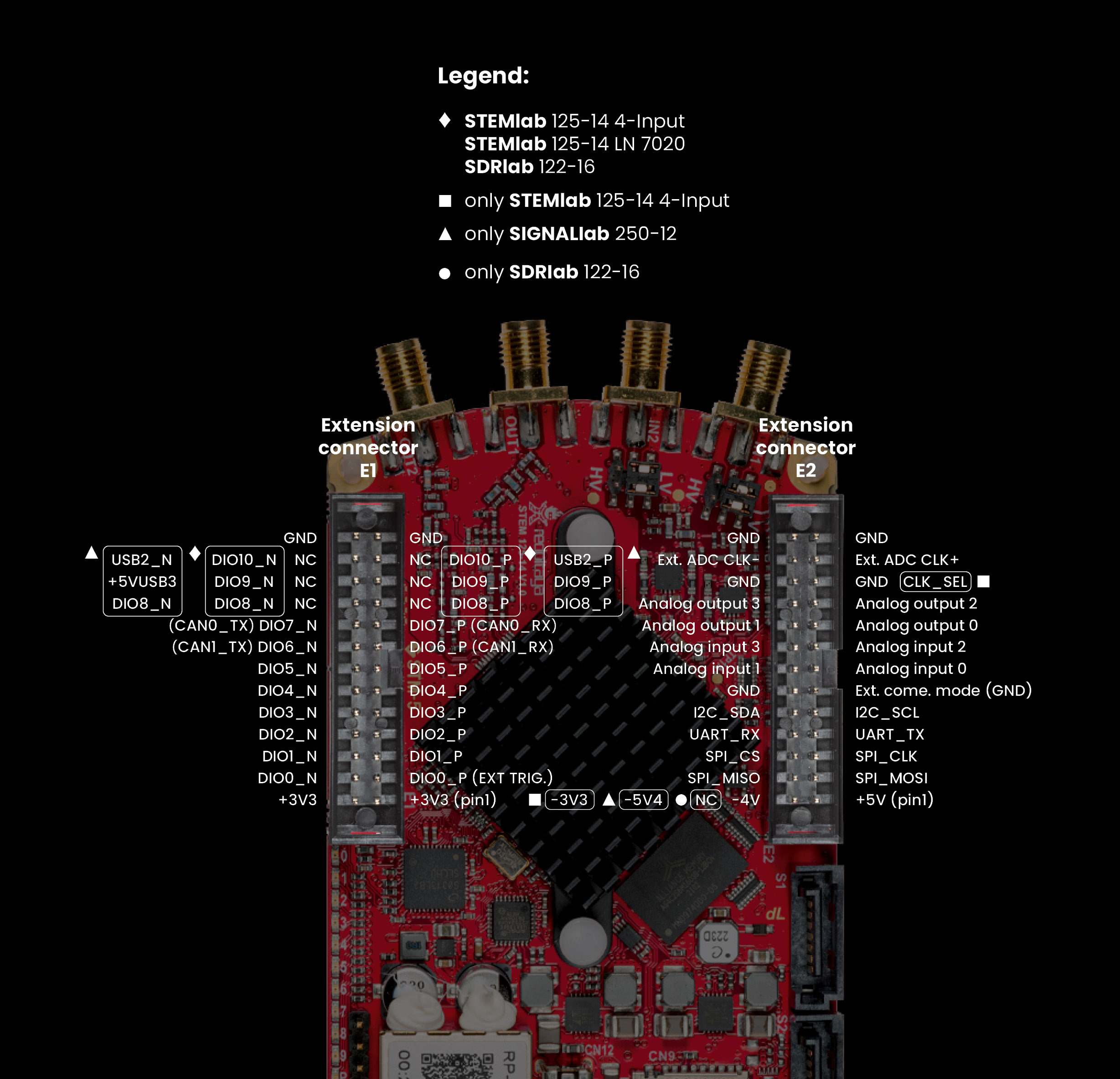

IO Name (OpenLabCtrl library)	Pin Name (see diagram above)	Description
led[0-7]	LED_0-7	User LEDs
digital_io_0[0]	DIO0_P (trig ext)	Digital IO (3.3V)
digital_io_0[1]	DIO0_N	Digital IO (3.3V)
digital_io_0[2]	DIO1_P	Digital IO (3.3V)
digital_io_0[3]	DIO1_N	Digital IO (3.3V)
digital_io_1[0]	DIO2_P	Digital IO (3.3V)
digital_io_1[1]	DIO2_N	Digital IO (3.3V)
digital_io_1[2]	DIO3_P	Digital IO (3.3V)
digital_io_1[3]	DIO3_N	Digital IO (3.3V)
digital_io_2[0]	DIO4_P	Digital IO (3.3V)
digital_io_2[1]	DIO4_N	Digital IO (3.3V)
digital_io_2[2]	DIO5_P	Digital IO (3.3V)
digital_io_2[3]	DIO5_N	Digital IO (3.3V)
digital_io_3[0]	DIO6_P	Digital IO (3.3V)
digital_io_3[1]	DIO6_N	Digital IO (3.3V)
digital_io_3[2]	DIO7_P	Digital IO (3.3V)
digital_io_3[3]	DIO7_N	Digital IO (3.3V)
analog_in_0	Analog input 0	Slow analog input (0V-3.5V, 12-bit, 250 KSa/s)
analog_in_1	Analog input 1	Slow analog input (0V-3.5V, 12-bit, 250 KSa/s)
analog_in_2	Analog input 2	Slow analog input (0V-3.5V, 12-bit, 250 KSa/s)
analog_in_3	Analog input 3	Slow analog input (0V-3.5V, 12-bit, 250 KSa/s)
analog_out_0	Analog Output 0	Slow analog output (0V-1.8V, 12-bit, fc = 190kHz)
analog_out_1	Analog Output 1	Slow analog output (0V-1.8V, 12-bit, fc = 190kHz)
analog_out_2	Analog Output 2	Slow analog output (0V-1.8V, 12-bit, fc = 190kHz)
analog_out_3	Analog Output 3	Slow analog output (0V-1.8V, 12-bit, fc = 190kHz)
rf_out_0	OUT1	Fast analog output (+/-1V, 14-bit, 125 MSa/s)
rf_out_2	OUT2	Fast analog output (+/-1V, 14-bit, 125 MSa/s)
rf_in_0	IN1	Fast analog input (+/-1V or +/-20V, 14-bit, 125 MSa/s)
rf_in_1	IN2	Fast analog input (+/-1V or +/-20V, 14-bit, 125 MSa/s)
daisy_0	S1	Synchronization connector (gen 1: SATA, gen 2: USB-C)
daisy_1	S2	Synchronization connector (gen 1: SATA, gen 2: USB-C)
