llmux

Problem

You're running Claude Code, Codex, Gemini, OpenCode, and a handful of other agent CLIs at the same time. Each lives in its own terminal. You can SSH and tmux attach; Claude has cowork and remote-control — but each agent is on its own terms, and the surface differs per CLI. There's no unified, addressable layer a spec-driven development pipeline, a scheduled job, or a multi-agent chain can talk to that treats every agent CLI the same way.

Solution

llmux is that layer. One daemon, each agent CLI in its own named tmux session, every session reachable by name from a CLI, a REST/WebSocket API, or a browser picker reachable over Tailscale HTTPS. SDD pipelines, multi-agent chains, scheduled jobs, and evals all reduce to plain llmux session prompt <name> "..." calls — the same surface drives the human terminal and the script.

Each spawn is its own named tmux session — own cwd, own flags, own conversation. Run three claude sessions across three different repos side-by-side, or one each of claude / codex / gemini, or fifteen of each — there's no per-agent cap and no shared state.

First-run OAuth on a headless box works by attaching from a phone (or any browser), clicking through the flow there, and detaching. Same trick for token refresh.

(The sessions are real tmux. If you already have an SSH + tmux flow you like, tmux attach -t <name> still works exactly as you'd expect — llmux just adds the unified surface on top.)

Status: stable. One binary (llmux) covers daemon + CLI client. Auth + tokens, mobile picker with per-row destructive actions, conversation resume across all six Cordfuse-supported agents (claude, codex, gemini, agy, opencode, qwen) with a bound-conversation indicator on the session row and an in-form "resume from" picker, daemon-wide + per-session init prompts, optional turnq FIFO turn coordination, an editable Settings page with a runtime overlay file, and in-process log tailing have all shipped. See CHANGELOG.md for the per-version detail.

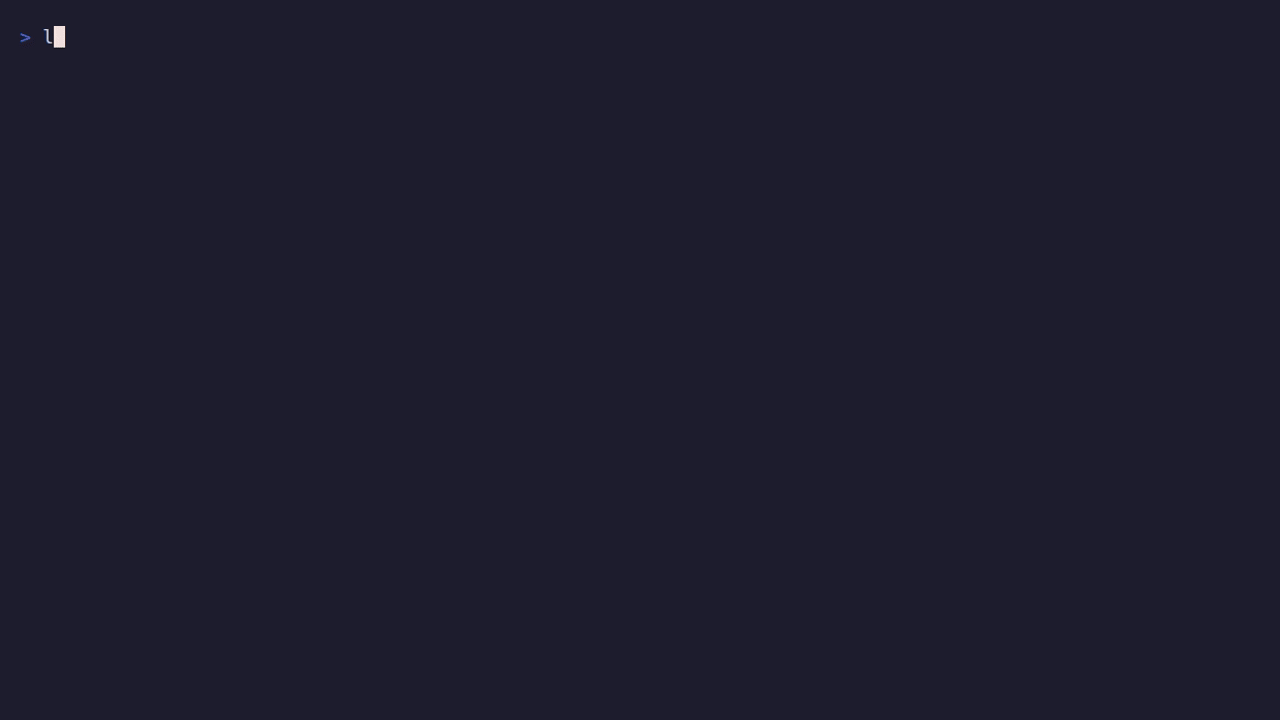

CLI tour against a live daemon — version, agent catalog, session list, JSON surface, then a real tmux attach into a running Codex session and a clean detach.

Phone — picker → tap session → attached xterm with soft-keyboard toolbar (Esc / Tab / Ctrl / arrows / shell chars). Blue rings mark each tap. Pixel 7 emulation.

One persistent process per agent

Each llmux session start <agent> launches the agent's interactive TUI inside a named tmux session and keeps it running. Tool state, conversation, /commands, and MCP context all persist across prompts and across clients. Spawn once, send keystrokes from a CLI, a REST call, a WebSocket attach, or the browser picker — the live process is the source of truth and every client sees the same state.

Mobile, by design

The web picker is reachable over Tailscale HTTPS from any browser. Open it from your phone — including over LTE — and you get the same xterm.js terminal a desktop browser shows, with a soft-keyboard toolbar that surfaces the chars gboard hides (Esc / Tab / Ctrl / arrows / shell chars). Bookmark it (or pin the tab) for a one-tap return — there's no installable home-screen icon, just a regular web page.

A consequence: first-run OAuth on a headless box just works. Spawn an agent on a browserless server, attach from your phone, click through the browser OAuth flow there, detach. The session stays authed for re-attaches forever.

Running the daemon in WSL2? Install Tailscale inside WSL — see On WSL2. NAT means the localhost / LAN URLs won't reach your phone on their own.

One addressable surface, many use cases

Because each session is reachable by name from any client, llmux is the substrate higher-level patterns sit on — spec-driven development (SDD) pipelines, multi-agent chains, scheduled jobs, evals harnessed against live agents.

Multiple senders, one session

llmux sessions are shared mutable state. A given named session can receive prompts from any client — CLI, web, scheduled job — and inputs queue FIFO at the agent's TUI level. There's no daemon-side concept of "owner" or "lock."

In practice, name sessions by purpose:

• claude-sdd for spec-driven dev / headless automation
• claude-chat for interactive chat
• claude-alice / claude-bob for multi-user setups

This is the same pattern as having multiple tmux windows: split by purpose, let people coordinate via the session name. llmux session start claude --name <N> exists for exactly this — there's no per-agent-type cap.

If you mix headless and interactive on a single named session, expect transcript conflation: both senders' turns end up in one conversation history, in send-order. Not a bug, an inherent property of shared state. Designate one if it matters.

Init prompts

llmux can fire a sequence of prompts into an agent immediately after the agent's TUI becomes ready — useful for setting up persistent context ("you work in a TypeScript monorepo, never write Python") that should apply to every turn in the session.

Two scopes:

• Daemon-wide — initPrompts: at the top of .llmux.yaml. Fired into every newly-spawned session before any operator interaction.
• Per-session — --init <prompt> flag on session start (repeatable). Composed AFTER the daemon-wide prompts.

# .llmux.yaml
initPrompts:
  - |
    You work in a TypeScript monorepo. Never write Python.
  - |
    If the current branch is main, stop and ask before committing.

llmux session start claude --name sdd \
  --init "you process tickets from $REPO" \
  --init "respond in JSON {action, files, reasoning}"

Spawn timing. The daemon polls the tmux pane for each agent's readyPrompt regex (e.g. ^> for Claude, Goose❯ for Goose). Once the regex matches the bottom of the pane the prompts fire in order with a 500ms gap between. Timeout is 10s — if the regex never matches (agent hung at OAuth, etc.) llmux warns and fires anyway. For agents without a readyPrompt defined, it falls back to a fixed 2-second sleep.

Respawn behaviour. session restart re-fires the same init prompts (re-establishes the operator context). session resume does NOT re-fire (the prompts are already in the conversation history). Pass --skip-init on session start or session restart to suppress firing for that single invocation.

Editing post-spawn. session edit <name> --init "..." replaces the persisted list. Combine with --apply to respawn immediately so the new prompts take effect.

turnq — FIFO turn coordination (optional)

By default llmux sessions accept prompts from any client in send-order; concurrent sends interleave at the tmux level (mostly OK because the agent CLI buffers input — see the "Multiple senders, one session" section above). For workflows where strict FIFO matters (multiple operators, headless SDD pipelines), enable turnq:

# .llmux.yaml
turnq:
  enabled: true
  # url: http://localhost:3003   # optional — defaults to local flock(2) mode
  maxHoldMs: 300000               # hard release timeout (default 5 min)

How it works:

1. At session spawn, llmux generates a per-session marker (LLMUX_DONE_xxxxxxxx) and auto-injects a built-in init prompt asking the agent to emit <<LLMUX_DONE_xxxxxxxx>> on its own line as the last line of every response.
2. Each tmux send-keys (CLI session prompt, web "send" button, broadcast) wraps in turnq.withTurn(channel = "llmux:<session>").
3. Inside the turn, llmux polls the pane tail every 400ms for the marker. When matched, the turn releases and the next sender goes.
4. If maxHoldMs elapses without the marker appearing, llmux force- releases with a warning (agent crashed, hung tool call, etc.).
5. The marker line is stripped from the web terminal stream so it doesn't clutter the operator's view. CLI tmux attach still shows it.

The marker is per-session and uses random bytes, so concurrent sessions don't false-trigger each other and pre-crafted input can't spoof a release on someone else's session.

Per-call opt-out: llmux session prompt <name> "..." --no-turnq or {"skipTurnq": true} in the HTTP /send body.

If url is omitted, the integration uses turnq's local flock(2) mode — no server required. Set url to a turnq HTTP server for cross-process / cross-host coordination.

Install

Prerequisites (daemon host)

• Node.js ≥ 20 — not Bun (node-pty attaches to tmux through Node's native prebuilds; Bun caused immediate SIGHUP).
• tmux — every agent runs inside a real tmux session, so the daemon host needs tmux. Client-only machines don't.
• A C toolchain on Linux / WSL2 — node-pty is a native module. On a fresh Ubuntu / WSL2 (or other minimal Linux) the global install compiles it from source and fails without build tools — the most common first-run snag. Install both up front:

sudo apt install -y tmux build-essential   # Debian / Ubuntu / WSL2
# macOS: `brew install tmux` + Xcode Command Line Tools (xcode-select --install)

Then:

# One package, one binary — installs on the daemon host AND any client machine
npm install -g @cordfuse/llmux

If you used the now-deprecated @cordfuse/llmuxd package: uninstall it and install @cordfuse/llmux instead. The llmuxd binary is gone; the llmux binary covers both daemon and client roles.

30-second quickstart

# 1. Start the daemon (binds REST + WebSocket + browser picker)
llmux server start --port 3001

# 2. Spawn an agent into a named tmux session
llmux session start claude --name main --cwd ~/projects/myapp

# 3. Fire a prompt — fire-and-forget
llmux session prompt main "what does src/index.ts do?"

# 4. Or attach interactively (raw TTY pass-through)
llmux session attach main

# 5. Or open the browser picker (URL is in the server start banner)
#    Pick a session, get a full-screen xterm.js terminal wired over WebSocket.

On mobile the picker is a phone-tailored web UI — spawn / restart / kill / edit / resume past conversations, with a confirmation modal on destructive actions. The chat page is a phone-friendly xterm with a custom soft-keyboard toolbar that surfaces Esc / Tab / Ctrl / Alt / arrows / shell chars that gboard hides.

Remote operation

The same binary is the client. Set --server (or LLMUX_SERVER env) on any session/agent verb and it routes over HTTP instead of operating locally:

export LLMUX_SERVER=http://192.0.2.10:3001  # or https://<host>.tailnet.ts.net
export LLMUX_TOKEN=sas_…                    # mint with `llmux token create --username <name>`

llmux session list
llmux session prompt main "tomorrow's plan?"
llmux session attach main                   # raw TTY pass-through over WS
llmux session resume main --latest          # rebind to the most recent claude convo

Local CLI usage (no --server flag) talks to the daemon in-process — no network request, no token needed. Any HTTP/WS request to the daemon — from --server, a browser, or anything else — requires a real credential: a v2 session/bearer token, or a legacy v1 token. There is no bypass based on where the request appears to come from. --token <sas> per-command works for remote use.

Noun-prefix surface

session   list / start / stop / restart / edit / attach / prompt /
          broadcast / resume / history
server    start
token     create / list / rename / revoke (single or --all)
agent     list  [--all] [--installed] [--json]
logs      list / tail
settings  show
auth      login / logout / whoami / list / use

Global flags: --server <url>, --token <sas>, --help, --version.

Backward-compat shims (kept one release): llmux serve, llmux ls, llmux status, and the legacy flat verbs (llmux send, llmux spawn, llmux kill, etc.) still work; they fall through to the noun-prefix dispatcher.

How it works

Each spawned agent is a real tmux session, not a wrapped PTY. The daemon dispatches input via tmux send-keys and exposes the surface over a REST API plus a WebSocket bridge to xterm.js (via node-pty attached to tmux attach -t <name>). That keeps the agent CLIs unmodified — Claude Code is still running Claude Code; llmux just coordinates input and exposes the surface.

State lives at ~/.local/state/llmuxd/sessions.json (or $XDG_STATE_HOME/llmuxd/sessions.json) with 0600 perms and a versioned schema. Auth tokens live in the sibling auth.json. The state directory keeps its llmuxd/ name across the v0.12.0 package consolidation so existing operators don't need to migrate anything.

The daemon runs on Node (not Bun) — node-pty's native prebuilds target Node, and attaching to tmux through node-pty under Bun caused immediate SIGHUP.

Supported agents

Key	CLI	Danger-mode default
claude	Claude Code	--dangerously-skip-permissions
codex	OpenAI Codex CLI	--dangerously-bypass-approvals-and-sandbox
agy	Antigravity CLI	--dangerously-skip-permissions
gemini	Gemini CLI	--yolo
qwen	Qwen Code	--yolo
opencode	OpenCode	env: OPENCODE_YOLO=1 (TUI lacks a flag)
amp	Sourcegraph Amp	--dangerously-allow-all
grok	Grok Build CLI	--always-approve
aider	Aider	--yes-always
continue	Continue CLI (cn)	--auto
kiro	Kiro CLI	--trust-all-tools
cursor	Cursor CLI (cursor-agent)	(config-based)
plandex	Plandex	(interactive set-auto)
goose	Goose	env: GOOSE_MODE=auto
copilot	GitHub Copilot CLI (gh copilot)	n/a

Only installed agents appear in llmux agent list and the picker dropdown. Detection uses a pure-Node PATH walk for most; copilot checks the gh-managed binary directory.

Per-session overrides via llmux session start <agent>:

• --name <X> — tmux session name (defaults to the agent key)
• --cwd <path> — working directory (accepts ~/… shorthand)
• --flags "<f>" — replace the agent's default flags entirely
• --env "KEY=VAL" — extra env vars (newline-separated for multiple)

Editing any of these on a running session via the web picker auto-respawns the tmux session so changes take effect immediately.

Conversation resume

Every Cordfuse-supported agent ships with a history adapter — the row's ☰ N button counts past conversations in the session's cwd and the picker lists them newest-first. Pick one and llmux respawns the agent with the right resume flag.

Agent	Storage	Resume flag
claude	~/.claude/projects/<encoded-cwd>/<id>.jsonl	--resume <id>
codex	~/.codex/sessions/YYYY/MM/DD/rollout-<ts>-<uuid>.jsonl	resume <id> (subcommand)
gemini	~/.gemini/tmp/<dir>/chats/session-*.jsonl (filtered by projectHash == sha256(cwd))	--session-file <path>
agy	~/.gemini/antigravity-cli/history.jsonl (one line per prompt, grouped by conversationId)	--conversation <id>
opencode	~/.local/share/opencode/opencode.db (sqlite via better-sqlite3)	--session <id>
qwen	~/.qwen/tmp/<dir>/chats/session-*.jsonl (Gemini-fork storage)	--resume <id>

The selected conversation id is persisted on the session record so respawn keeps you on the same conversation. The picked conversation also gets surfaced two ways:

• Per-row: a small purple ↻ <title> line under the session name, visible at a glance from the table.
• Picker modal: the bound conversation gets a left-border accent + subtle background tint so it's unmistakable in long lists.

You can pick a conversation up front when spawning a session, too — the new-session form (and the edit form) has a RESUME FROM dropdown populated by GET /api/conversations?agent=<key>&cwd=<path>. Changing the bound conversation from the edit form auto kill+respawns the session so the new binding takes effect immediately.

From the CLI:

llmux session resume <name> --latest          # most recent conversation
llmux session resume <name> --conversation <id>
llmux session history <name>                  # list past conversations + ids
llmux session start opencode --resume-from ses_<id>  # spawn pre-bound

Auth

Auth is built around users. A fresh llmux server start prints a setup-wizard URL (/setup?token=…) you visit once to create the first admin user with a passphrase. Subsequent logins go through /login (web) or llmux auth login (CLI), both of which mint identity tokens that are bound to the authenticated user.

Tokens are owned. The Tokens page in the web UI (drawer → Tokens) shows every token's owner, and admins can mint a token for any user; non-admins can only mint their own. From the CLI:

llmux token create --username alice --name phone-mac
# prints sas_…<43-char-base64url> once; copy it.
# pass --qr-endpoint tailscale-https for a QR-code deep-link that logs you
# in on first scan from a phone.

llmux token list                       # every token (with owner column)
llmux token list --user alice          # filter to one user
llmux token revoke <id>
llmux token revoke --all --user alice  # nuke every token alice owns

After the first user exists, every HTTP/WS request to the daemon requires either Authorization: Bearer <sas> (CLI / curl) or the llmux_session cookie set by browser login — regardless of where the request appears to come from. Local CLI usage (no --server flag) needs no token because it never makes an HTTP request at all — it calls the daemon's handlers in-process.

v1 SAS tokens (the sas_<id> format without an owning user, from pre-v0.37 releases) are read-only. Existing v1 tokens keep validating until manually revoked, but no new ones can be minted. Rotate to user-owned tokens when convenient.

Tailscale serve fronting

To reach llmux's web picker from another tailnet device (phone, laptop, …) over HTTPS, front the daemon with tailscale serve. Tailscale terminates TLS at the tailnet edge; llmux stays plain HTTP behind it.

Why a custom port, not 443? Tailscale serve allows exactly one mapping per host:port. If you run more than one Cordfuse app on the same machine (llmux + vyzr + …), they can't all claim port 443 — adding a second app on 443 silently kicks the first one off. The Cordfuse convention is to give each app its own custom HTTP/HTTPS port pair so they coexist without collision. llmux's convention is 3080 (HTTP) / 3443 (HTTPS).

tailscale serve --bg --https=3443 http://localhost:3001
tailscale serve --bg --http=3080  http://localhost:3001

The server-start banner picks up the mapping automatically (any port, not just 3443/3080) and surfaces the resulting URLs:

llmux v0.33.1

  ▸ Tailscale HTTPS  https://<host>.tailnet.ts.net:3443
  ▸ Tailscale HTTP   http://<host>.tailnet.ts.net:3080
  ▸ Local            http://localhost:3001
  ▸ LAN              http://192.168.x.x:3001

The browser picker is a clean TLS surface — open it in Chrome / Safari on any tailnet device. CLI attach currently speaks ws:// only — point it at the LAN or local HTTP URL.

Cordfuse port conventions (each app fronted on its own pair so multiple tools can share one tailnet host):

App	HTTP port	HTTPS port
llmux	3080	3443
vyzr	3081	3444

(Pick non-overlapping ports for any additional Cordfuse app you front.)

On WSL2 — install Tailscale inside WSL, not just on Windows

If the daemon runs in WSL2, Tailscale is the cleanest — and recommended — way to reach the web picker from your phone. WSL2 sits behind a NAT'd virtual network, so the daemon's localhost / LAN URLs are not reachable from other devices: localhost only forwards from the Windows host itself, and the WSL 172.x address is internal. Reaching it over the LAN otherwise means an elevated netsh interface portproxy + firewall rule on Windows that breaks every time WSL's internal IP changes (each wsl --shutdown / reboot).

Tailscale sidesteps all of that. Install it inside the WSL distro (the Windows-host Tailscale node does not expose WSL's ports) so the WSL instance joins your tailnet as its own node with a stable IP + MagicDNS name:

curl -fsSL https://tailscale.com/install.sh | sh
sudo tailscale up --hostname=<host>-wsl   # distinct from the Windows host's node

Then front the daemon with tailscale serve exactly as above and open the HTTPS URL from any tailnet device. Stable across reboots, no admin/netsh/ firewall changes, and it works over LTE — not just your local WiFi.

• Modern WSL2 kernels ship /dev/net/tun, so Tailscale runs in normal mode (no --tun=userspace-networking needed). Verify with ls /dev/net/tun.
• Enable systemd in /etc/wsl.conf ([boot]\nsystemd=true) so tailscaled runs as a service and survives WSL restarts.
• --hostname=<host>-wsl avoids a name collision with the Windows host, which reports the same machine name to the tailnet.

Config (.llmux.yaml)

Optional YAML config file. llmux runs without it — defaults are baked into agents.ts. Use the YAML to override per-agent launch behavior or change the daemon's default port without baking a flag into every shell alias.

Discovery order (first hit wins)

1. --config <path> flag
2. ./.llmux.yaml — auto-discovered in the cwd you invoke from
3. ~/.config/llmux/config.yaml — global default
4. LLMUX_CONFIG=<path> env var

Schema

# Server defaults — used when `llmux server start` runs with no overriding
# flag / env. Precedence: --port flag > LLMUXD_PORT env > server.port here.
server:
  port: 3001          # daemon listen port (default 3001 when key omitted)

# Per-agent overrides. Key matches the agent's `key` in the catalog
# (claude, codex, agy, gemini, qwen, opencode, amp, grok, aider, continue,
# kiro, cursor, plandex, goose, copilot). Only the keys you list override;
# everything else falls through to the catalog default.
agents:
  claude:
    cmd: claude       # binary path or PATH-lookup name (default: agent's catalog cmd)
    flags: ""         # launch flags appended after cmd (default: catalog default,
                      # e.g. "--dangerously-skip-permissions" for claude).
                      # Empty string disables the default flags entirely.
  codex:
    flags: "--model gpt-5"  # keep `codex` as the binary, override flags

Worked examples

Strip danger-mode flags from claude on a shared machine:

agents:
  claude:
    flags: ""        # claude launches with no flags — full permission prompts

Point gemini at a wrapper script (logging, rate-limiting, whatever):

agents:
  gemini:
    cmd: /usr/local/bin/gemini-wrapped

Run the daemon on a non-default port project-wide:

server:
  port: 8080

A bare llmux server start from any cwd containing this file binds to :8080. --port 3001 still wins per-invocation.

What this YAML does NOT do today

The schema includes server.token, server.tokenExpiry, server.noQr, and sessions[] (auto-spawn list). These are reserved for future wiring — setting them has no effect yet. If you need any of these surfaces, file an issue and they can be prioritised.

Runtime overlay (~/.config/llmux/overrides.yaml)

The web UI's Settings page is editable for two fields — daemon-wide initPrompts and the turnq subconfig. Edits never touch the base .llmux.yaml (its comments + formatting stay pristine); they write to a separate runtime overlay at ~/.config/llmux/overrides.yaml.

# llmux runtime overrides — written by the Settings page in the web UI.
# Layered on top of the base .llmux.yaml / config.yaml at load time.
# Delete this file to revert all UI edits to the on-disk base config.
initPrompts:
  - seed prompt
turnq:
  enabled: true
  maxHoldMs: 30000

Behaviour:

• loadConfig() reads the base, then layers the overlay on top. Overlay fields win.
• Atomic writes (write-to-tmp + rename) so a partial write can't tear the file.
• Delete the overlay file to revert all UI edits in one shot.
• The Settings page shows an overlay active badge + an "Active overrides" card with the verbatim overlay YAML when the overlay exists, so operators can see exactly what was written.

Settings + logs from the CLI

The web UI's Settings + Logs screens have CLI equivalents for headless use:

llmux settings show              # config source, state dir, env, loaded YAML
llmux settings show --json       # same payload, structured

llmux logs list [--limit N]      # last N buffered log lines (default 200)
llmux logs tail                  # initial buffer + live-tail until Ctrl-C
llmux logs tail --since <ISO>    # tail from a specific timestamp

The daemon keeps a 500-line in-process ring buffer. Both verbs read from it locally; there's no remote --server mode (logs are local-only by design).

Environment

Variable	Purpose
LLMUX_SERVER	Default --server URL for session/agent verbs
LLMUX_TOKEN	Default --token SAS auth
LLMUXD_PORT	Daemon listen port (consulted by server start + QR builders)
LLMUXD_HOST	Daemon bind host (defaults to 0.0.0.0)
LLMUX_PORT	Legacy port hint for QR builders; prefer LLMUXD_PORT
XDG_CONFIG_HOME	Override for the config directory parent (used by the dotenv loader)
XDG_STATE_HOME	Override for the state directory parent
OPENCODE_YOLO, GOOSE_MODE, …	Forwarded by envDefaults per-agent

Auto-loaded .env

On every invocation, llmux reads $XDG_CONFIG_HOME/llmux/.env (falling back to ~/.config/llmux/.env). Any variable from the table above can live there:

LLMUX_SERVER=https://llmux.example.com
LLMUX_TOKEN=sas_…
LLMUXD_PORT=3001

• Process env wins. A shell export LLMUX_TOKEN=… always overrides the file.
• Missing file is silent — no warning, no error.
• The file is read before flag parsing, so any code that consults process.env.LLMUX_* sees the merged result. Applies to both client and daemon commands.

License

MIT. See LICENSE.

---

llmux is part of the Cordfuse AI agent toolchain.
