Flight Reservation System

Overview

The flight reservation system is a web platform that provides the facility to search and book tickets online. It helps to manage the ticket booking records as well as the booking records and the details of the customers going to travel.

This project is following microservice-architecture and build with the help of NodeJs. Each request is first sent to the gateway which forwards it based on the request country, it then reaches the country load balancer which redirects to the nearest registered microservice.

Booking process

A customer can view all the available flights. Customers can search the flight according to the source and destination. Customers can book a ticket after login into the application, for the first-time customer have to register in the system.

Tools and Technology

• Front-End  Html, CSS, JS.
• Back-end: NodeJs ExpressJs.
• Database MongoDB.

Steps to run the backend server

Gateway

• Navigate to Gateway folder inside the project using cd command
• Run npm install
• Run npm start

Load Balancer

• Navigate to India folder inside the project using cd command
• Run npm install
• Run npm start

Microservices

• Navigate to Delhi and Kolkata folder inside the project using cd command
• Run npm install
• Run npm start

Microservice Endpoint Details

GET /flights

• Get list of flights based on query params provided
• Source, Destination, StartDate, ReturnDate are the params where Return date is optional and first three are required
• Can be accessed by all users

GET /flight/:id

• Get details regarding a single flight
• Can be accessed by admin user and registered vendor for third party access

POST /flight/add

• Add new flights to the database
• Can be accessed only by admin user

POST /login

• This endpoint is used for login
• Cookies are set for session management
• Can be accessed by all users

POST /signup

• Create new user
• Can be accessed by all users

GET /logout

• Used for logging users out and destroying session

POST /reset-password

• Used for initiating password
• Generates a password reset token with expiry date

POST /new-password

• Used for password reset
• Requires valid reset password token to reset

POST /reserve/:id

• Used for booking flights
• A person can book flight for more than one traveller at once
• Can be used by all type of users

GET /userDetails

• Returns details of logged in user
• Automatically determines logged in user using session cookies

Architecture Diagram

Screenshots and Video

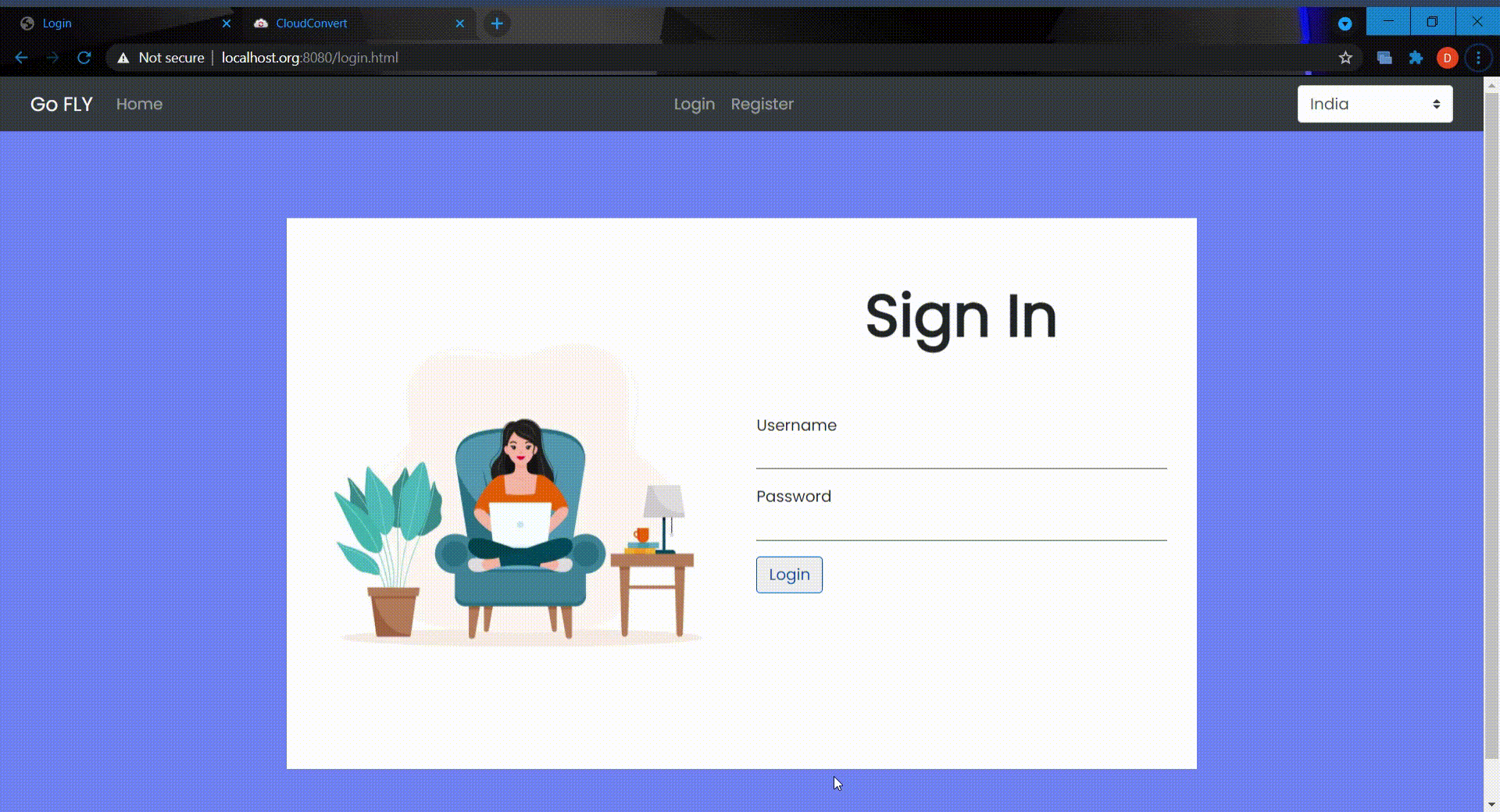

UI in Action

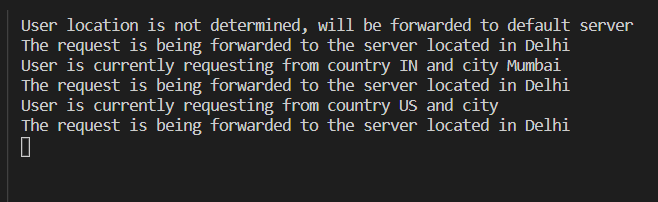

Gateway in Action

Load Balancer in Action
