Mini16SegEffector

Mini 16-Segment and Effector Arduino Shield for IIDX

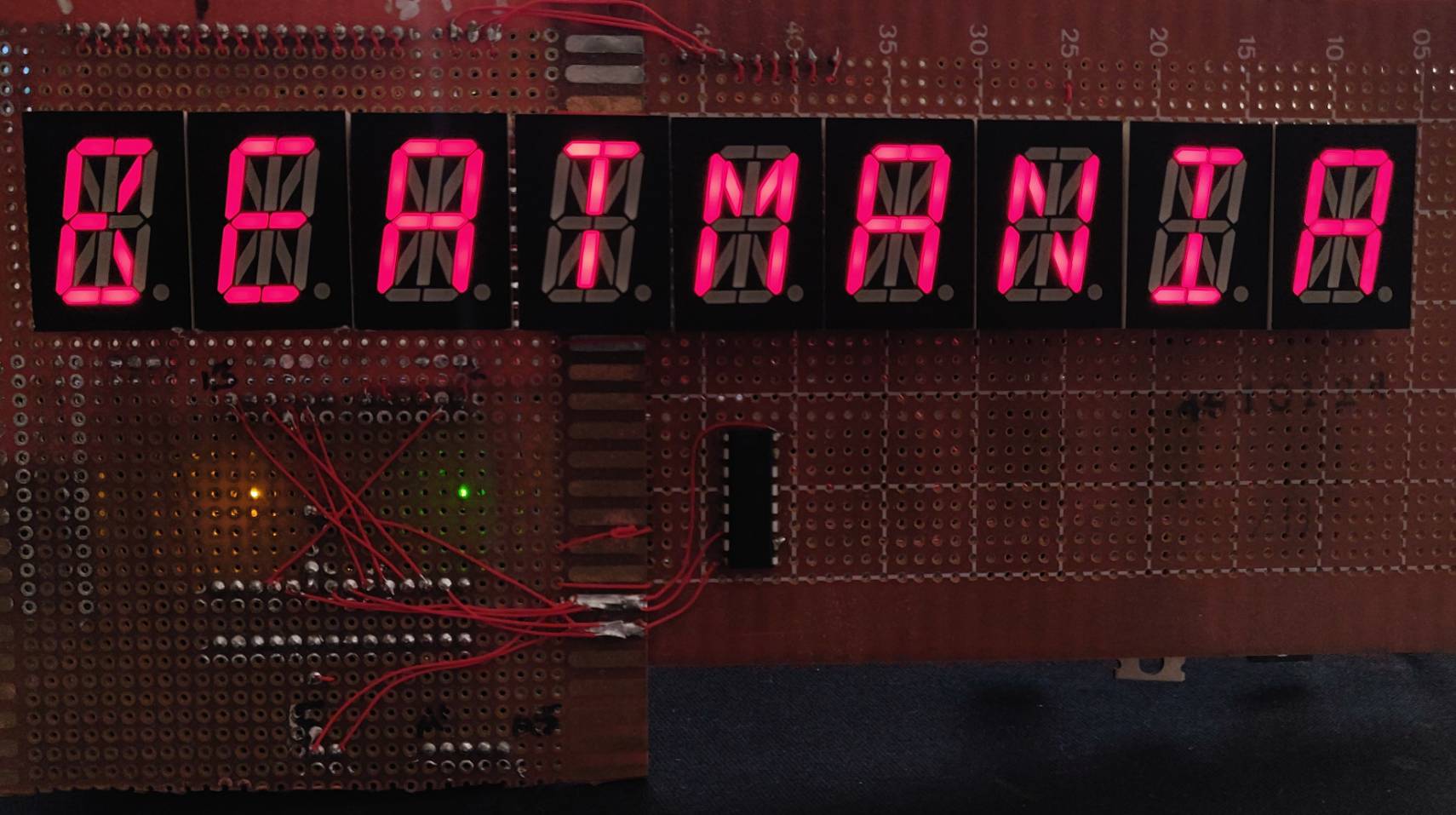

Features a mini 16 Segment display, Effector sliders and vefx/effect/p1 start/p2 start buttons, (Wow! just like the arcade!?).

16 seg currently uses a vefxio.dll implementation that only works with bt5 (and apparently tt but I cant find documentation on this), SpiceTools support (hopefully) coming soon.

Sliders can only be bound on spiceTools, still working out a way to bind that would work with bt5 and tt.

uses TLC5940 16 channel LED driver and 74HC595 8-bit bit shifter for driving 16 seg display

• Requires Arduino Uno R3 with Hoodloader 2
• v1 Gamepad Implementation modified from HID-Project
• v2 is heavily modified from this https://github.com/4yn/iivx/tree/master/leoo/leoo

ToDo:

• Clean code
• Find any missing symbols for font
• work on PCB

Parts list:

• 1 x Arduino Uno R3 (with 16u2 AVR), may work on mega, untested
• 9 x 16 segment common annode LED displays
• 9 x NPN transistors/mosfets
• 5 x 10k slide potentiometers (official use ALPS with center detent, hard to source similar spec)
• 4 x mechanical switches
• 1 x 2k resistor
• 1 x 10k resistor
• other resistors probably
• 1 x TLC5940 16 channel led display driver
• 1 x 74HC595 8-bit bit shifter

setup:

  TLC (from TLC example):
  -  +5V from Arduino -> TLC pin 21 and 19     (VCC and DCPRG)
  -  GND from Arduino -> TLC pin 22 and 27     (GND and VPRG)
  -  digital 3        -> TLC pin 18            (GSCLK)
  -  digital 9        -> TLC pin 24            (XLAT)
  -  digital 10       -> TLC pin 23            (BLANK)
  -  digital 11       -> TLC pin 26            (SIN)
  -  digital 13       -> TLC pin 25            (SCLK)

  74hc595:
  -  digital 4        -> 74hc pin 11          (SH_CP)
  -  digital 2        -> 74hc pin 14          (DATA)
  -  digital 7        -> 74hc pin 12          (ST_CP)
  -  digital 6        -> 74hc pin 13          (OE)
