Marble Taxonomy Explorer

A static site that renders the Marble Skill Taxonomy — 1,590 micro-topics across 8 subjects, connected by 3,221 prerequisite dependencies.

Built with Astro + Svelte + Tailwind CSS.

Live: https://ashutoshsinghpr7.github.io/marble-taxonomy-explorer/ (hosted on GitHub Pages)

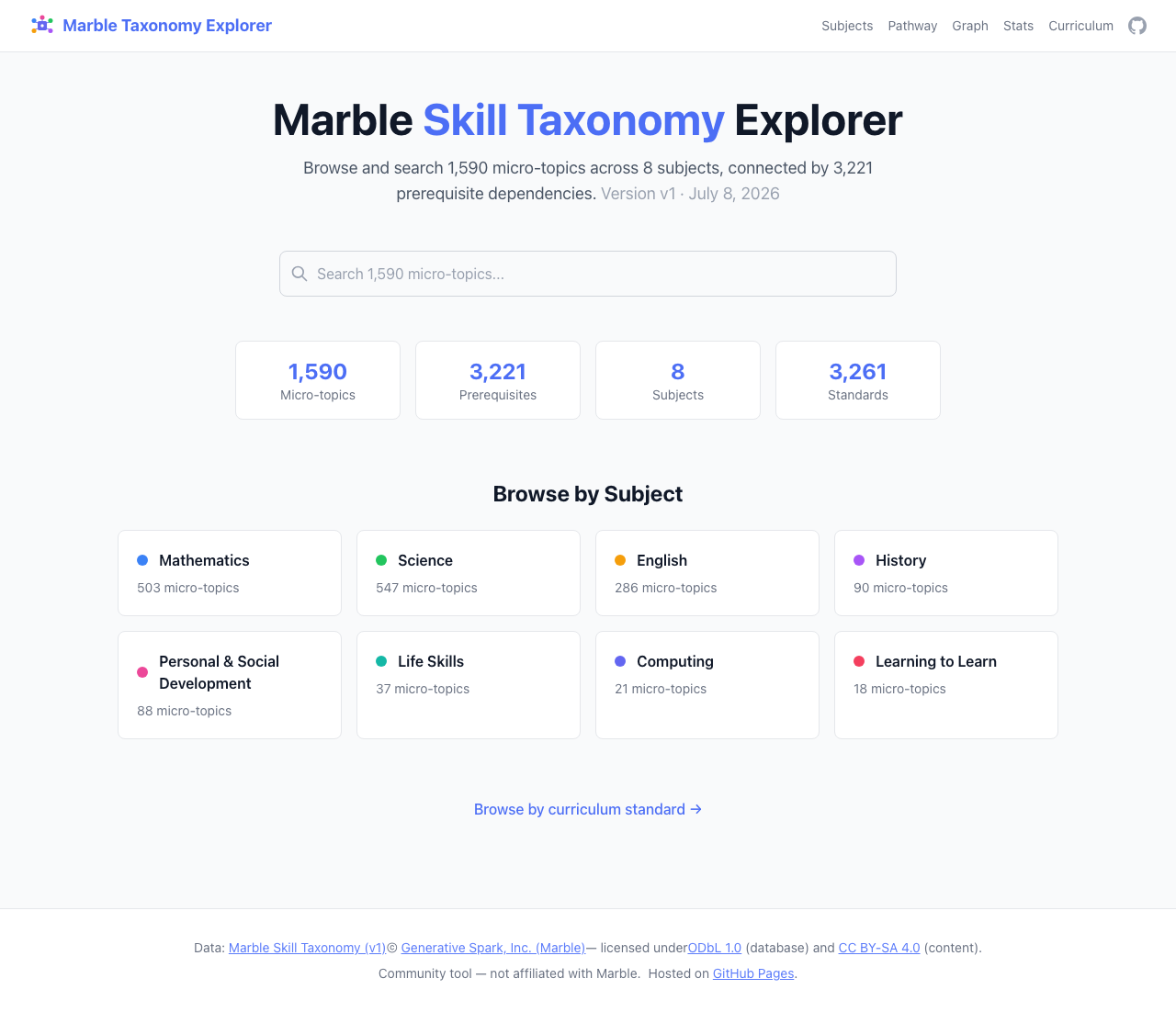

Screenshots

Graph Explorer	Statistics

Topic Detail	Learning Pathway

Live demo →

Features

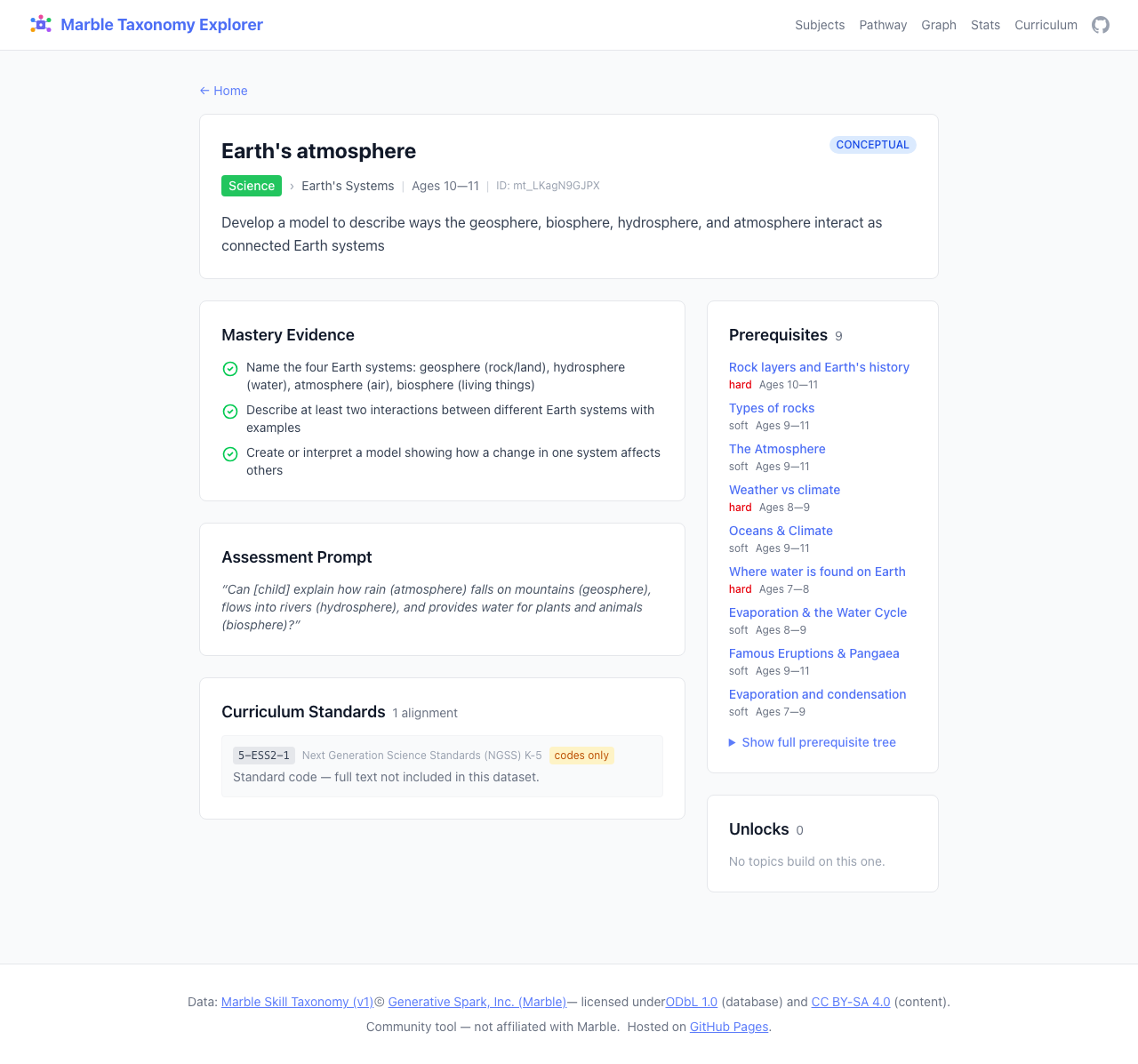

• Browse — subject pages with domain grouping and topic detail pages with collapsible prerequisite trees
• Search — full-text search across all 1,590 topics with instant results

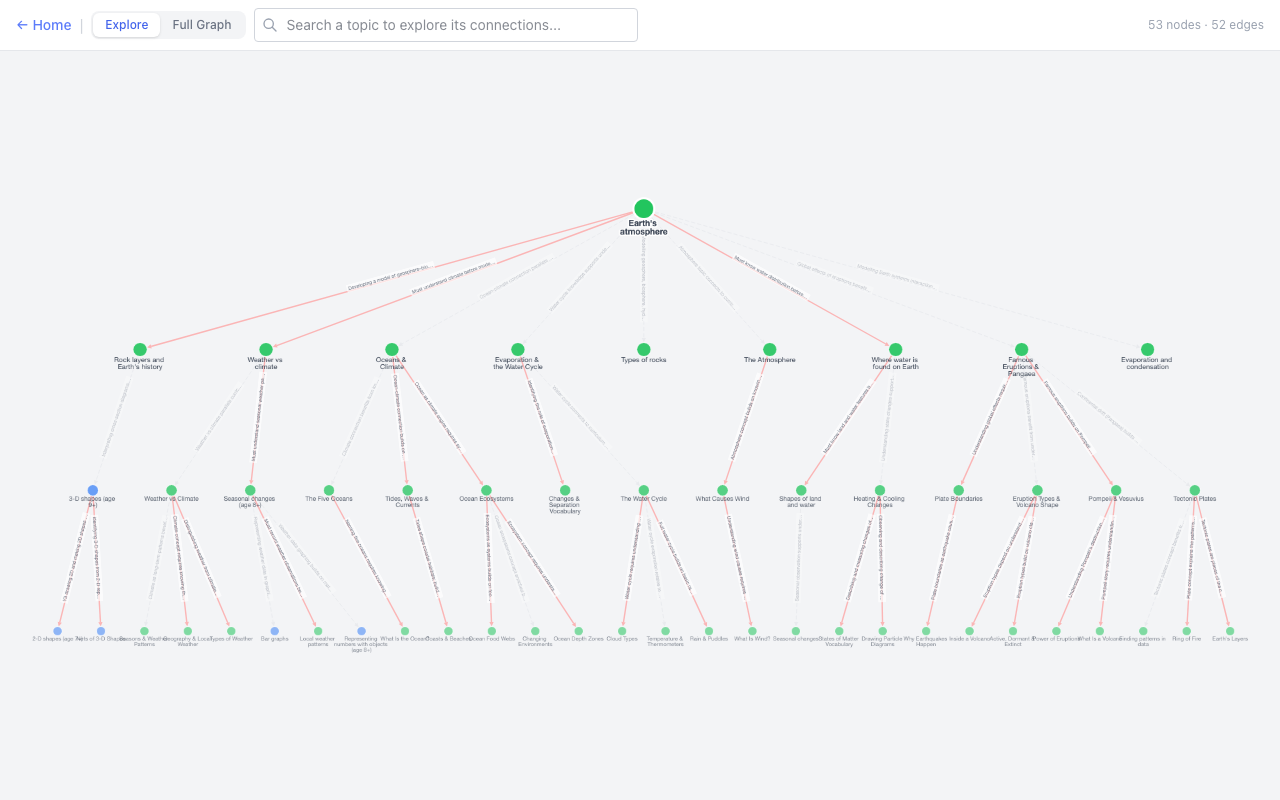

• Graph Explorer — interactive Cytoscape.js visualization with two modes:
  • Explore — search a topic to see its prerequisite chain up to 3 levels deep, with edge labels showing why each dependency exists
  • Full Graph — filter by subject, trace prerequisites, find shortest paths between topics

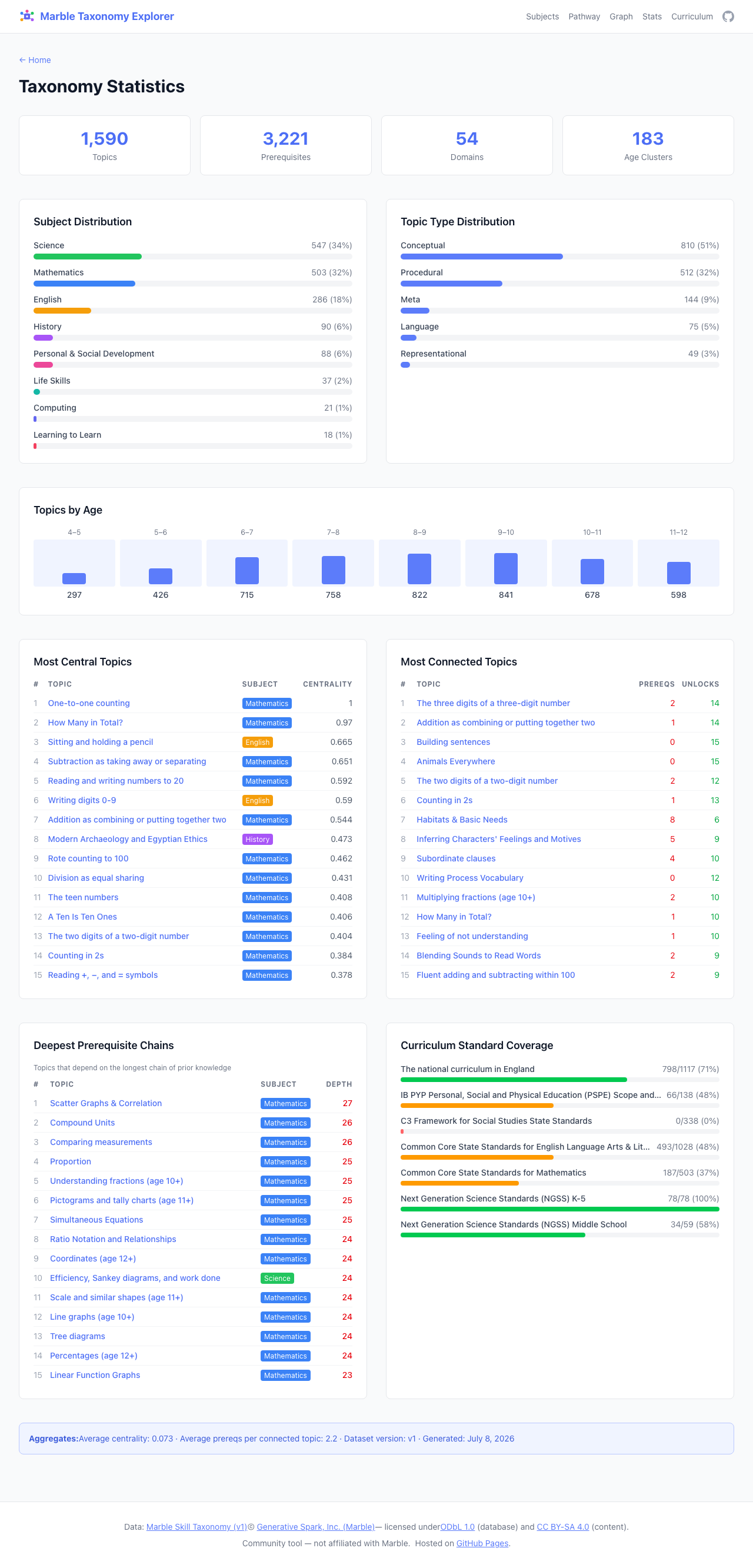

• Statistics — distribution charts, centrality rankings, deepest prerequisite chains, curriculum coverage

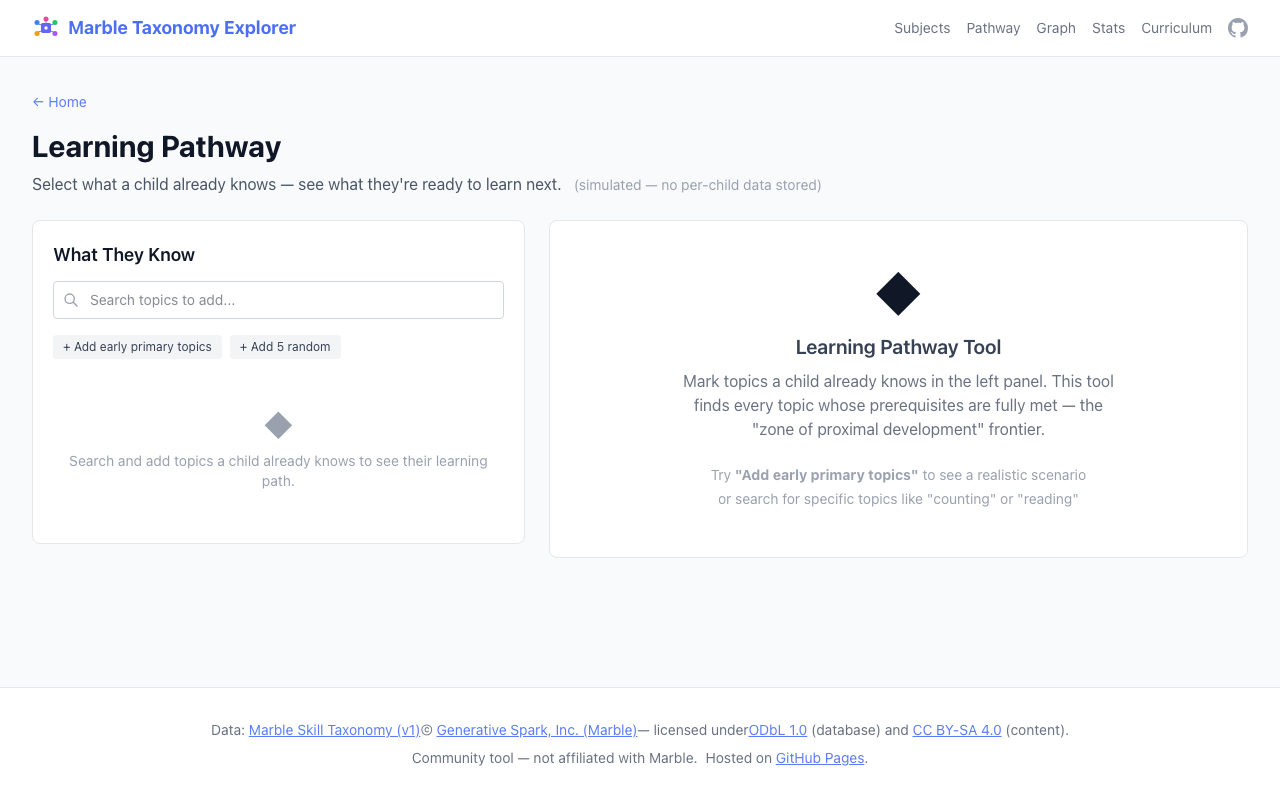

• Learning Pathway — mark known topics to see what's ready to learn next
• Curriculum — searchable standards reference with age/grade filtering

Quick Start

npm install
npm run dev

Open http://localhost:4321.

Build

npm run build

Output goes to dist/. Built site is ~1,600 static pages — no server required.

Deploy to GitHub Pages

The deploy workflow runs on every push to main and builds + deploys via withastro/action@v2. No manual setup needed — just push.

To set up from scratch:

1. Go to Settings → Pages
2. Set Source to "GitHub Actions"

Data

Taxonomy data is sourced from withmarbleapp/os-taxonomy and stored in src/data/taxonomy/data/.

Automatic updates

A sync workflow runs weekly (Sundays) and checks the upstream repo for changes. When new data is detected, it:

1. Downloads updated JSON files, schemas, and metadata
2. Runs a full build to verify nothing breaks
3. Opens a PR with the changes

After reviewing and merging the PR, the deploy workflow pushes the updated site to GitHub Pages.

You can also trigger a sync manually from the Actions tab → "Sync Upstream Taxonomy" → "Run workflow".

Manual update

rm -rf src/data/taxonomy-temp
git clone --depth=1 https://github.com/withmarbleapp/os-taxonomy.git src/data/taxonomy-temp
cp src/data/taxonomy-temp/data/*.json src/data/taxonomy/data/
cp src/data/taxonomy-temp/schema/*.json src/data/taxonomy/schema/
cp src/data/taxonomy-temp/{PROVENANCE,CHANGELOG,README}.md src/data/taxonomy/
cp src/data/taxonomy-temp/{LICENSE,LICENSE-CONTENT,CITATION.cff} src/data/taxonomy/
rm -rf src/data/taxonomy-temp
npm run build   # verify nothing broke

License

Site code

MIT

Taxonomy data

• Database (structure, IDs, relationships): ODbL 1.0
• Content (descriptions, evidence, assessment prompts, dependency reasons): CC BY-SA 4.0
• Copyright: © Generative Spark, Inc. (Marble) · https://withmarble.com

Attribution: any use must credit the Marble Skill Taxonomy (v1). See CITATION.cff for formal citation details.

For curriculum standard licensing notices, see PROVENANCE.md.

Disclaimer

Community tool — not affiliated with Marble.
