Precision Sport Year 3 Project System

This document is the complete system description for the Precision Sport Science Project (Year 3), split into System Development and Model Design.

---

System Development

Entry and Page Structure

• Entry file: app.py (Streamlit multipage)

• Main pages:

  • project_page/Home.py
  • project_page/CoLab_project.py
  • project_page/Project_2nd.py
  • project_page/project_3rd.py (key workflow for this project)

---

Quick Start

1) Install environment

pip install -r requirements.txt

2) Basic launch (UI only)

streamlit run app.py

3) GPU / inference services (optional)

If you want to use VQA / feature extraction / DVCA backend inference, start the worker services first:

bash lanuch_server.sh

After the UI starts, go to the project_3rd page to upload videos and run VQA and Highlight.

---

Year 3 Project Page: Key Workflow

File location: project_page/project_3rd.py

Feature overview

• Select built-in videos or upload a local mp4

• Sidebar shows the current video

• Main content tabs:

  • Badminton Tactic Analyst
  • Badminton Highlight Director

Video sources

• Built-in videos: selected from the GAME_INFO dictionary

• Upload your own: use st.file_uploader to upload .mp4

  • Uploaded video is temporarily stored in tmp/

---

Main Outputs and Temp Paths

• Video temp: tmp/
• TrackNet CSV: tmp_video/tracknet_csv/
• HitFrame results: tmp_hitframe/hitframe_output/

---

Backend Interfaces

project_page/project_3rd.py -> module/function_button.py

VQA APIs

• backend.load_VQA_engine
• backend.VQA_stream (token-by-token streaming)
• backend.uploaded_VQA_stream

Diversity Highlight (DVCA)

• backend.Diverse_Video_Clip_Retrieve
• backend.Diverse_Video_Clip_Sampling
• backend.Diverse_Video_Clip_Concat

---

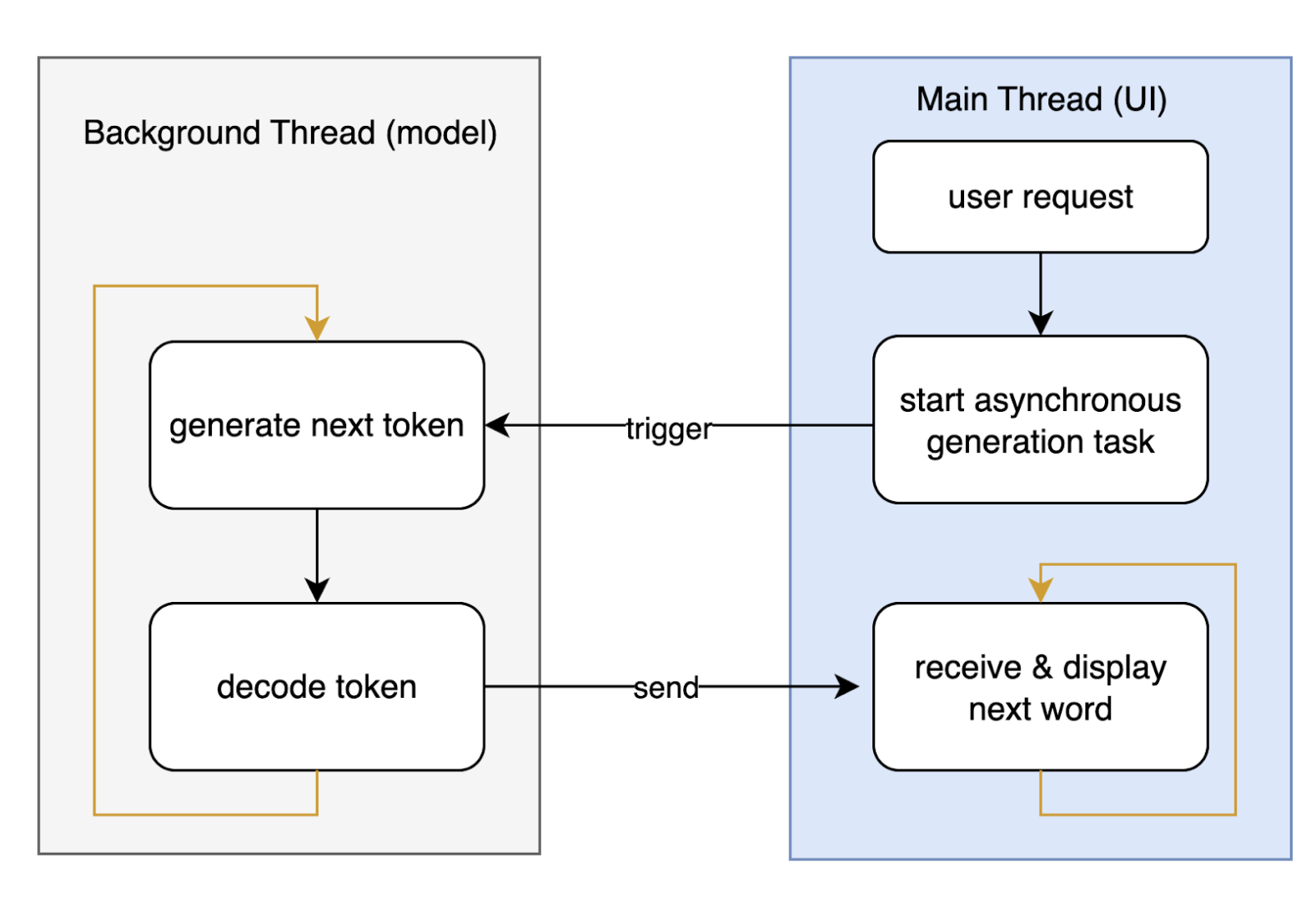

System Optimization (1): VQA_stream Logic

What engine.predict_stream does

1. After backend.VQA_stream(...) assembles clip_paths, it calls:
   • engine.predict_stream(clip_paths, prompt, task_id="default")
2. engine.predict_stream(...) returns a token generator that yields (raw_token, token_id) step by step.
3. The UI does not wait for full output; it updates the screen as each token arrives.

How the UI renders in real time

• In function_button.VQA():
  1. raw_generator = self.do_VQA_stream(vid_path, prompt)
  2. for raw_token, token_id in raw_generator: iterate token by token
  3. Parse tags on the fly: remove <thinking>, </thinking>, <answer>, </answer>
  4. Update different blocks based on state (THINKING/ANSWER)
  5. After each token, immediately call markdown(... + "▌")

Why it can be real-time

• engine.predict_stream streams tokens instead of returning a full string at once.
• Streamlit st.write_stream / markdown can refresh the UI inside the loop.

Final full decode

• The UI accumulates all token_ids and uses engine.model.t5_tokenizer.decode(...) to decode again.
• parse_and_format_response(...) cleans and normalizes the output format.

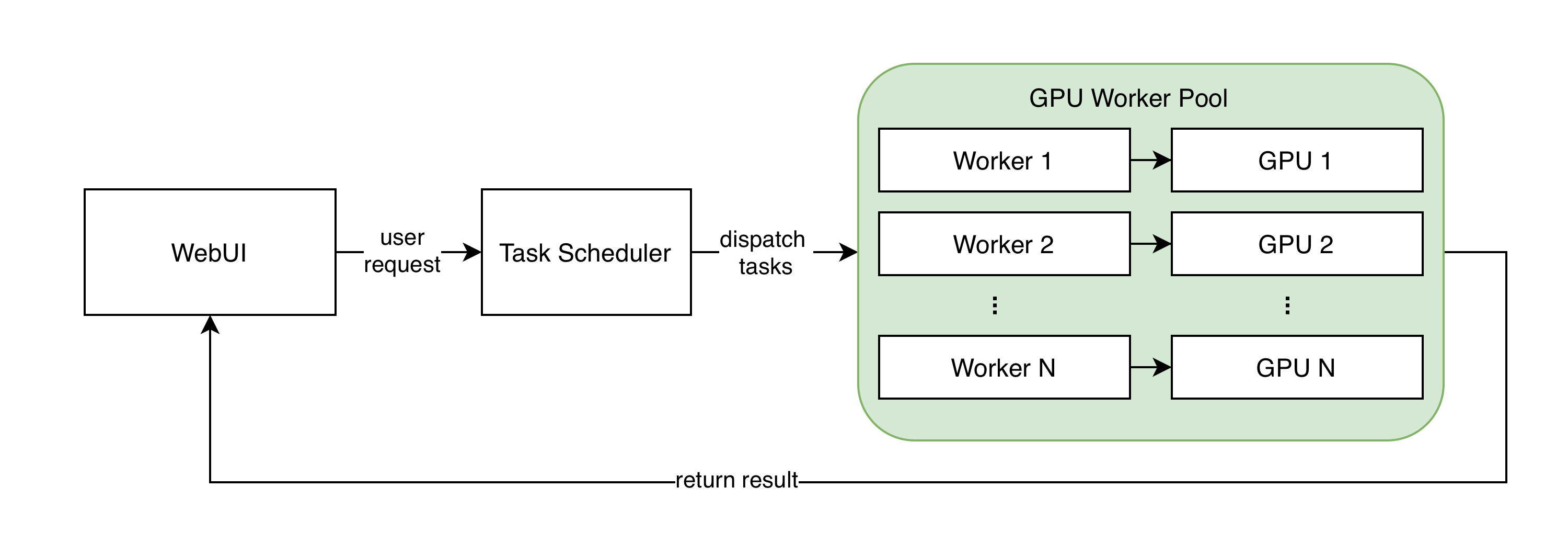

System Optimization (2): Multi-GPU Inference

This project uses "multiple worker processes + one GPU per worker", with HTTP load sharing in parallel.

Worker startup (GPU binding)

lanuch_server.sh starts multiple FastAPI workers with different CUDA_VISIBLE_DEVICES (e.g., 8001–8005):

CUDA_VISIBLE_DEVICES=1 uvicorn worker_service:app --host 0.0.0.0 --port 8001 --workers 1 &
CUDA_VISIBLE_DEVICES=2 uvicorn worker_service:app --host 0.0.0.0 --port 8002 --workers 1 &
...

Worker endpoints and responsibilities (worker_service.py)

• /predict: VQA inference (ENGINE.predict(...))
• /encode_features: feature extraction (FE.encode_video(...))

In worker_service.py, _DEVICE="cuda:0"; but since each process only sees one GPU (limited by CUDA_VISIBLE_DEVICES), it effectively binds to the assigned GPU.

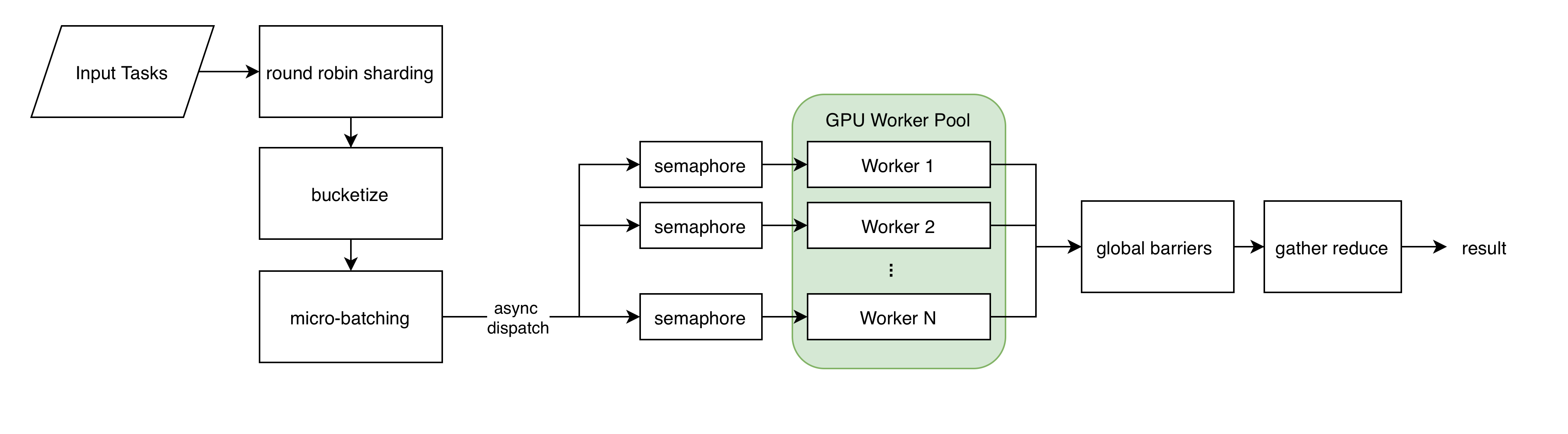

Distributed VQA inference (diversity/pipeline/retriever_client.py)

Distributed flow (VQA / Temporal Grounding example):

1. Discover available workers
   • Probe each worker and collect reachable ones (defaults 8001–8007).
2. Sharding
   • Round-robin distribute questions/clip indices across workers to balance load.
3. Bucketize by K
   • Group samples per worker by K so each batch has similar K, reducing padding.
4. Micro-batching
   • Split each worker's samples into micro-batches by batch_size_per_worker.
5. Async parallelism + flow control
   • Send requests asynchronously; each worker caps concurrent batches with max_in_flight to avoid GPU spikes.
6. Retry and collect results
   • Failed batches retry (with backoff); collect all results and restore original order by index.

Distributed feature extraction (diversity/pipeline/feature_extract_client.py)

Distributed flow:

1. Discover available workers (same as VQA).
2. Round-robin split video paths to each worker.
3. Each worker forms micro-batches with batch_size_per_worker and sends them.
4. Collect all features, restore order by index, and compose [N, D].

System Demo

---

Model Design: VQA Model Architecture

The core goal is to align natural language queries to semantic events and time segments in badminton match videos, especially fine-grained actions like stroke / rally.

The model uses a three-stage training strategy (Stage 0–2), progressively building action-aware visual representations -> vision-language alignment -> semantic temporal localization reasoning.

---

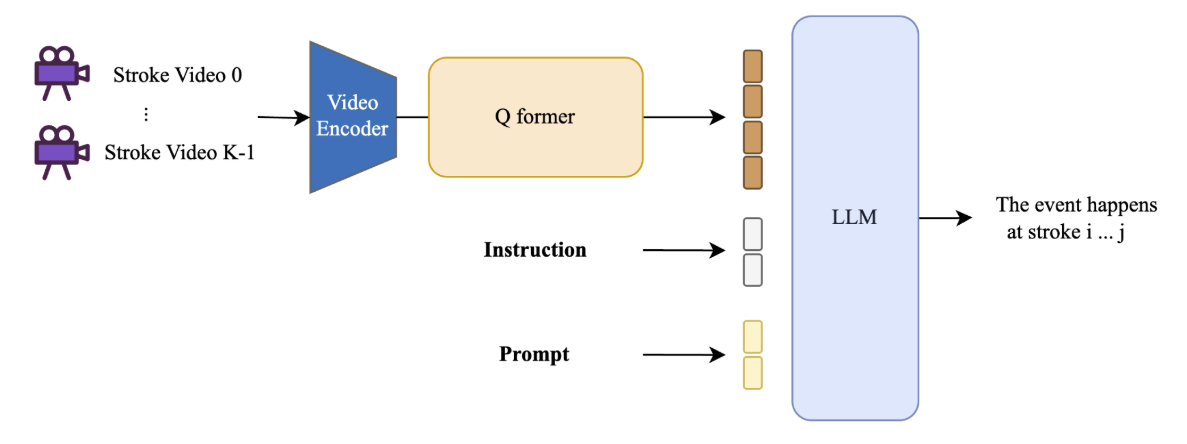

Overall Architecture Overview

The model consists of three main modules:

1. Visual Encoder:

   • Converts video frame sequences into high-dimensional visual token representations.
   • Serves as the visual backbone for all downstream modules.

2. Q-former:

   • Uses learnable query tokens to extract key semantic information from visual features.
   • Effectively compresses long videos before passing to the LLM.

3. LLM:

   • Performs high-level semantic reasoning and natural language answer generation.
   • Outputs event descriptions and implicit temporal localization results.
