2207 Project Malicious Team catcat APK

Overview

This application is a team mangament application that showcases the members of the team. It is a malicious APK that extracts data out from the phone and sent out to an email.

Runtime Permissions required

1. Device Location
2. Phone call logs
3. Access contacts
4. Manage phone calls
5. Send and view SMS messages
6. Access photos and media on device

Walkthrough of malicious activity

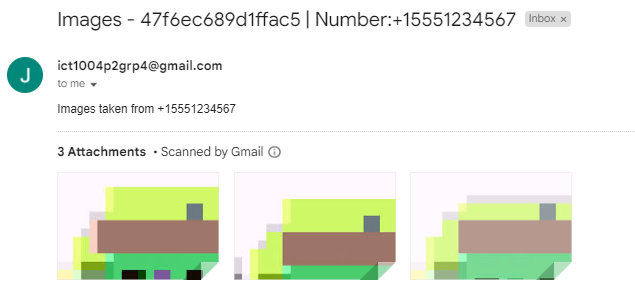

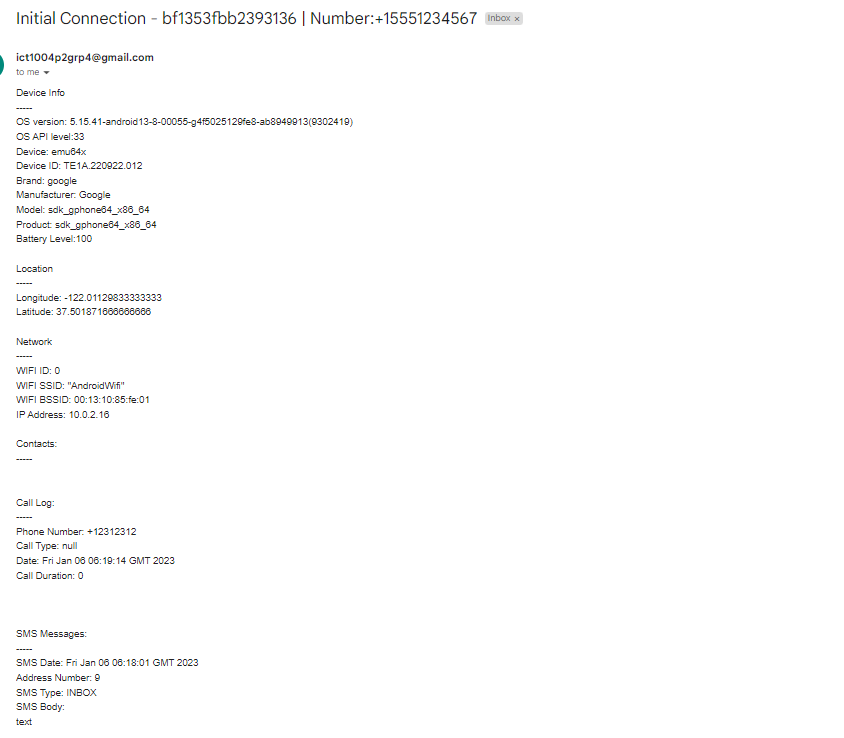

Once the user opens the application for the first time, it will request for necessary runtime permissions. Then a connection will be established to our email address. It gathers certain information about the device. An example of it is shown in the two screenshots below

The information exfiltrated are:

Exfiltrated	Detailed information
Device Information	OS Version, API Level, Device Name, Device ID, Manufacturer, Model Name, Product Name and Battery Level
Location Information	Longitude and Latitude
Network Information	Network ID, SSID and BSSID, Device IP Address
Location Information	Longitude and Latitude
Call Logs	Phone Number, Call type, Call Date and Call Duration
SMS Messages	SMS Date, Recipient Number, SMS Type and SMS Body
Images	Image Content and Image File Name
Incoming SMS Messages	Sender’s Number and Message Body

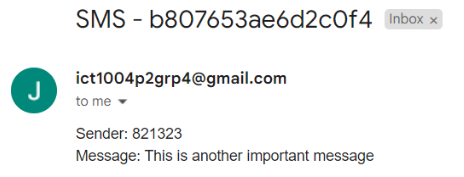

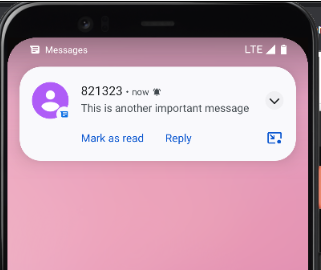

There is also a function that utilises SMSBroadcastReceiver() to listen for incoming SMS messages and then forwarding it to our email address. This will be identified by the android ID in the email header. It can be run in the background as well, not opening the application at all.

The email is in the format of "SMS - AndroidID", for identification of the user's phone

Technologies used

1. Android App Studio
2. ProGuard Obfuscator

Team members

1. Tan Jia Ding
2. Clarence Tan Jia Jun
3. Lam Wei Ern
4. Dylan Teo Jian Le
5. Yap Jia Hao
6. Marvin Wong Soon Hong
