Please follow the instructor's directives to install Qt 6 on your system. Note that the installation involves several steps and may require a significant amount of time. It is advisable to start this process as soon as possible and also contact your instructors as soon as possible in case of problems. Failure to complete the library setup in time could hinder your ability to complete and submit the practical tasks by their deadlines. Please be aware that no extensions will be granted, and failing to set up the library will result in a zero for all online and offline assessments.
The checkpoints will be graded based on the output of your programs, the correctness of the structure of your repository, and the style of your code. You may be penalized and receive a lower grade if the printed text by your program does not match (wrong letters, additional spaces, or newlines, incorrectly computed result) the correct one. Please check your code and output before submitting it to GitHub or Moodle. Ensure the outcome of your program matches the specified output on this page. Do not forget to print a \n control sequence to go to a new line after the last message from your program. Format real numbers precisely to the number of decimal places specified in the sample output. Ensure that your code style is consistent, meaning the code is properly indented, groups of code are separated by blank lines, variable names are consistent in naming style, and describe in a compact manner the data stored in them. Your files and directories must be properly named as per the requirements outlined at the bottom of the page. Moreover, your repository should not contain additional files with unrelated code, especially within the folder designated for lab tasks. If you are told to use a particular function, you must base your solution on that function even if there exists a better solution without the use of it. Do not hesitate to contact your practice instructor if you have any questions.

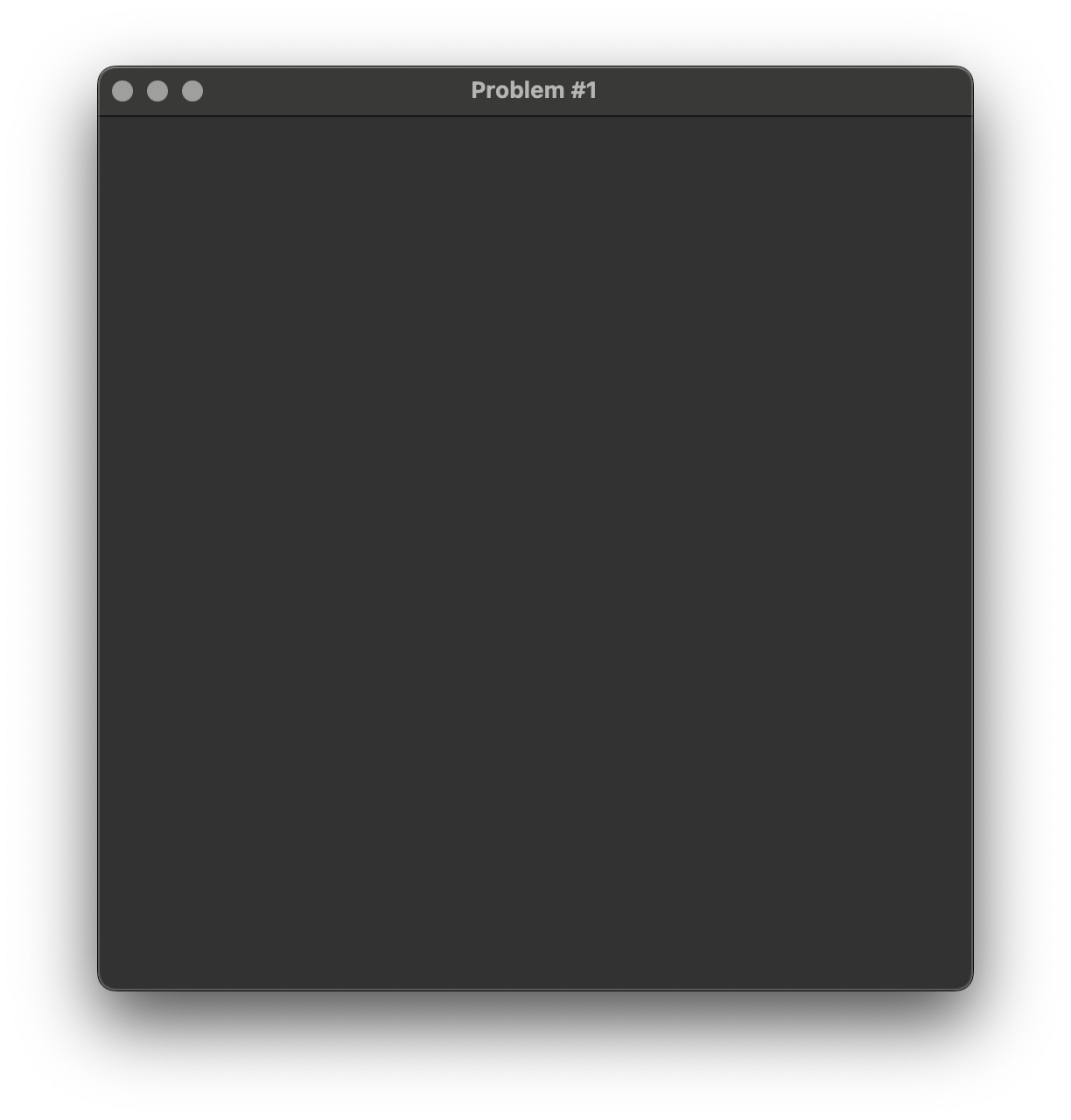

Create an application using Qt 6 that opens an empty window, sized 500 by 500 pixels, with the title 'Problem #1'.

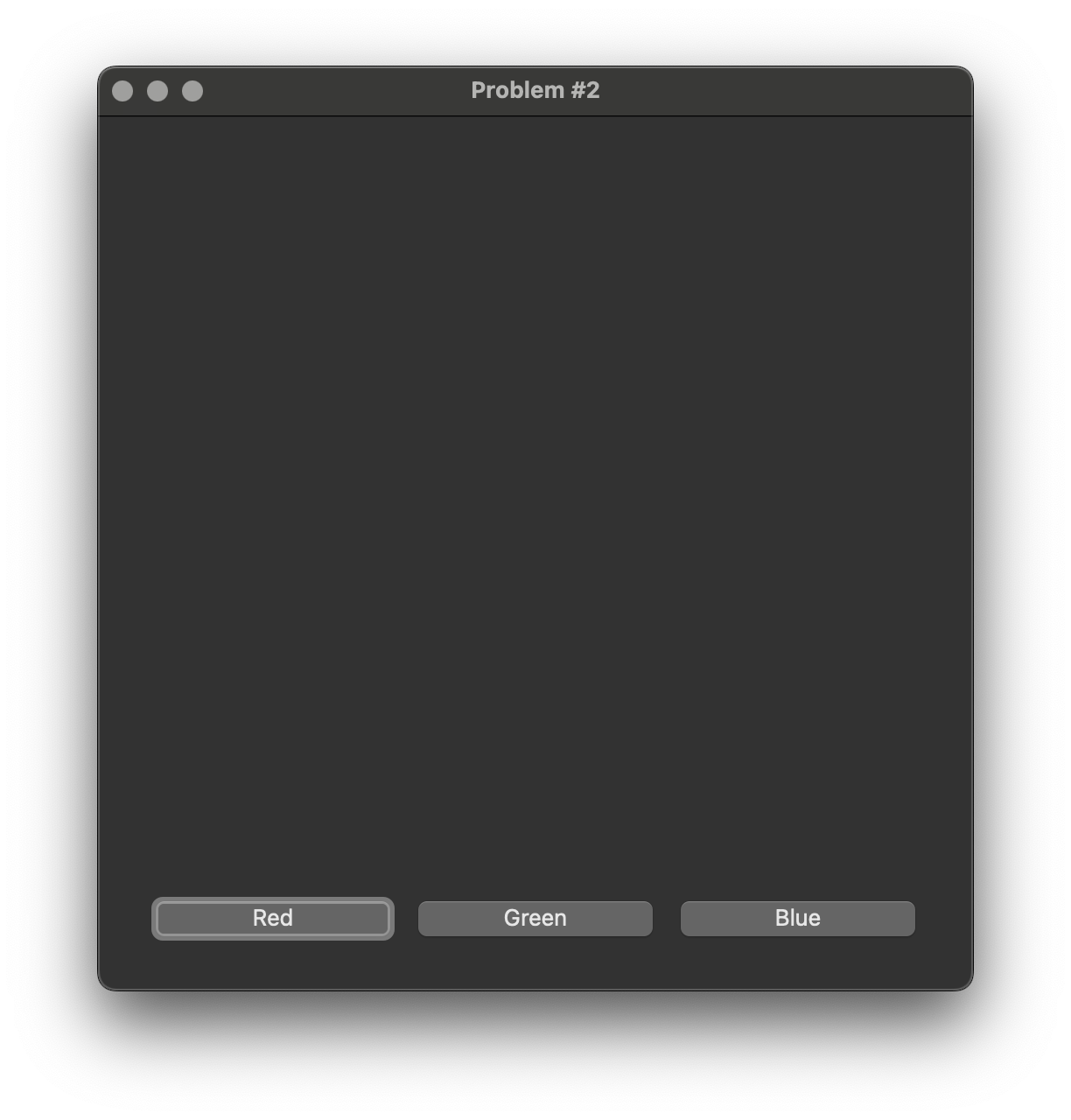

Create a new application using Qt 6 by copying the code from Problem #1. Modify the code to include three buttons titled 'Red', 'Green', and 'Blue' at the bottom of the window. These buttons should be clickable but do not need to perform any actions yet. Remember to update the window title to 'Problem #2'.

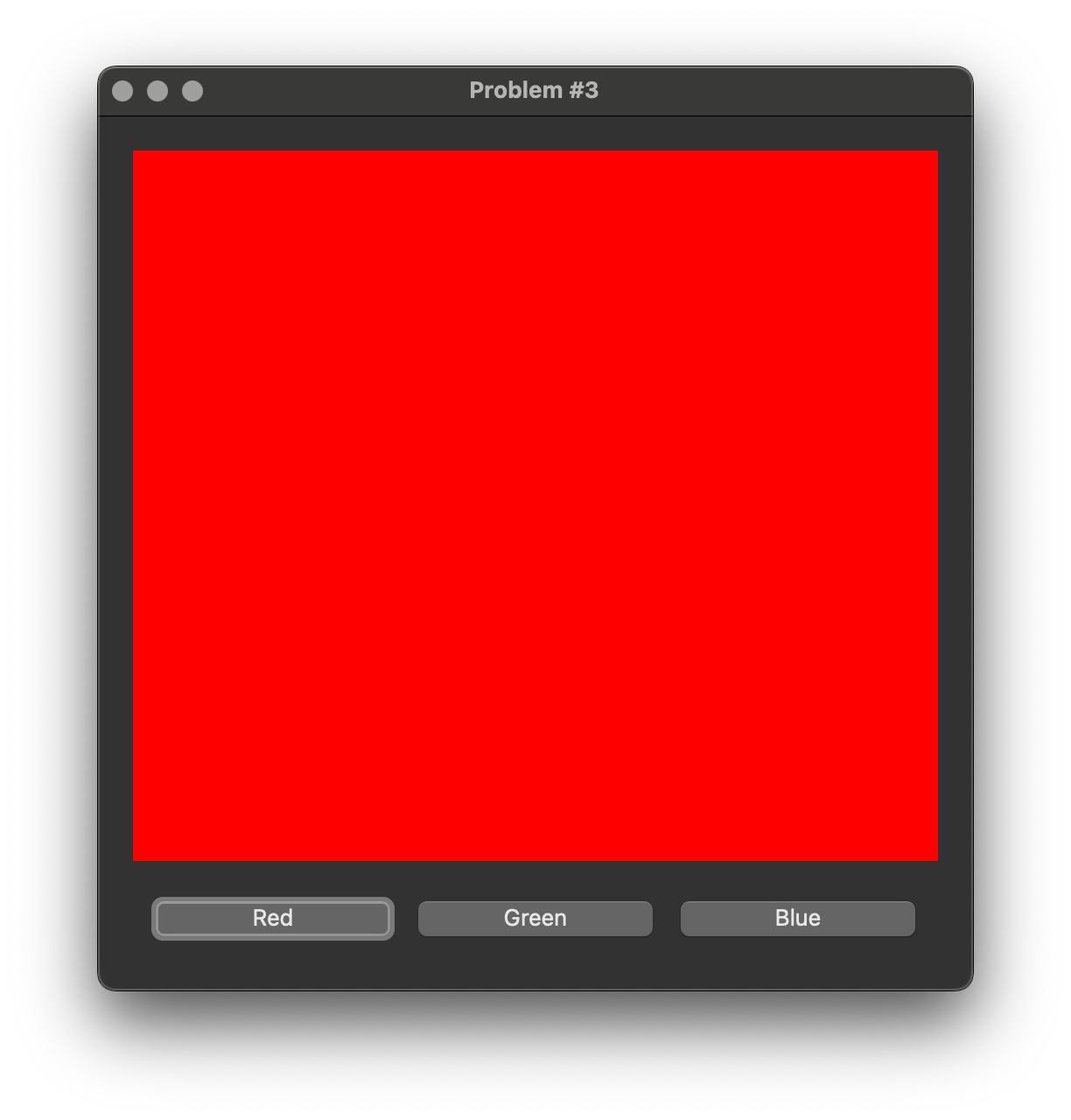

Create a new application using Qt 6 by duplicating the code from Problem #2. Modify this code so that clicking the buttons changes the window's background color to red, green, or blue, depending on the button clicked. Remember to update the window title to 'Problem #3'.

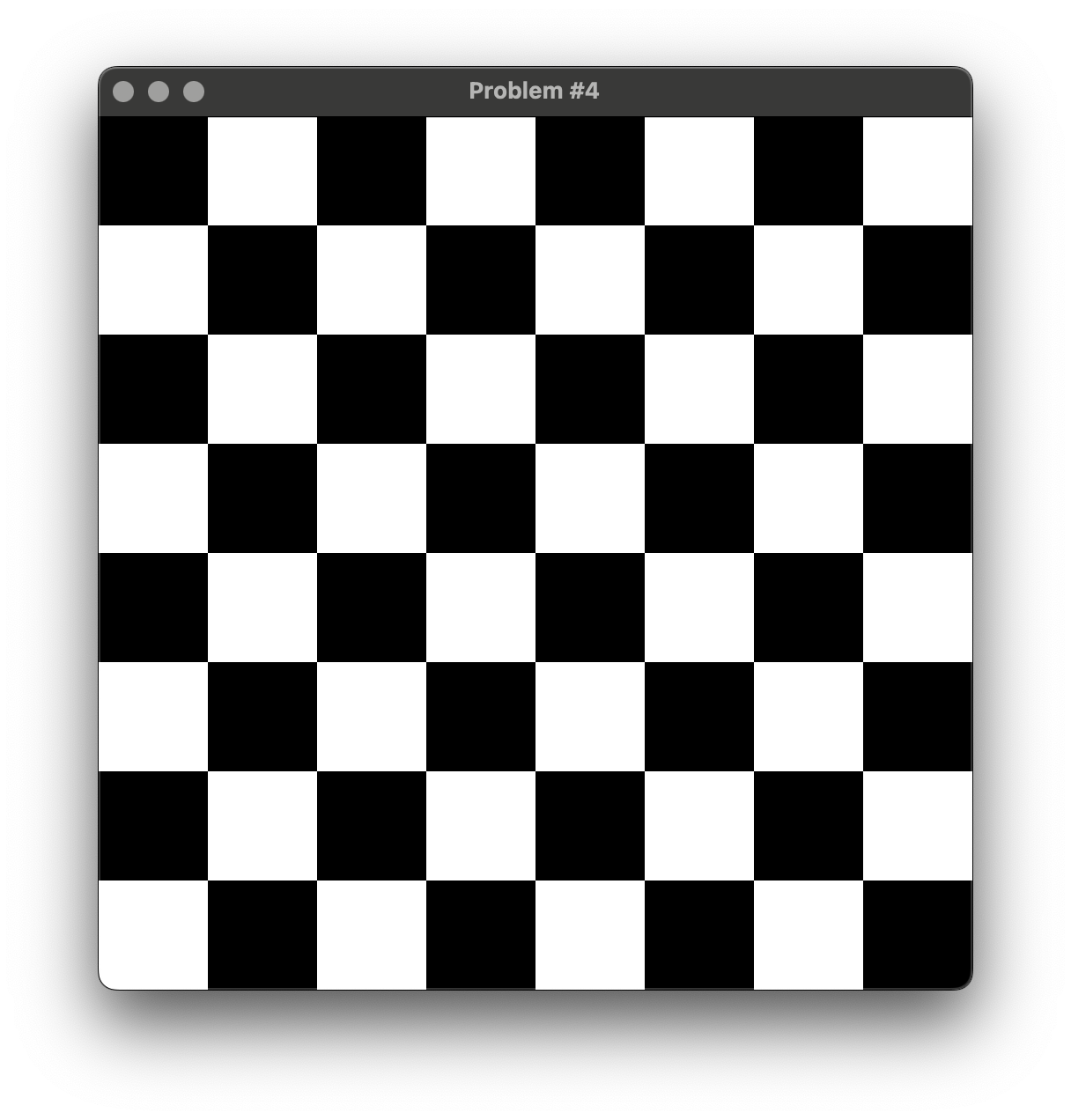

Create a new application using Qt 6 by copying the code from Problem #1. Draw an 8x8 chessboard at the center of the window, ensuring there are reasonable margins around it. The chessboard should automatically scale while maintaining its proportions upon window resizing. Set the window's title to 'Problem #4'.

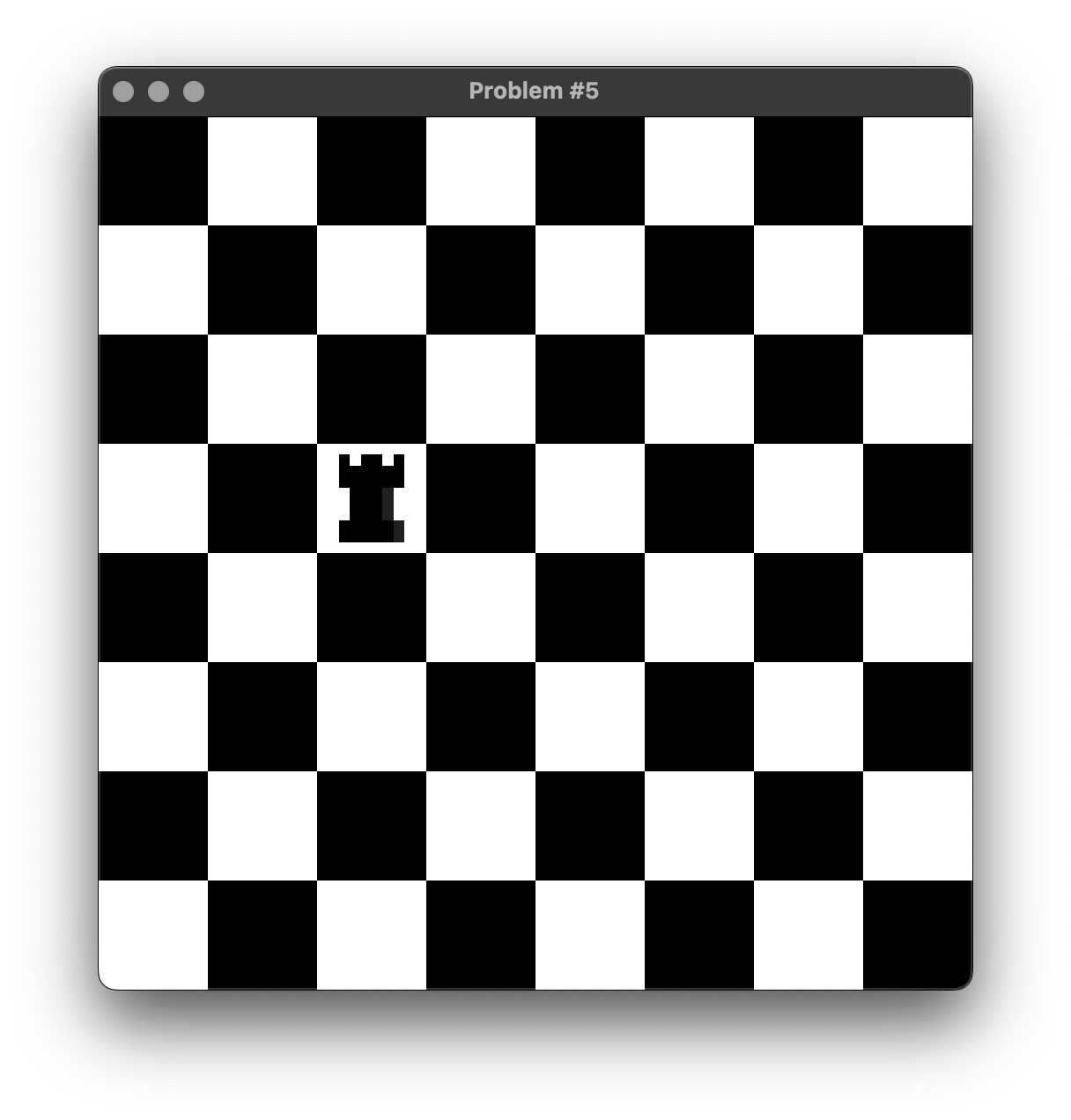

Create a new application using Qt 6 by copying the code from Problem #4. Display an image of a rook by utilizing rook.png, which is located in the data directory, positioning it on the board at coordinates 0,0 (equivalent to square 8a on a chessboard). Enable user interaction to move the rook using the keyboard arrows: up, down, right, and left.
Read Introduction to C++ Programming, 3rd Edition by Y. Daniel Liang, Chapter 9, 10, 11, 12, 14, 15, 16
Upon completion of all assignments, your repository should look like this:
. (.idea, .gitignore, CMakeLists.txt, Readme.md)
├── data...
├── problem1.cpp
├── problem2.cpp
├── problem3.cpp
├── problem4.cpp
└── problem5.cpp
If the files with assignments are named incorrectly, you will be penalized.
class: https://en.cppreference.com/w/cpp/language/classconstructor: https://en.cppreference.com/w/cpp/language/constructorthis: https://en.cppreference.com/w/cpp/language/thisaccess-specifier: https://en.cppreference.com/w/cpp/language/accessstatic: https://en.cppreference.com/w/cpp/language/staticthrow: https://en.cppreference.com/w/cpp/language/throwtry-block: https://en.cppreference.com/w/cpp/language/try_catchstdexcept: https://en.cppreference.com/w/cpp/header/stdexceptoperator overloading: https://en.cppreference.com/w/cpp/language/operatorsfriend: https://en.cppreference.com/w/cpp/language/friendstd::stack: https://en.cppreference.com/w/cpp/container/stackstd::vector: https://en.cppreference.com/w/cpp/container/vectordestructors: https://en.cppreference.com/w/cpp/language/destructorcopy constructor: https://en.cppreference.com/w/cpp/language/copy_constructormove constructor: https://en.cppreference.com/w/cpp/language/move_constructorcopy assignment operator: https://en.cppreference.com/w/cpp/language/copy_assignmentmove assignment operator: https://en.cppreference.com/w/cpp/language/move_assignmentrule of three/five/zero: https://en.cppreference.com/w/cpp/language/rule_of_threetemplate: https://en.cppreference.com/w/cpp/language/templatesderived classes: https://en.cppreference.com/w/cpp/language/derived_class
