Drag & Drop Card for Home Assistant

Build responsive Home Assistant dashboards visually — drag, resize, layer, and arrange Lovelace cards exactly where you want them.

Start guide · Installation · Configuration · HADS · Releases

Drag & Drop Card is a freeform canvas for the Home Assistant Lovelace UI. Arrange any compatible card visually, create responsive layouts for different devices, save or share complete designs, and turn a dashboard into a polished full-screen experience.

New here? Follow the illustrated HADS start guide for the fastest path from installation to your first dashboard. This README is the detailed reference for configuration and advanced features.

📑 Contents

• Features
• Installation
• Persistence backend
• Quick start
• Dashboard mode
• Configuration options
• LLM dashboard authoring
• Editor shortcuts
• Troubleshooting
• Contributing
• Support the project

---

✨ Features

• Visual editing: drag, resize, stack, multi-select, and snap Lovelace cards to a configurable grid.
• Responsive layouts: design for desktop, tablet, mobile, portrait, and landscape from the same dashboard.
• Tabs, layers, and Sidebar: organize large dashboards without giving up a free-positioned canvas.
• Fast editing workflow: auto-save or apply manually, use keyboard shortcuts, undo layout changes, and edit through the built-in toolbar.
• Portable designs: export and import complete JSON layouts, individual cards, options, responsive variants, and Home Assistant packages.
• Rich presentation: use images, particles, YouTube backgrounds, animated connectors, card entrance animations, and an optional screen saver.
• Home Assistant integration: add the card through the native card picker or register it as a discoverable community dashboard on supported Home Assistant versions.
• Design ecosystem: browse and import community designs from HADS and style the outer card with card-mod.
• Self-contained bundle: interactjs and js-yaml are bundled; no runtime CDN is required.

---

📦 Installation

Option A: HACS (recommended)

1. In HACS, open the menu and choose Custom repositories.
2. Add https://github.com/Prosono/Drag-And-Drop-Card with Dashboard as the category.
3. Search for Drag & Drop Card, open it, and select Download.
4. Reload Home Assistant and hard-refresh the browser if the card does not appear immediately.

The card is now available in Home Assistant's native card picker. On Home Assistant 2026.5 or newer, it also appears under Settings → Dashboards → Add dashboard → Community dashboards as Drag & Drop Dashboard.

Option B: Manual

1. Download the compiled dist/drag-and-drop-card.js file.
2. Copy it to /config/www/drag-and-drop-card.js.
3. Add it under Settings → Dashboards → Resources, or add the Lovelace resource in YAML:

url: /local/drag-and-drop-card.js
type: module

After adding a new resource, clear browser cache or hard-reload to ensure the module loads.

---

🔁 Persistence backend

Recommended: Install the Drag & Drop Card Backend to keep editor changes in Home Assistant, make layouts available across browsers and devices, and sync optional packages.

Without the backend, the card falls back to browser localStorage. That is useful for testing, but the layout remains tied to that browser profile and can be lost when site data is cleared.

---

🚀 Quick Start

Add a Drag & Drop Card to your dashboard using YAML:

type: custom:drag-and-drop-card
storage_key: livingroom_layout         # unique key per canvas
grid: 20                               # pixel grid size (default editor stub)
drag_live_snap: true                   # snap while dragging/resizing
auto_save: true                        # auto-save after edits
auto_save_debounce: 800                # ms debounce
container_size_mode: auto              # auto | fixed_custom | preset
container_background: transparent      # canvas background
card_background: var(--ha-card-background, var(--card-background-color))
disable_overlap: false                 # prevent overlapping when true
background_mode: none                  # none | image | particles | youtube
debug: false                           # verbose console logs

Now:

• Long-press on blank canvas (≈1s) or double-click an empty area to enter Edit Mode.
• Use the toolbar to Add cards, Import/Export, Apply, or Exit edit mode.
• Ctrl/Cmd + S applies (saves) the layout while in edit mode.
• Esc exits edit mode.

🧩 Add as a Dashboard

Home Assistant 2026.5 introduced discoverable community dashboard strategies. This card registers a dashboard strategy named Drag & Drop Dashboard, so after the resource is loaded you can create a new dashboard from the Add dashboard dialog instead of starting from an empty dashboard and adding the card manually.

The generated dashboard contains a single panel view with one full-width Drag & Drop Card. You can also use the strategy in YAML:

strategy:
  type: custom:drag-and-drop-card
  title: Drag & Drop Dashboard
  storage_key: my_drag_drop_dashboard

Optional strategy settings:

Key	Type	Description
title	string	Dashboard title used by the generated dashboard.
storage_key	string	Persistent Drag & Drop Card layout key. If omitted, one is derived from the dashboard details.
view_title	string	Title for the generated panel view. Defaults to Home.
view_path	string	URL path for the generated view. Defaults to home.
view_icon	string	Icon for the generated view. Defaults to mdi:home.
card	object	Extra Drag & Drop Card options merged into the generated card.

---

🧭 Tabs

You can define multiple tabs inside a single Drag & Drop card. Each tab has its own layout.

type: custom:drag-and-drop-card
storage_key: multi_tab_example
tabs:
  - id: home
    label: Home
    icon: mdi:home
    label_mode: both     # icon | label | both
  - id: media
    label: Media
    icon: mdi:television
    label_mode: icon
default_tab: home
hide_tabs_when_single: true

• The card remembers the last active tab per storage_key.
• Reorder tabs with the up/down controls in Dashboard Settings → Tabs.
• When there is only one tab and hide_tabs_when_single: true, the tab bar is hidden.

---

🎆 Backgrounds

Background behavior is controlled by background_mode:

• none (default): no special background.
• image: uses background_image.
• particles: uses background_particles.
• youtube: uses background_youtube.

Image background

type: custom:drag-and-drop-card
storage_key: fancy_bg
background_mode: image
background_image:
  src: /media/your/folder/background.png  # or any HA-accessible URL
  size: cover                             # cover | contain | 100% 100% | …
  position: center center                 # CSS background-position
  repeat: false                           # true | false | 'repeat'
  opacity: 0.85                           # 0–1
  attachment: scroll                      # scroll | fixed
  filter: blur(4px) brightness(0.8)       # CSS filter() chain

Particle background (advanced)

background_mode: particles
background_particles:
  preset: default   # implementation-specific; see docs/updates if provided
  # Additional particle config may be supported in future versions.

YouTube background (advanced)

background_mode: youtube
background_youtube:
  video_id: dQw4w9WgXcQ      # YouTube video id
  mute: true
  loop: true
  start: 0
  end: 0                     # 0 = entire video
  size: cover                # cover | contain | fill
  attachment: fixed          # fixed | scroll

Exact options for particles and YouTube are implementation-oriented; the above gives the general structure used by the card.

---

💤 Screen Saver

Optional screen saver that activates after inactivity:

screen_saver_enabled: true
screen_saver_delay: 300000   # milliseconds (e.g. 300000 = 5 minutes)
screen_saver_image: /local/screensaver.jpg

When enabled, the card will enter a “screen saver” state after the delay. You can use the built-in visual presets or set screen_saver_image to replace the preset background with your own uploaded image, Home Assistant media URL, or external image URL.

---

⚙️ Configuration Options

Below is a summary of the main configuration options. Many have reasonable defaults and only need to be set when you want custom behavior.

Key	Type	Default	Description
storage_key	string	auto	Unique ID for storing this canvas’ layout. If omitted, one is generated.
grid	number	10	Grid size in px used for snapping and guides. New cards created via the stub start at 20.
drag_live_snap	boolean	false	Snap while dragging/resizing (live feedback).
auto_save	boolean	true	Automatically save changes.
auto_save_debounce	number	800	Debounce window (ms) for auto-save.
container_size_mode	string	auto	auto (responsive scaled canvas), fixed_custom, or preset. Legacy dynamic configs are automatically migrated to auto.
container_fixed_width	number	null	Fixed width (px) when fixed_custom.
container_fixed_height	number	null	Fixed height (px) when fixed_custom.
container_preset	string	fhd / fullhd	Device/display preset key (see below) when preset.
container_preset_orientation	string	auto	auto | portrait | landscape.
auto_viewport_max_width	number	0	Caps the live Auto canvas viewport width in px. 0 or empty keeps the old unlimited behavior.
auto_scale_max	number	0	Caps the live Auto canvas scale. 0 or empty keeps the old unlimited behavior.
container_background	string	transparent	Canvas background (e.g. color/gradient).
card_background	string	var(--ha-card-background, var(--card-background-color))	Default background for wrapped cards.
disable_overlap	boolean	false	If true, prevents overlapping during edit (experimental - NOT RECCOMENDED WHEN USING TABS!).
animate_cards	boolean	false	If true, cards animate in when switching tabs or loading.
background_mode	string	none	none | image | particles | youtube.
background_image	object	none	Image background settings when background_mode: image.
background_particles	object	none	Particle background settings when background_mode: particles.
background_youtube	object	none	YouTube background settings when background_mode: youtube.
screen_saver_enabled	boolean	false	Enable screen saver mode.
screen_saver_delay	number	300000	Screen saver delay in ms (fallback to 5 minutes if invalid).
screen_saver_image	string	none	Optional custom screen saver background image URL or uploaded data URL.
tabs	array	[]	Tab definitions (see Tabs section).
default_tab	string	first tab id / 'default'	Default tab id when the card loads.
hide_tabs_when_single	boolean	true	Hide tab bar when there is only one tab.
card_shadow	boolean	false	Apply a drop shadow to card wrappers.
hide_HA_Header	boolean	false	Hide the Home Assistant top header while in this card.
hide_HA_Sidebar	boolean	false	Hide the Home Assistant sidebar while in this card.
edit_mode_pin	string	''	Optional PIN required to enter edit mode (via supported UI).
debug	boolean	false	Extra logging to the console.
card_mod	object	none	Card-mod config for the main card.
cards	array	none	Initial child cards (see below).

Preset Keys (examples)

• Phones: iphone-14-pro, iphone-14-pro-max, iphone-se-2, pixel-7, galaxy-s8, galaxy-s20-ultra
• Tablets: ipad-9-7, ipad-11-pro, ipad-12-9-pro, surface-go-3
• Desktops: hd, wxga-plus, fhd, qhd, ultrawide-uwqhd, uhd-4k

You can switch size mode at any time; the canvas will re-render accordingly.

---

🧱 Adding Cards

Use the Add button in edit mode to pick from standard Lovelace cards or drag across an area to add a card directly to the grid.

Each added card is wrapped in a draggable/resizable container that participates in snapping and layout persistence.

---

💾 Persistence & Storage

• Layouts are saved per storage_key.
• Primary storage uses Home Assistant’s backend integration when available; otherwise falls back to localStorage (ddc_local_<storage_key>) in the browser.
• When backend becomes available, local layouts are migrated automatically.
• Auto-save is enabled by default; you can also use the Apply button or Ctrl/Cmd + S in edit mode for manual saves.

---

📤 Export / 📥 Import

• Export produces a JSON file with version, options, and cards.
• Import reads JSON, applies options (including card_mod, tab definitions, etc.), rebuilds the canvas, and keeps your storage_key intact.

---

🤖 LLM Dashboard Authoring Reference

This section is written to make it easy for an LLM, agent, or automation tool to generate valid importable Drag & Drop Card dashboards without reverse-engineering the source code.

Purpose

When generating a dashboard JSON for Drag & Drop Card, the model should think in five layers:

1. options: dashboard-level behavior and styling
2. cards: the desktop/base layout entries
3. responsive_layouts: per-device or per-orientation variants
4. responsive_connectors inside options: animated line overlays between items
5. packages: optional Home Assistant YAML bundles synced by the backend

Top-level JSON shape

An importable dashboard JSON should follow this structure:

{
  "version": 3,
  "options": {},
  "cards": [],
  "responsive_layouts": {},
  "packages": []
}

Minimal working example

{
  "version": 3,
  "options": {
    "grid": 20,
    "auto_save": true,
    "container_size_mode": "auto",
    "tabs": [
      { "id": "overview", "label": "Overview", "icon": "mdi:view-dashboard" }
    ],
    "default_tab": "overview",
    "hide_tabs_when_single": true
  },
  "cards": [
    {
      "id": "layout_card_title",
      "card": {
        "type": "custom:ddc-text-card",
        "text": "Hello dashboard",
        "variant": "title"
      },
      "position": { "x": 40, "y": 40 },
      "size": { "width": 420, "height": 120 },
      "z": 6,
      "tabId": "overview"
    }
  ],
  "responsive_layouts": {
    "desktop": {
      "cards": [],
      "landscape": { "cards": [] }
    },
    "tablet": {
      "cards": [],
      "landscape": { "cards": [] },
      "portrait": { "cards": [] }
    },
    "mobile": {
      "cards": [],
      "landscape": { "cards": [] },
      "portrait": { "cards": [] }
    }
  },
  "packages": []
}

Card entry format

Each dashboard item is stored as a layout entry:

{
  "id": "layout_card_1",
  "card": {
    "type": "entities",
    "title": "Example"
  },
  "position": { "x": 0, "y": 0 },
  "size": { "width": 280, "height": 180 },
  "z": 6,
  "tabId": "overview",
  "layerIds": ["standard"],
  "card_style": {
    "connector_anchors": "off"
  },
  "overflow": "visible"
}

Important notes

• id should be unique within the dashboard.
• position and size are in canvas pixels.
• z should usually start at 6 or higher.
• tabId controls which tab the card belongs to.
• layerIds is optional. If omitted, the card remains visible for backward compatibility.
• card_style is optional and contains per-card design overrides. Set connector_anchors to off to hide that card's four editing anchors without removing existing connectors.

Responsive layouts

cards at the top level acts as the desktop/base layout.

responsive_layouts allows separate variants for:

• desktop.landscape
• tablet.landscape
• tablet.portrait
• mobile.landscape
• mobile.portrait

Recommended shape:

{
  "responsive_layouts": {
    "desktop": {
      "cards": [/* desktop landscape cards */],
      "landscape": { "cards": [/* desktop landscape cards */] }
    },
    "tablet": {
      "cards": [/* tablet landscape fallback */],
      "landscape": { "cards": [/* tablet landscape cards */] },
      "portrait": { "cards": [/* tablet portrait cards */] }
    },
    "mobile": {
      "cards": [/* mobile landscape fallback */],
      "landscape": { "cards": [/* mobile landscape cards */] },
      "portrait": { "cards": [/* mobile portrait cards */] }
    }
  }
}

Best practice for LLMs

• Treat portrait and landscape as separate layouts for tablet and mobile.
• If the same card exists in multiple profiles, keep the same id but allow different position and size.
• New dashboards should usually define at least:
  • one desktop layout
  • one mobile portrait layout
  • one tablet landscape layout

Dashboard options most relevant to generation

These are the most important option keys for an LLM to know:

Key	Type	Meaning
grid	number	Snap size in px
drag_live_snap	boolean	Snap during drag/resize
auto_save	boolean	Save automatically
auto_save_debounce	number	Auto-save delay in ms
container_size_mode	string	auto, fixed_custom, preset
auto_viewport_max_width	number	Maximum live Auto viewport width in px; 0 means unlimited
auto_scale_max	number	Maximum live Auto scale; 0 means unlimited
container_background	string	Dashboard background color or gradient
card_background	string	Default wrapped card background
card_shadow	boolean	Enable default card shadows
animate_cards	boolean	Animate cards on tab/layer entry
tabs	array	Tab definitions
tabs_position	string	top, bottom
sidebar_enabled	boolean	Enable the independent Sidebar rail
sidebar_items	array	Sidebar content/order, e.g. navigation, weather, status, clock, date, profile
sidebar_style	string	glass, neon, minimal
sidebar_density	string	compact, comfortable, spacious
sidebar_accent	string	blue, cyan, purple, amber, green
default_tab	string	Default active tab id
hide_tabs_when_single	boolean	Hide tabs if only one exists
layers_enabled	boolean	Enable layer-based visibility
layers	array	Layer definitions
background_mode	string	none, image, particles, youtube
background_image	object	Image background settings
background_particles	object	Particle background settings
background_youtube	object	YouTube background settings
dashboard_theme_enabled	boolean	Enable Home Assistant theme styling
dashboard_theme	string	Theme name
dashboard_theme_override_all_design	boolean	Force theme to win over custom design choices
responsive_viewports	object	Editor preview sizes for desktop/tablet/mobile
responsive_viewport_aspect_locks	object	Per-profile preview ratio locks for desktop/tablet/mobile
responsive_connectors	object	Animated connector overlay layouts

Local dashboard settings API

custom:ddc-html-card JavaScript can read and change dashboard-level settings through a local API exposed as ddc and helpers.ddc.

This API is intended for interactive dashboard controls such as buttons that enable/disable layers, screen saver, animations, tabs behavior, backgrounds, and other settings without opening the dashboard settings dialog.

Use the same option keys that appear in import/export JSON:

// Read a setting
const screenSaverOn = ddc.settings.get('screen_saver_enabled');

// Change a setting live for the current dashboard session
await ddc.settings.set('screen_saver_enabled', false);

// Persist the changed setting to storage/YAML when available
await ddc.settings.set('layers_enabled', true, { persist: true });

// Convenience helpers for boolean settings
await ddc.settings.enable('animate_cards');
await ddc.settings.disable('hide_tabs_when_single');
await ddc.settings.toggle('screen_saver_enabled');

// Change multiple settings at once
await ddc.settings.setMany({
  screen_saver_enabled: true,
  screen_saver_delay: 300000,
  animate_cards: false
}, { persist: true });

Available methods:

Method	Purpose
ddc.settings.list()	List known settings with current values and inferred types
ddc.settings.all() / ddc.settings.options()	Return the current exportable dashboard options
ddc.settings.get(key)	Read one setting
ddc.settings.set(key, value, options?)	Apply one setting
ddc.settings.setMany(patch, options?)	Apply several settings
ddc.settings.enable(key) / disable(key) / toggle(key)	Boolean convenience helpers
ddc.settings.save()	Persist current settings
ddc.settings.subscribe(handler)	Listen for local ddc:settings-changed updates
ddc.openSettings()	Open the dashboard settings dialog
ddc.saveLayout()	Save the full layout

By default, set, setMany, enable, disable, and toggle apply settings live only. Pass { "persist": true } when the change should be saved.

Example HTML card button:

{
  "type": "custom:ddc-html-card",
  "title": "Dashboard controls",
  "html": "<button id='toggle-ss'>Toggle screen saver</button><span id='state'></span>",
  "css": "button { padding: 10px 14px; border-radius: 12px; } #state { margin-left: 10px; }",
  "js": "const btn = root.querySelector('#toggle-ss'); const label = root.querySelector('#state'); const render = () => { label.textContent = ddc.settings.get('screen_saver_enabled') ? 'On' : 'Off'; }; btn.addEventListener('click', async () => { await ddc.settings.toggle('screen_saver_enabled', { persist: true }); render(); }); const off = ddc.settings.subscribe(render); render(); return () => off();"
}

Tabs

Tabs are configured in options.tabs:

{
  "tabs": [
    { "id": "overview", "label": "Overview", "icon": "mdi:view-dashboard" },
    { "id": "energy", "label": "Energy", "icon": "mdi:flash" },
    { "id": "automation", "label": "Automation", "icon": "mdi:robot" }
  ],
  "default_tab": "overview",
  "tabs_position": "top"
}

Every card entry should then include a matching tabId.

Layers

Layers are independent of tabs and are used for toggling sets of cards inside the same tab:

{
  "layers_enabled": true,
  "layers": [
    { "id": "standard", "label": "Standard", "icon": "mdi:layers" },
    { "id": "energy", "label": "Energy", "icon": "mdi:flash" },
    { "id": "explainers", "label": "Explainers", "icon": "mdi:help-circle-outline" }
  ]
}

Cards can then opt into one or more layers:

{
  "layerIds": ["energy"]
}

Backward compatibility rule

If a card has no layerIds, it should still remain visible. This is intentional and should be preserved when generating new dashboards that mix old and new content.

Connectors / animated lines

Lines are not authored as normal cards anymore. They are stored in options.responsive_connectors.

Recommended shape:

{
  "responsive_connectors": {
    "desktop": {
      "connectors": [],
      "landscape": { "connectors": [] }
    },
    "tablet": {
      "connectors": [],
      "landscape": { "connectors": [] },
      "portrait": { "connectors": [] }
    },
    "mobile": {
      "connectors": [],
      "landscape": { "connectors": [] },
      "portrait": { "connectors": [] }
    }
  }
}

Each connector entry looks like this:

{
  "id": "connector_power_1",
  "tabId": "overview",
  "cardIds": ["energy_card", "battery_card"],
  "sourceCardId": "energy_card",
  "targetCardId": "battery_card",
  "layerIds": ["energy"],
  "points": [
    { "x": 120, "y": 200 },
    { "x": 420, "y": 200 },
    { "x": 420, "y": 360 }
  ],
  "entity": "input_boolean.ddc_demo_flow",
  "active_states": "on,home,open,playing,charging,active,>0",
  "arrows": "end",
  "flow_direction": "auto",
  "line_style": "dashed",
  "thickness": 10,
  "animate_mode": "active",
  "animation_speed": 1.8,
  "active_color": "var(--primary-color, #ff9800)",
  "inactive_color": "rgba(148, 163, 184, 0.42)",
  "glow": true,
  "rounded": true
}

Connector authoring rules

• points must contain at least two points.
• Points should snap to the same grid as the dashboard.
• tabId should match the tab where the line is visible.
• cardIds should contain the unique layout card IDs the line belongs to.
• sourceCardId and targetCardId should match the first and last endpoint owners when the line connects two cards.
• layerIds should be included when the line belongs to specific layers; omit it only when the line should follow layer visibility from the owning card(s).
• Use entity + active_states when the line should animate or change color based on Home Assistant state.
• Connector anchors can be disabled for individual cards under Card Settings → Connector anchors. Saved connectors remain attached.

Supported built-in DDC custom cards

These are the custom cards an LLM can safely generate today.

1. custom:ddc-html-card

Use this when the dashboard needs freeform HTML, CSS, and JavaScript inside a card.

{
  "type": "custom:ddc-html-card",
  "title": "Custom widget",
  "html": "<div class='demo'>Hello</div>",
  "css": ".demo { color: white; }",
  "js": "return { update(){ /* read hass/states here */ } };",
  "rerun_on_hass_update": false
}

Runtime JavaScript receives access to:

• hass
• states
• config
• root
• host
• helpers
• ddc

The ddc object is the local dashboard API. For dashboard setting controls, prefer ddc.settings.get, ddc.settings.set, ddc.settings.toggle, ddc.settings.enable, and ddc.settings.disable.

2. custom:ddc-text-card

Use this for titles, headings, paragraphs, small labels, and rich text.

{
  "type": "custom:ddc-text-card",
  "text": "Energy overview",
  "rich_text": false,
  "rich_html": "",
  "variant": "title",
  "font_family": "",
  "font_size": 42,
  "color": "var(--primary-text-color, #f8fafc)",
  "align": "left",
  "bold": true,
  "italic": false,
  "letter_spacing": -0.03,
  "line_height": 1.05
}

When rich_text is enabled, use rich_html as the canonical content.

3. custom:ddc-icon-card

Use this for pure design icons or state-driven status icons.

{
  "type": "custom:ddc-icon-card",
  "icon": "mdi:flash",
  "entity": "input_boolean.ddc_demo_flow",
  "size": 96,
  "color": "var(--primary-color, #ff9800)",
  "active_color": "#22c55e",
  "state_based_color": true,
  "glow": true,
  "rotate": 0,
  "pulse_when_active": true,
  "opacity_based_on_state": false,
  "active_opacity": 1,
  "inactive_opacity": 0.28,
  "active_states": "on,home,open,playing,charging,active,>0",
  "click_action": "none"
}

This card is intended to be visually transparent around the icon itself.

4. custom:ddc-table-card

Use this for visual comparison tables, badges, and entity state summaries.

{
  "type": "custom:ddc-table-card",
  "title": "System matrix",
  "rows": 3,
  "columns": 3,
  "header_row": true,
  "border": true,
  "radius": 16,
  "spacing": 8,
  "cells": [
    { "type": "text", "text": "Area", "align": "left" },
    { "type": "text", "text": "State", "align": "center" },
    { "type": "text", "text": "Action", "align": "center" },
    { "type": "icon", "icon": "mdi:flash", "text": "Power", "align": "left" },
    {
      "type": "entity",
      "entity": "sensor.ddc_demo_status",
      "text": "Live",
      "align": "center",
      "active_states": "on,active,>0",
      "active_color": "var(--primary-color, #ff9800)",
      "inactive_color": "rgba(148, 163, 184, 0.18)"
    },
    {
      "type": "button",
      "entity": "input_boolean.ddc_demo_flow",
      "text": "Inspect",
      "button_action": "more-info",
      "align": "center"
    }
  ]
}

Supported cell types:

• text
• icon
• entity
• badge
• button

Standard Home Assistant cards

The dashboard can also contain normal Lovelace cards such as:

• entities
• button
• tile
• gauge
• markdown
• glance
• sensor
• statistics-graph
• history-graph
• picture-entity
• picture-glance

These should be placed in entry.card exactly as a normal Lovelace card config.

Packages

Packages are exported together with the dashboard and require the backend integration to sync into /config/packages.

Each package entry looks like this:

{
  "id": "package_1",
  "name": "Demo helpers",
  "filename": "demo_helpers.yaml",
  "enabled": true,
  "yaml": "input_boolean:\\n  ddc_demo_flow:\\n    name: DDC Demo Flow\\n"
}

Package authoring rules

• Only enabled packages with non-empty yaml are written by the backend.
• Package filenames are backend-normalized to a Home Assistant-safe slug.
• Home Assistant must have packages enabled in configuration.yaml, for example:

homeassistant:
  packages: !include_dir_named packages

Single-card export / import

The editor supports exporting a single card and importing it into an existing dashboard.

When importing a single card:

• it is inserted into the current tab
• it is placed inside the active viewport
• it receives a new internal id
• it does not replace the whole dashboard

Recommended authoring strategy for LLMs

When generating a full demo dashboard, use this checklist:

1. Define at least 2–3 tabs.
2. If using layers, always include:
   • layers_enabled: true
   • a standard layer
   • at least one extra layer such as energy or explainers
3. Place a mix of:
   • standard HA cards
   • custom:ddc-text-card
   • custom:ddc-icon-card
   • custom:ddc-table-card
   • custom:ddc-html-card
4. Add at least one connector in responsive_connectors.
5. For interactive dashboard controls, use custom:ddc-html-card with ddc.settings.
6. Keep card tabId and connector tabId aligned, and bind connectors to the owning card IDs with cardIds.
7. If the dashboard should work on fresh installs, include demo packages.
8. Prefer mobile.portrait and tablet.landscape variants instead of relying on desktop-only layout.
9. Keep z values consistent and start at 6.

Recommended demo dashboard ingredients

For a strong showcase dashboard, include:

• one hero title using custom:ddc-text-card
• one live KPI icon using custom:ddc-icon-card
• one table summary using custom:ddc-table-card
• one interactive HTML widget using custom:ddc-html-card
• one Entities or Button card for controls
• one or more animated connectors
• at least one background mode
• one layers example and one tabs example
• one package that creates the helper entities used by the demo

Important limitation

Do not model connectors as normal cards in new dashboards. Use responsive_connectors instead. Legacy custom:ddc-line-card data may exist in older exports, but new dashboards should rely on the connector overlay system.

---

🧑‍🏫 Editor UX & Shortcuts

• Enter Edit: Long-press on blank canvas (~1s) or double-click an empty area.
• Exit Edit: Press Esc or use the Exit button.
• Apply: Ctrl/Cmd + S in edit mode or click Apply.
• Multi-select: Drag a selection marquee; use Shift/Ctrl/Cmd to extend selection.
• Small-card resize: Compact cards keep the bottom-right resize control visible while editing.
• Edit a card: Saving card code updates that card in place; the dashboard and active tab stay mounted.
• Toolbar:
  • Add
  • Reload
  • Diagnostics
  • Export / Import
  • Apply layout (only needed when auto-save is off)
  • Exit edit

---

🎨 Styling & card-mod

The card supports card-mod on the outer drag-and-drop card.

Example to tweak grid color:

type: custom:drag-and-drop-card
storage_key: fancy_layout
card_mod:
  style: |
    :host {
      --ddc-grid-color: rgba(255, 255, 255, 0.15);
    }

Example to make the container fully transparent while keeping inner cards untouched:

card_mod:
  style: |
    :host {
      --ha-card-background: transparent;
      border-radius: 18px;
      overflow: hidden;
    }

    .ddc-root,
    .card-container,
    .layout,
    .pane,
    .rightGrid,
    .section,
    .toolbar,
    .mdc-card,
    .card,
    .card *[class~="card"],
    .mini,
    .bd {
      background: transparent !important;
      box-shadow: none !important;
    }

Note: Only the main card supports card_mod directly. Inner cards should be styled via their own card_mod configs.

---

HADS – Home Assistant Dashboard Store

This card can browse and import community dashboard designs from HADS. Start with the HADS walkthrough if you want a guided setup.

For the deeper in-card marketplace integration, see the proposed HADS API contract:

docs/hads-ddc-integration-api.md

---

🛠 Troubleshooting

• Module doesn’t load: Confirm resource URL & type. Hard-reload browser.
• Cards snap oddly: Adjust grid or disable disable_overlap.
• Overlaps happen: Use disable_overlap: true (experimental).
• Layout didn’t persist: Ensure Apply or auto_save are used; check storage_key and backend integration.
• Imported design looks wrong: Check version & that the referenced cards exist in your system.

---

🎬 More demos

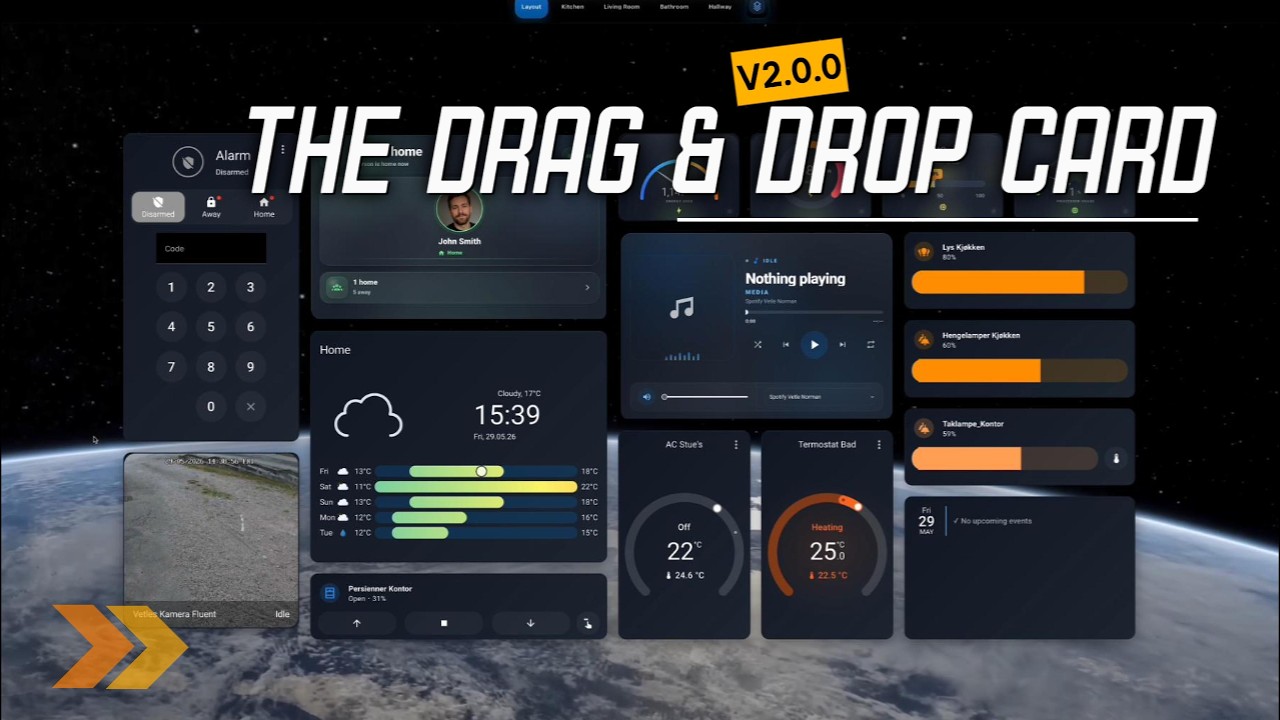

Click the preview to watch the latest release walkthrough.

For another hands-on preview, open the extended demo GIF (24 MB).

---

🤝 Contributing

Issues, feature proposals, documentation improvements, and pull requests are welcome.

1. Check the open issues before starting larger changes.
2. Fork the repository and create a focused branch.
3. Install dependencies, run the tests, and build the production bundle:

npm install
npm test
npm run build

4. Test the result in Home Assistant, including card-mod compatibility when your change affects styling.
5. Open a pull request that explains what changed and how it was verified.

Please keep the project self-contained: runtime dependencies must be bundled, not loaded from an external CDN. By contributing, you agree that your contribution is provided under the project's MIT license.

---

☕ Support the project

If Drag & Drop Card saves you time, you can support the project by starring the repository, sharing your dashboards, reporting useful feedback, or buying me a coffee.

---

📄 License

Released under the MIT License. Copyright (c) 2025 SMARTI AS.

Third-party licenses and bundled dependency notices are documented in THIRD_PARTY_NOTICES.md.

---

🧾 Release Notes

See GitHub Releases for version history, highlights, and upgrade notes. The installed bundle also logs its version in the browser console:

drag-and-drop-card vX.Y.Z

---

⚠️ Known limitations

Known issues are tracked in the GitHub issue tracker. One current limitation is worth highlighting:

• card-mod support inside nested cards is still limited and may not behave as expected. The outer Drag & Drop Card supports card_mod directly.
