Nexus AI

Overview

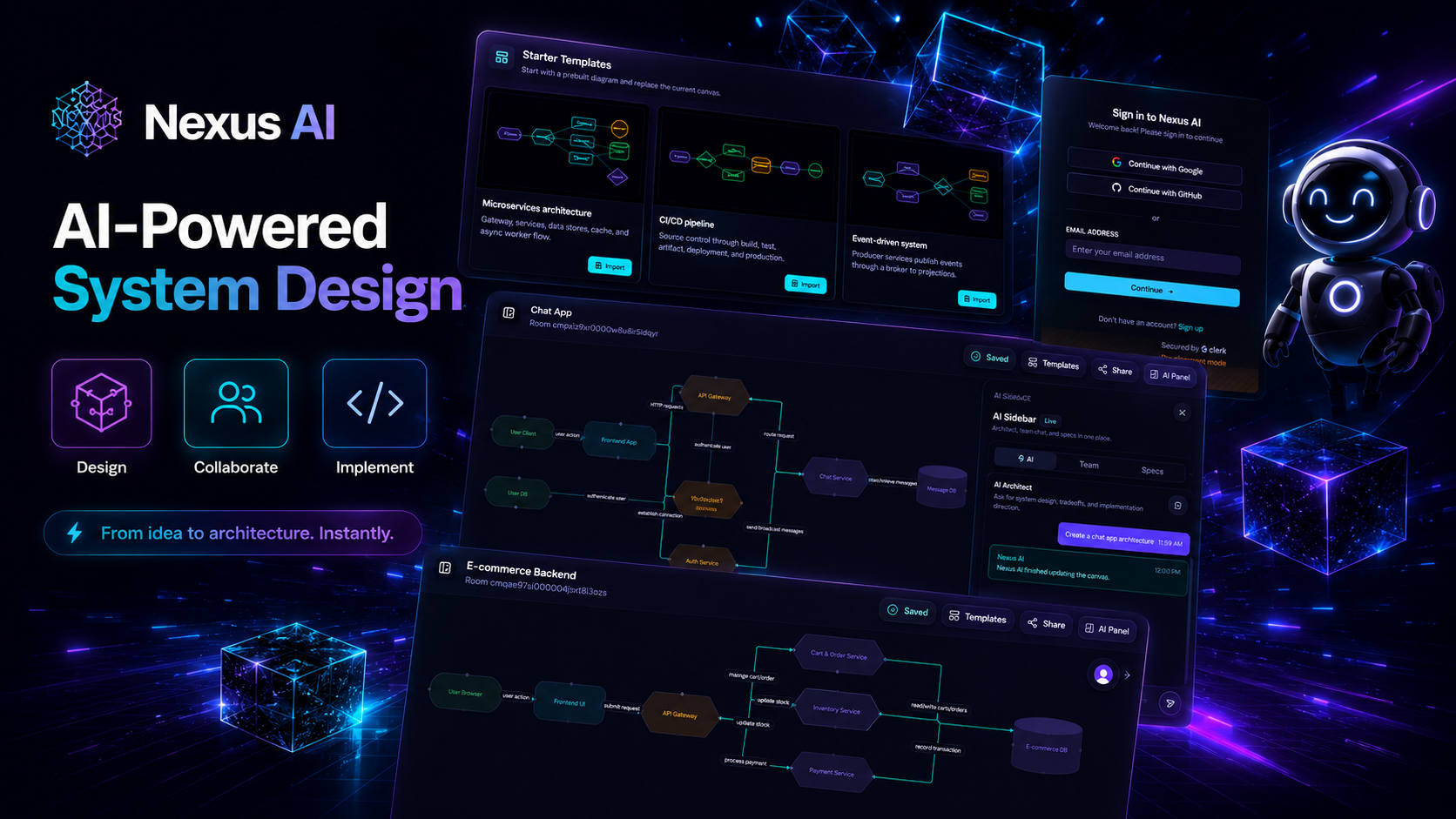

Nexus AI is a real-time collaborative, agentic planning workspace designed to help software teams transform ideas into structured system diagrams and technical specifications.

Users can describe an architectural system in plain English, empowering a Google Gemini-powered AI agent to autonomously map that description onto a shared React Flow canvas. Beyond visual design, a secondary background AI agent converts the finalized canvas graph into a production-grade, multi-page Markdown technical specification. This acts as a comprehensive execution guide—detailing the system blueprint, tech stack, roadmap, and task breakdowns granular enough for human engineers and AI coding assistants to execute end-to-end.

Features

AI & Automation

• Agentic Architecture Generation: Process natural-language prompts with Google Gemini to autonomously generate validated, structured node-and-edge graphs on the canvas.
• AI-Powered Technical Specifications: Convert the visual graph into a persistent, downloadable Markdown document detailing roadmaps, tech stacks, and step-by-step task breakdowns.
• Durable Background Execution: All complex AI and file generation tasks are reliably executed asynchronously using Trigger.dev, keeping the UI highly responsive.

Collaboration

• Real-Time Multiplayer Canvas: Work inside shared project rooms utilizing Liveblocks, complete with live cursors, presence indicators, and simultaneous node/edge editing.
• Integrated Communication: Live chat with team members and an AI assistant directly within the workspace.
• Starter Templates: Quick-start capability with prebuilt architectural patterns (monolith, microservices, event-driven, serverless).

Canvas Editor

• Interactive Design: Drag, resize, connect, and organize nodes with a robust XYFlow/React Flow-based editor.
• Rich Customization: Edit node labels inline directly on the canvas, and customize nodes with a floating toolbar and color swatches.
• Reliable State Management: Autosave canvas changes seamlessly with a debounced save flow.

Security & Project Management

• Authentication & Access Control: Secure sign-in, sign-up, and protected routing powered by Clerk.
• Workspace Management: Manage multiple projects and restrict collaborative room access to authorized team members only.

Tech Stack

Frontend

• Framework: Next.js 16 (App Router) with TypeScript

• Styling: Tailwind CSS, shadcn/ui, Radix UI

• Canvas & Interactivity: XYFlow / React Flow, Framer Motion, GSAP, Three.js

• Auth: Clerk (@clerk/nextjs)


Backend

• Database: Prisma ORM, PostgreSQL (via Neon)

• AI & Processing: Google Gemini (gemini-2.0-flash), Trigger.dev

• Real-Time Synchronization: Liveblocks Node/React

• File Storage: Vercel Blob


Project Structure

nexus-ai/
├── app/
│   ├── (auth)/             # Clerk sign-in / sign-up pages
│   ├── api/                # Core API routes (AI token logic, project CRUD, webhooks)
│   ├── editor/[roomId]/    # Protected collaborative workspace
│   ├── layout.tsx          # Root layout & global providers
│   └── globals.css         # Global Tailwind & theme CSS
├── components/
│   ├── editor/             # Canvas, controls, edges, nodes, and collaboration UI
│   ├── dashboard/          # Project list and creation dialogs
│   └── ui/                 # Reusable shadcn/ui & Radix primitives
├── hooks/                  # Client-side hooks (autosave, keyboard shortcuts)
├── lib/                    # Core integrations (Prisma, Clerk, Gemini, Trigger.dev)
├── prisma/                 # PostgreSQL database schema and migrations
├── public/                 # Static assets
├── trigger/                # Trigger.dev background job definitions for AI tasks
└── types/                  # Shared TypeScript types & Zod schemas

Key Directories

• app/api/: Contains thin route handlers that parse requests, assert Clerk authentication and project access, and dispatch durable tasks to Trigger.dev.
• components/editor/: Houses all React Flow and Liveblocks integration logic. It strictly owns the bridge between Liveblocks storage and React Flow state.
• hooks/: Manages client-side utility functions, including the autosave debouncing and canvas keyboard shortcuts.
• lib/: Centralizes client singletons and core service logic (e.g., Prisma db client, AI SDK setups, and authorization checks).
• trigger/: Isolates long-running operations (like AI spec generation) from the main web server threads via Trigger.dev background tasks.

Core API Routes

Method	Endpoint	Description
GET	/api/projects	Fetches all projects for the authenticated user.
POST	/api/projects	Creates a new project workspace.
GET / PATCH / DELETE	/api/projects/[projectId]	Fetches, updates, or deletes a specific project.
GET / PUT	/api/projects/[projectId]/canvas	Loads and persists the latest canvas JSON blob.
POST	/api/ai/design or /api/projects/[projectId]/generate	Dispatches Trigger.dev task for AI architecture generation.
POST	/api/ai/spec or /api/projects/[projectId]/spec	Dispatches Trigger.dev task for Markdown specification generation.
GET	/api/projects/[projectId]/specs/[specId]/download	Streams the generated spec artifact for local download.
GET / POST	/api/liveblocks-auth	Issues a Liveblocks room token after access verification.
GET / POST	/api/trigger	Trigger.dev webhook handler for background task events.

Getting Started

Prerequisites

• Node.js: v20+ recommended (v18+ minimum)
• Package Manager: npm, yarn, or pnpm
• Database: PostgreSQL (e.g., Neon)
• External Accounts: Clerk, Liveblocks, Trigger.dev, Vercel Blob, and Google AI Studio (Gemini)

1. Clone the Repository

git clone <repository_url>
cd nexus-ai
npm install

2. Configure Environment Variables

Create a .env.local file in the root directory and populate it with your keys:

# Authentication (Clerk)
NEXT_PUBLIC_CLERK_PUBLISHABLE_KEY=your_clerk_pub_key
CLERK_SECRET_KEY=your_clerk_secret
NEXT_PUBLIC_CLERK_SIGN_IN_URL=/sign-in
NEXT_PUBLIC_CLERK_SIGN_UP_URL=/sign-up
NEXT_PUBLIC_CLERK_AFTER_SIGN_IN_URL=/editor
NEXT_PUBLIC_CLERK_AFTER_SIGN_OUT_URL=/sign-in

# Database
DATABASE_URL=your_postgres_connection_string

# Multiplayer (Liveblocks)
LIVEBLOCKS_PUBLIC_KEY=your_liveblocks_pub
LIVEBLOCKS_SECRET_KEY=your_liveblocks_secret

# Background Jobs (Trigger.dev)
TRIGGER_PROJECT_REF=proj_your_trigger_project_id
TRIGGER_SECRET_KEY=your_trigger_secret_key

# AI (Google Gemini)
GOOGLE_API_KEY=your_gemini_api_key

# Storage (Vercel Blob)
BLOB_READ_WRITE_TOKEN=your_vercel_blob_token

3. Set Up the Database

Run Prisma to sync your schema with your database:

npx prisma generate
npx prisma db push

Note: For production environments, use npx prisma migrate deploy instead of db push.

4. Run the Development Servers

You will need to run the Next.js app and the Trigger.dev worker concurrently. Open two separate terminal windows:

Terminal 1 (Next.js App):

npm run dev

Terminal 2 (Trigger.dev Worker):

npm run trigger:dev

Open http://localhost:3000 in your browser to start building.

User Workflow

A typical user journey through Nexus AI involves the following data flow:

1. Initiation: A user signs into the app via Clerk, opens or creates a project workspace, and submits a natural-language description of their desired architecture.
2. Architecture Generation: The request hits the AI API route, which instantly responds to the client while dispatching a durable Trigger.dev background task to call the Gemini API.
3. Real-Time Sync: The Trigger.dev worker parses the Gemini response into a structured graph and writes it directly to Liveblocks Storage. All connected clients see the nodes and edges instantly appear on the canvas.
4. Collaborative Editing: Team members manually edit the architecture together in real-time, utilizing live chat, inline label editing, and autosaving features.
5. Spec Conversion: Once the design is finalized, the user triggers the documentation generation. Another background task prompts Gemini to expand the visual graph into a comprehensive, multi-page Markdown specification.
6. Persistence & Handoff: The final Markdown artifact is saved to Vercel Blob, and a metadata record is stored in PostgreSQL. The user can review, download, or hand off the spec directly to an AI coding assistant.

---

Built for modern product teams that want to design systems faster, collaborate better, and turn ideas into production-ready technical specs.

---

Contributing

Contributions are welcome! Built for modern product teams that want to design systems faster and collaborate better. If you have an idea for an improvement:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request
