Welcome to the FreeDSP-FreeDSP_SMD_AB wiki!

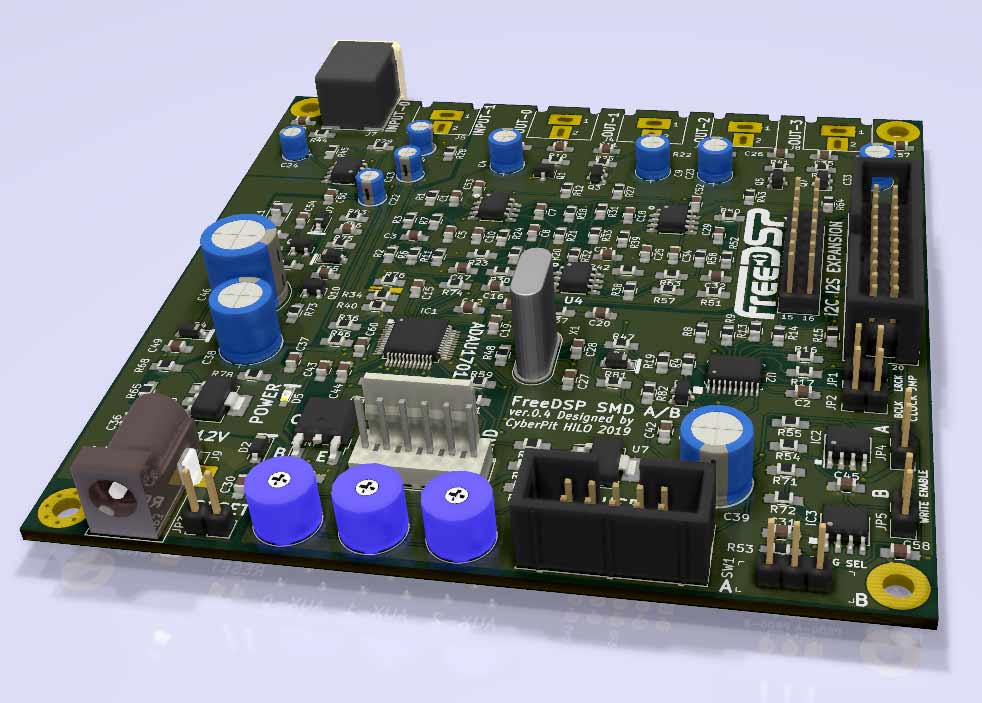

FreeDSP Classic SMD A/B is a simple 2-in 4-out ADAU1701 Audio DSP board. This board was intended to be used with Analog Devices SigmaStudio software and USBi programmer.
Detailed information will be available from my web page. https://cyberpithilo.web.fc2.com/audio/freedsp/index.html#SMD_AB
This hardware design uses MP10(LRCK) for a negative power supply switching clock. So you need to set MP10 as an output of I2S LRCK anyway. This negative power supply was used for un-muting audio output signals.
(192kHz Sampling Projects)
(96kHz Sampling Projects)
- 2wayStereoChanDivDelayVolume_96k.dspproj
- 2way3D-Crossover_Volume_96k.dspproj
- 2wayLoCutStereoChanDivDelayVolume_96k.dspproj
(48kHz Sampling Projects)
- Hands on SigmaStudio Development Tool
- SigmaStudio Development Tips
- Example2: 2way Variable Crossover Frequency Stereo Crossover Channel Divider
- Example3: 3way Stereo Crossover Channel Divider
- Example4: Sweep Sine Signal / Noise Generator
- Example5: Dynamic Loudness / Multi-band Compressor (Under Construction)
- Example6: Quadraphonic-Audio Matrix Decoder
- Example7：Harmonic Bass Enhancer
- Example8: AutoEQ 2way Crossover Dividing Network
- 2way3D-Crossover_Volume_48k.dspproj
- 2wayLoCutStereoChanDivDelayVolume_48k.dspproj
