ui: align Codex++ injected UI with Codex appearance#907

Open
wangbax wants to merge 3 commits into
BigPizzaV3:mainfrom
wangbax:codex/ui-polish-main
Open

ui: align Codex++ injected UI with Codex appearance#907
wangbax wants to merge 3 commits into
BigPizzaV3:mainfrom
wangbax:codex/ui-polish-main

Conversation

@wangbax

@wangbax wangbax commented Jun 12, 2026

Copy link
Copy Markdown

需求背景

这轮改动来自 Codex++ 注入 UI 在新版 Codex 桌面端中的一组视觉和交互回归反馈。Codex++ 的顶部入口、设置弹框、侧边栏会话操作、Upstream worktree 弹框和后端状态展示都注入在 Codex 原生页面上,因此它们需要跟随 Codex 当前的 Appearance、语言、菜单层级和原生控件状态,而不是维护一套独立的暗色、透明度和自定义控件风格。

本次排查过程中主要聚焦这些问题:

  • 顶部原生 menu 区域有预览/切换状态时,Codex++ 1.2.x 按钮空间被挤压,填充态和边框态在不同窗口状态下不统一。
  • 设置页、启动 loading 等非主会话界面不应该出现 Codex++ 顶部入口。
  • 打开或关闭 Codex++ 弹框时,后端连接状态会先显示红色/检测中,再变为绿色,造成已连接但闪断的观感。
  • 弹框一直偏黑、带透明感,并且单选框、开关、选择框、按钮等没有复用 Codex Settings / Appearance 的 token。
  • 暗色模式下页面像被额外蒙了一层遮罩,导致按钮和内容显得偏灰。
  • 默认英文环境下仍有部分中文文案;用户切换中文/英文时,Codex++ 应跟随 Codex 的语言逻辑,而不是额外维护独立语言筛选。
  • 侧边栏会话 item 的删除和 More actions 图标、hover、tooltip、弹出菜单风格与 Codex 原生 Archive Chat / 标题更多菜单不一致。
  • Upstream worktree 的二级弹框层级和输入框宽度需要和 Codex 原生弹框对齐。
  • 弹框缺少 Escape 关闭能力。
  • CDP target 在 avatar overlay 窗口存在时可能选错页面,进而影响注入和状态刷新稳定性。

方案说明

1. 统一注入 UI 的 Codex token 体系

Codex++ 弹框、菜单、按钮、输入框、选择框、radio / switch 状态统一改为 CSS token 驱动,优先读取 Codex 当前页面暴露的颜色变量,例如菜单背景、输入框背景、边框、foreground、accent、focus border 和 button token。

本次特别收敛了这些控件:

  • Page enhancements 等开关改成 Codex 原生 switch 结构:32x20 track、16x16 knob,unchecked 使用 foreground/10,checked 使用 Codex accent / charts blue,knob 使用 gray-0。
  • Open manager、Open DevTools、社区入口等普通 action button 使用 Codex 原生按钮的 foreground/5 默认背景和 foreground/10 hover 背景,但字号和 padding 保持 Codex++ 弹框内的紧凑尺寸,避免按钮变大。
  • 弹框按钮、输入框、选择框、tab、状态 chip、focus ring 都走 Codex token fallback,不再硬编码一套暗色主题。

2. 顶部 Codex++ 菜单入口更稳定

顶部 Codex++ 版本入口保留在 Codex 原生顶部 menu 区域,并收敛为和 Codex 原生菜单协调的 outline chip:

  • 不使用填充色,避免和原生菜单抢视觉重心。
  • 高度恢复到较舒适尺寸,避免顶部预览态挤压后显得过矮。
  • border、hover、foreground 都使用 Codex button / menu token。
  • 等待 Codex header actions 就绪后再挂载,避免启动 loading 阶段提前显示。
  • 设置页检测到 Back to app / General / Appearance 等原生导航后会移除入口,避免设置页出现 Codex++ 菜单。
  • 显示版本来自构建注入的 CODEX_PLUS_VERSION,会随构建版本变化。

3. 后端连接状态改为缓存展示,避免开关弹框闪红

后端仍然按 heartbeat 检测,但弹框打开/关闭时不再把展示态立即重置为 checking / disconnected。

新增展示层逻辑:

  • 最近 12 秒内有成功 heartbeat 时,弹框继续展示 connected。
  • 失败次数不足阈值时不急着切到 Not connected。
  • Backend connection 的显示文案根据 status 生成,不再直接依赖后端 message,因此不会因为后端返回中文未连接而污染英文界面。
  • Backend connected 收敛为更短的 connected。

最终效果是:已连接状态下反复打开/关闭 Codex++ 弹框,不会先出现红色未连接再跳绿色。

4. 语言跟随 Codex,默认英文并保留中文切换

补齐注入 UI 的英文文案,默认英文界面显示英文;切到中文后显示中文,再切回英文也会恢复英文。

实现上不新增 Codex++ 独立语言下拉,而是读取 Codex 当前可见原生 UI 的语言信号:

  • 优先使用运行时语言 hint。
  • 再根据可见原生按钮、导航、placeholder、aria-label 等内容评分识别英文/中文。
  • 忽略 Codex++ 自己注入的节点,避免菜单内容反过来污染语言判断。
  • 最后才回退到已存储语言,默认英文。

补齐/修正的文案包括:

  • Backend connection 状态:connected / Not connected
  • More actions、Delete、Export、Move、Remove from project
  • project move 弹框标题、loading、empty、失败提示
  • Not needed 等短标签避免窄区域不必要换行

5. 弹框和控件贴近 Codex Settings

设置弹框最终表现为:

  • 背景不透明,颜色跟随 Codex 当前 Appearance。
  • overlay 背景改为透明,不再给整个 Codex 页面叠额外蒙版,避免暗色模式下内容和按钮显得 disabled / 偏灰。
  • radio / switch 开启态使用 Codex accent,指示色使用白色 / gray-0,贴近 Codex Settings 的 Permissions - Default permissions 控件。
  • 选择框、输入框、分段 tab、底部按钮使用 Codex token,避免白底黑字或独立暗色主题混用。
  • 弹框支持 Escape 关闭;有 Upstream worktree、删除确认、移动项目等二级弹框在顶层时,不会误关底层主弹框。

6. 侧边栏会话操作改成 Codex 原生风格

会话 item 右侧操作区改为更接近 Codex 原生 Archive Chat / More menu:

  • 删除和更多按钮使用 20x20 icon button,透明底,hover / active 状态跟随 Codex。
  • 使用图标和 tooltip,不再使用突兀的文字按钮或三点文本。
  • More actions 弹框缩窄为紧凑菜单,实体背景不透明,样式接近标题更多菜单。
  • 菜单项支持 Export、Move、Delete 的英文/中文文案,并使用对应 icon。
  • 从会话标题提取逻辑里剥离英文 action 文案,避免标题被 Export / Delete / Move 等按钮文本污染。

7. Upstream worktree 和 CDP 稳定性补强

这次还补了几处和 UI 稳定性相关的底层行为:

  • Upstream worktree 的二级弹框现在显示在最上层,输入框不会超过背景容器。
  • Upstream worktree 弹框支持 Escape 关闭,并在重复打开时清理旧 keydown listener。
  • CDP 页面选择会优先主 Codex 页面,avatar overlay 页面会排在后面,降低注入错页和状态异常概率。
  • helper 端口 bind 失败时,如果已有 helper 的 /backend/status 正常返回,会复用现有 helper,减少重复启动/端口占用造成的异常。
  • macOS 通过 open 激活已安装 Codex app 时,会等待 Codex app 退出,避免 launcher 生命周期提前结束。

8. PR 范围收敛

这次 rebase 到最新 origin/main 后,移除了无关的 bridge binding diff:

  • BRIDGE_BINDING_NAME 保持上游当前的 codexSessionDeleteV2,不在本 PR 里升级到 V3。
  • codexDeleteStyleVersion 保持为 14,避免为了这轮 UI 修复引入过大的样式版本跳跃。
  • PR 文件列表收敛为注入 UI、CDP target、launcher 行为和对应测试,不包含 README 图片、二维码或发布资源改动。

最终 UI 展现

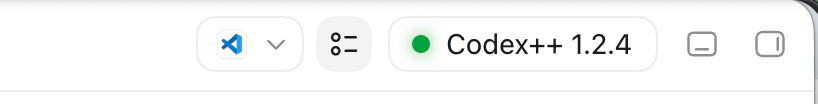

顶部菜单入口

顶部 Codex++ 1.2.x 入口现在是和 Codex 原生菜单协调的 outline 按钮,尺寸稳定,不会因为顶部 menu 预览态显得被压扁。

Codex++ top menu outline button

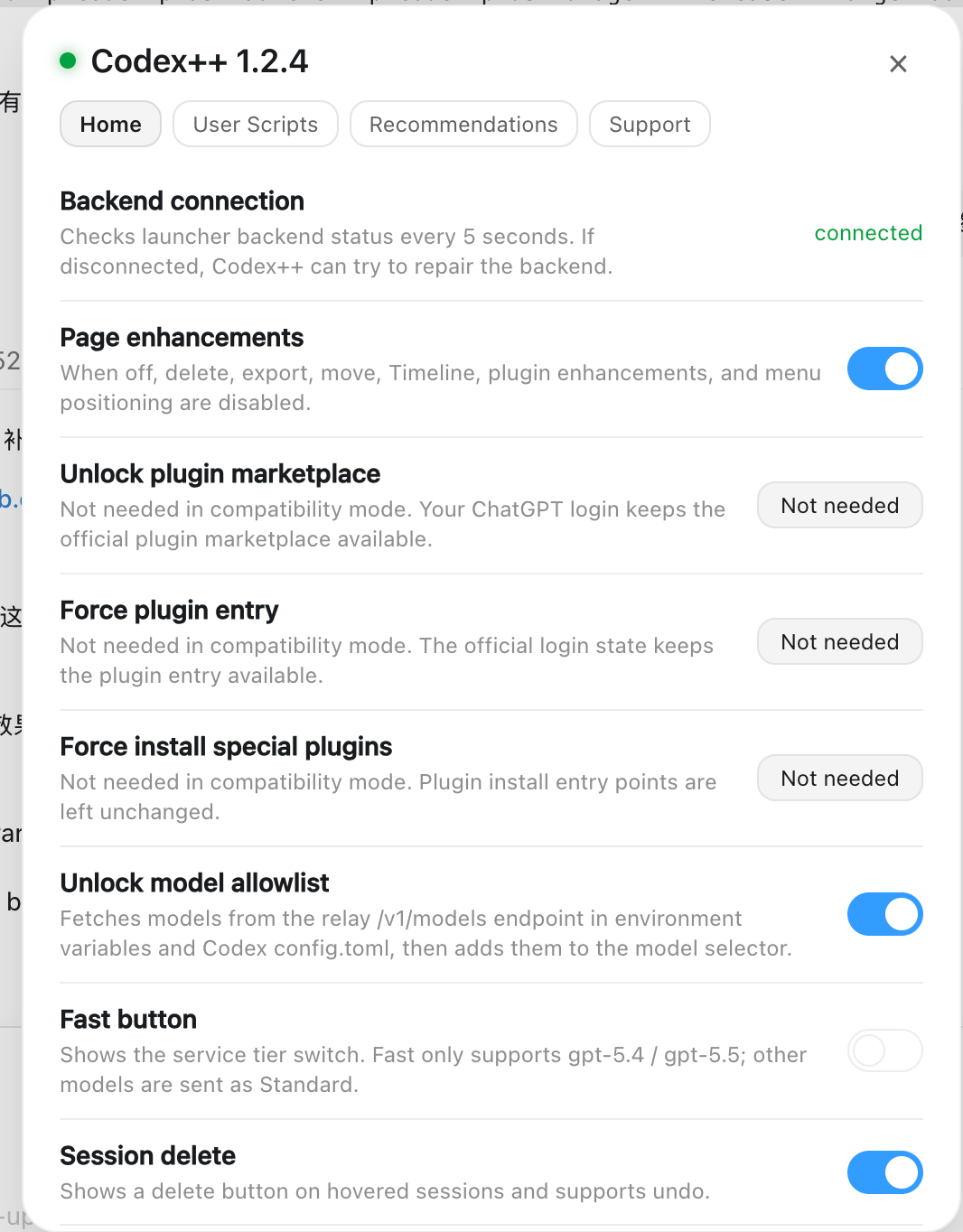

Codex++ 设置弹框

点击顶部入口打开的 Codex++ 弹框会跟随 Codex 日/夜间和 accent 配色,不再固定黑色,也没有透明面板感。Backend connection 已连接时显示 connected,Page enhancements 等开关使用 Codex accent + 白色指示;插件相关按钮使用 Codex 原生按钮色值,并避免 Not needed 换行。

Codex++ settings modal aligned with Codex appearance

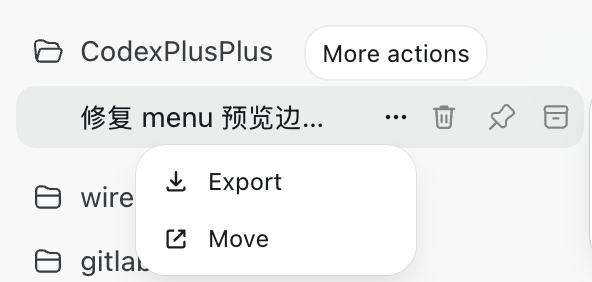

侧边栏 More actions

侧边栏会话 item 的删除和 More actions 与 Codex 原生 Archive Chat / 更多菜单一致,hover、icon、tooltip 和弹出菜单都更贴近原生体验。More actions 菜单更短、更紧凑,背景色是实色菜单背景,不再显得过宽或透明。

Codex++ sidebar More actions menu

补充效果:

  • 英文 Codex 下默认显示英文;切到中文后显示中文,再切回英文也会恢复英文。
  • 设置页和启动 loading 阶段不会展示 Codex++ 顶部入口。
  • 弹框支持 Escape 关闭。
  • 暗色模式下不会给整个 Codex 页面额外叠一层灰蒙版。
  • Upstream worktree 的二级弹框会浮在最上层,输入框不会超过背景容器。

影响范围

  • 主要影响 assets/inject/renderer-inject.js 的注入 UI、文案、状态展示和菜单行为。
  • codex-plus-core 增加 CDP target 选择、helper 复用和 launcher 等待逻辑。
  • 更新 cdp_bridge 测试覆盖注入脚本的 token、语言、菜单按钮、后端状态缓存、Esc 关闭、project move 本地化、Upstream worktree 弹框和 avatar overlay target 选择。
  • 不包含 README 图片、二维码或发布版本文件改动;本分支已基于最新 origin/main。
  • 截图托管在 fork 的 pr-assets/907 辅助分支,仅用于 PR 描述展示,不进入本 PR 的代码 diff。

验证

  • node --check assets/inject/renderer-inject.js
  • cargo test -p codex-plus-core --test cdp_bridge
  • ./node_modules/.bin/vite build
  • cargo build -p codex-plus-launcher -p codex-plus-manager --release --target aarch64-apple-darwin

备注

release build 已通过,目前仅保留 main 上已有的 warning:Windows uninstall 常量未使用、Windows proxy parser 未使用,以及一个 unused_mut warning。

@wangbax wangbax changed the title fix: polish Codex++ injected UI interactions ui: align Codex++ injected UI with Codex appearance Jun 12, 2026
@wangbax wangbax force-pushed the codex/ui-polish-main branch 2 times, most recently from 0978cff to 87f5668 Compare June 12, 2026 13:42
@BigPizzaV3

Copy link
Copy Markdown
Owner
  1. 没有中文
  2. 深色下蒙版有问题

@wangbax wangbax force-pushed the codex/ui-polish-main branch 2 times, most recently from f1e2c48 to 356d0d5 Compare June 16, 2026 03:27
@wangbax

wangbax commented Jun 16, 2026

Copy link
Copy Markdown
Author

@BigPizzaV3 这轮已经基于最新 origin/main 重新 rebase,并补充/收敛了后续反馈里的修复点,可以继续 review 了。

主要新增和调整:

  • 设置页和启动 loading 阶段不再展示顶部 Codex++ 入口,入口会等 Codex header actions 就绪后再挂载。
  • Codex++ 弹框支持 Esc 关闭;有 Upstream worktree / 删除确认 / 移动项目等二级弹框时不会误关底层弹框。
  • 后端连接状态增加展示缓存,已连接时打开/关闭弹框不会先闪红再变绿;Backend connection 状态文案也不再直接透传后端中文 message。
  • 语言逻辑改为跟随 Codex 可见原生 UI,默认英文,切中文后弹框会同步中文,再切回英文也会恢复英文。
  • 暗色模式下去掉额外 overlay 蒙版,避免整个 Codex 页面和按钮看起来像 disabled。
  • Page enhancements 等 switch 对齐 Codex 原生 switch 结构和色值;Open manager / Open DevTools 等按钮使用 Codex 原生 foreground/5、foreground/10 色值,但保持弹框内紧凑字号。
  • 侧边栏删除和 More actions 的 icon、tooltip、hover、菜单背景和宽度更贴近 Codex 原生 Archive Chat / 标题更多菜单,并补齐英文文案。
  • Upstream worktree 二级弹框层级修复,输入框不再超过背景容器,也支持 Esc 清理。
  • CDP target 选择优先主 Codex 页面,避免 avatar overlay 被误选导致注入错页。
  • PR 范围也做了收敛:BRIDGE_BINDING_NAME 保持 codexSessionDeleteV2codexDeleteStyleVersion 保持 14,无关的 bridge.rs diff 已移除。

验证已过:

  • node --check assets/inject/renderer-inject.js
  • cargo test -p codex-plus-core --test cdp_bridge
  • git diff --check

PR 描述也已经同步更新了需求背景、方案说明和最终 UI 展现。

wangbax and others added 3 commits June 17, 2026 11:12
Refine the injected Codex++ menu, modal, sidebar action controls, and localized labels so they track Codex appearance and language behavior more closely.

Cache backend status during menu open/close to avoid transient disconnected flashes, improve CDP target selection around avatar overlays, and keep the launcher waiting for packaged Codex app exits.

Tests: node --check assets/inject/renderer-inject.js; cargo test -p codex-plus-core --test cdp_bridge; ./node_modules/.bin/vite build; cargo build -p codex-plus-launcher -p codex-plus-manager --release --target aarch64-apple-darwin.

Generated-By: Codex (GPT-5)
Co-authored-by: Codex <codex@openai.com>
Align the Codex++ modal, menu trigger, sidebar actions, language detection, and native-control styling with Codex appearance behavior.

Keep the bridge binding scoped to the existing V2 contract while improving CDP page-target selection and covering the injected UI behavior with tests.

Generated-By: Codex (GPT-5)

Co-authored-by: Codex <codex@openai.com>
Keep an explicit Codex++ manager theme preference when present, but fall back to the system color scheme on first launch instead of writing dark mode unconditionally.

Generated-By: Codex (GPT-5)

Co-authored-by: Codex <codex@openai.com>
@wangbax wangbax force-pushed the codex/ui-polish-main branch from 356d0d5 to 2a27578 Compare June 17, 2026 03:19
