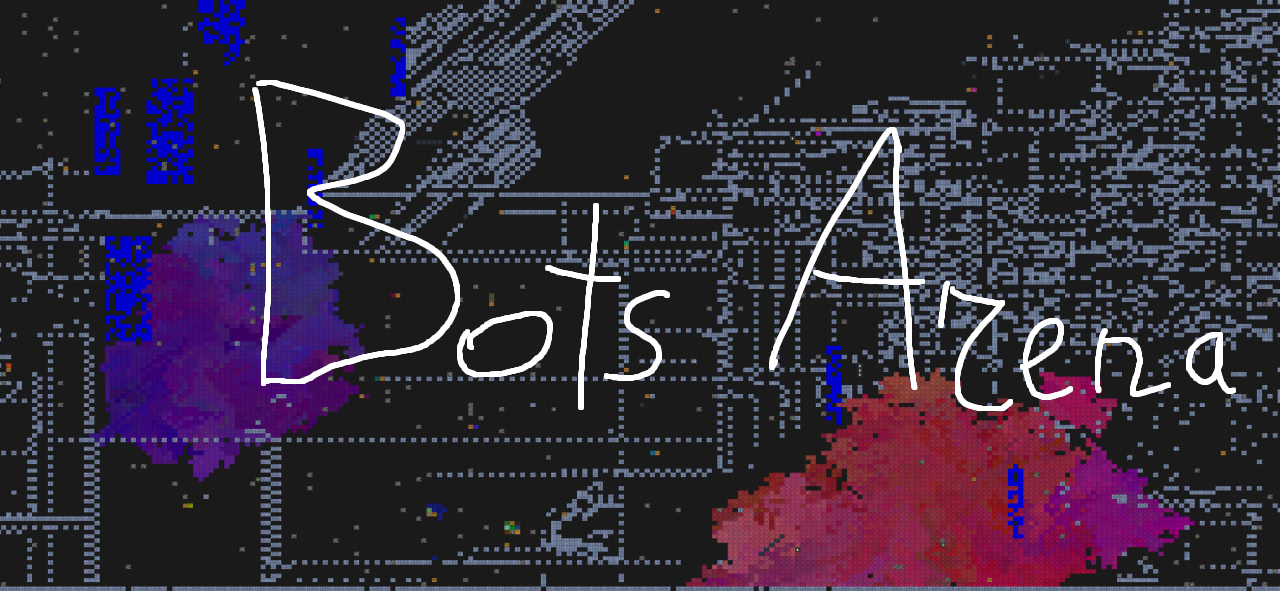

Bots Arena is an experimental OpenGL-based simulation and AI playground written in Go.
It renders a procedurally generated 2D grid map and simulates autonomous bots with genome-based behavior. Bots can move, evolve, gather resources, form colonies, and build simple structures — all visualized in real-time using GLFW and OpenGL bindings.
- 🧬 Genome-driven bots with custom instruction set
- ⚙️ Procedural grid world generation with dynamic terrain (walls, farms, poison, resources, etc.)
- 🏗 Simple building mechanics: bots can construct farms, walls, and spawners
- 🧃 Energy and inventory system: bots need to survive and manage resources
- 🧠 Basic colony formation logic with task assignment and color-coded control
- ♻️ Evolution: new generations emerge when populations drop below a threshold
- 📈 Dynamic OpenGL rendering with zoom, pan, overlays, and bot path visualization
- Go 1.22 or later
- A working C compiler (
gcc,clang, ormingwdepending on your platform) - OpenGL development libraries and GLFW installed (OS-dependent)
- Internet access to download Go dependencies
Clone and build the project:
git clone https://github.com/yourname/bots-arena.git
cd bots-arena
go mod download
go buildThis will generate a binary called bots-arena in the current directory.
To launch the simulation:
./bots-arenaOr directly via:
go run .| Action | Input |
|---|---|
| Pan view | Drag with left mouse button |
| Zoom in/out | Mouse wheel scroll |
| Pause simulation | Press P (config toggle) |
| Observe task path overlay | Hover over task-linked bots |
core/
bot.go → Bot logic, genome, HP, energy
colony.go → Colony structure, task queues
board.go → Map and grid cell types
genome.go → Genome model and instruction logic
...
game/
game.go → World loop, bot stepping, controller handling
ui/
ui.go → OpenGL rendering and input handling
- Bots have an instruction pointer, genome matrix, HP, and inventory
- Tasks are delegated by colonies: connect positions, maintain links, etc.
- Board is a grid of cells with typed content (walls, food, controller, etc.)
- Game loop runs bot logic and environmental updates on a tick-based basis
