Extruding PEBI grid with makeLayeredGrid

[vetlenev]

Hi,

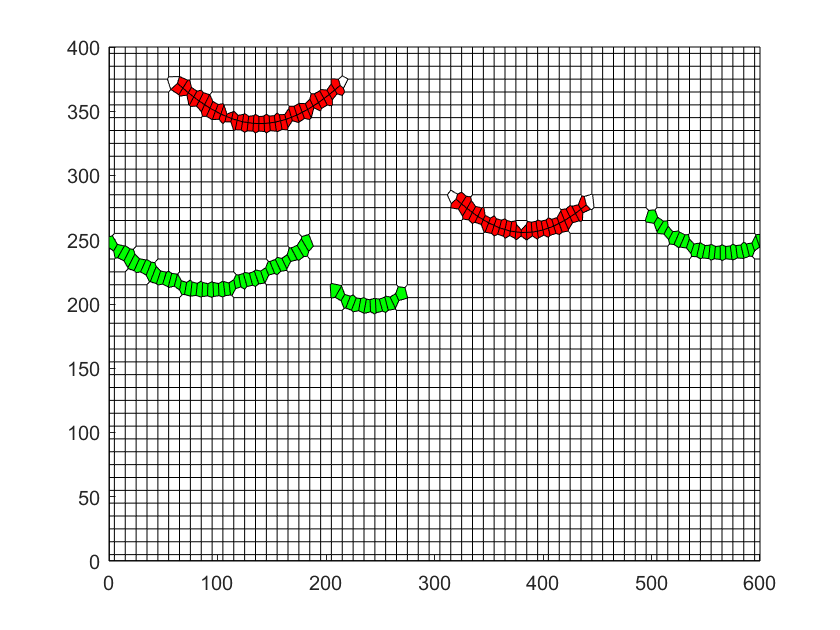

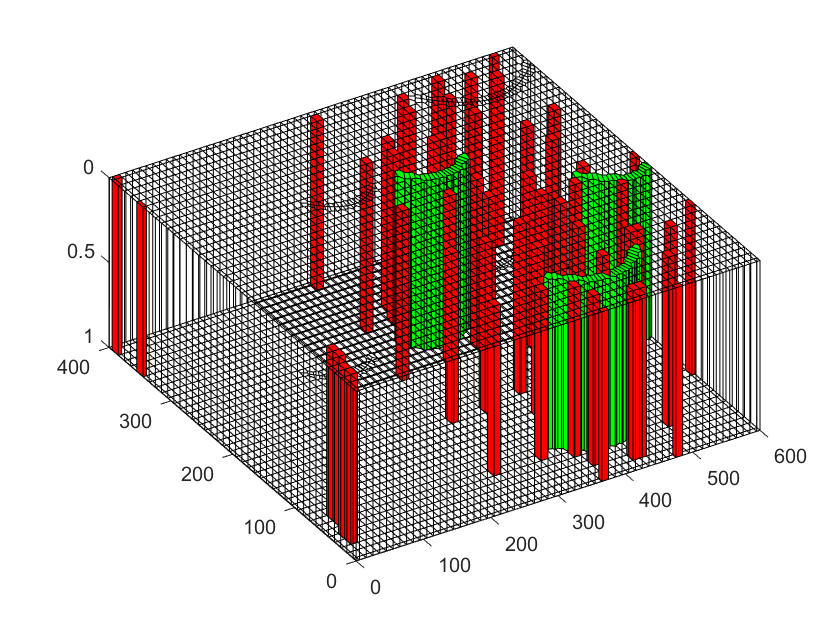

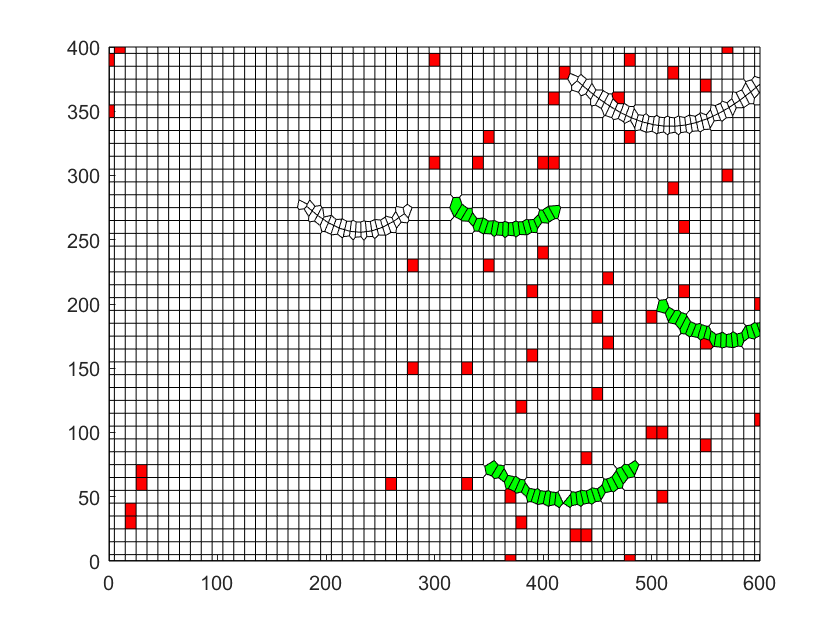

I am trying to extrude a 2D PEBI grid generated with compositePebiGrid2D to 3D, just a single layer. The extrusion itself works fine. However, the face constraints assigned to the PEBI grid apparently becomes mixed up. Ordinarily, I access the face constraints with PG.faces.tag == 1 where PG is my PEBI grid, but it seems like the tags are not conforming properly to the new extruded grid. Red marked cells should be neighbors to the face constraints, which is obviously not the case for the extruded version (2nd and 3rd plot).

%% Effect of number of lowperm layers
% Illustrate how different number of lowperm layers affect CO2 migration.
mrstModule add incomp ad-core ad-blackoil ad-props mrst-gui test-suite UPR
ROOTDIR = strrep(ROOTDIR, '\', '/');

my_seed = 8441;
n_layers = 5;
n_lowperm_layers = ceil(n_layers/2);
n_imperm_layers = floor(n_layers/2);

%% Define 2D grid
nx = 60; ny = 1; nz = 40; % 100 50
lx = 600; ly = 1; lz = 400; % 1000 350
dims = [nx ny nz];
gridsize = [lx, ly, lz]*meter;
global G;
G = cartGrid(dims, gridsize);
G = computeGeometry(G);

[ii, jj, kk] = gridLogicalIndices(G);
x_dummy = G.cells.centroids(:,1);
z_dummy = G.cells.centroids(:,3);
dz = max(diff(z_dummy))/2;
dx = max(diff(x_dummy))/2;


%% Test PEBI
sin_arg = @(x, x_start, x_stop) 0.8*(x - x_start)/(x_stop - x_start) + 0.2*(x_stop - x)/(x_stop - x_start);
perc_val = @(arr, perc, varargin) perc*(max(arr) - min(arr)) + min(arr);
rand_a_b = @(a, b, num) (b-a).*rand(num,1) + a; % random number between a and b

cons_faces = {};
cons_cells = {};
rand_x_mid = rand_a_b(min(x_dummy), max(x_dummy), n_layers);

layers_length = randi([round(perc_val(x_dummy, 0.10)), ...
                        round(perc_val(x_dummy, 0.35))], ...
                        [n_layers, 1]);

x_start = rand_x_mid - round(layers_length/2);
x_stop = rand_x_mid + round(layers_length/2);

min_x = min(x_dummy)-dx; max_x = max(x_dummy)+dx;
min_z = min(z_dummy)-dz; max_z = max(z_dummy)+dz;

for i=1:n_layers
    r = (x_stop(i) - x_start(i))/2;
    x0 = x_start(i):max(lx/nx, lz/nz):x_stop(i);
    x0 = x0(x0 >= min_x-dx & x0 <= max_x+dx); % prevent layers going out of x-dim. Extra dx added to ensure we are indeed out of bounds

    amp = sin_arg(x0, x_start(i), x_stop(i));

    z_curve = r*sin(pi*amp); % anticline form
    z_shift = r/2*(1+cos(pi/2-pi*min(amp))); % shift anticline
    rand_z = max(0.01, min(rand(), 0.90)); % 0.90 to prevent overlaying the well

    z0 = perc_val(z_dummy, rand_z) - z_curve + z_shift;

    z0 = z0(z0 >= min_z & z0 <= max_z); % prevent layers going out of z-dim
    x0 = x0(z0 >= min_z & z0 <= max_z);

    if i <= n_imperm_layers
        cons_faces = cat(1, cons_faces, [x0(:), z0(:)]);
    else
        cons_cells = cat(1, cons_cells, [x0(:), z0(:)]);
    end
end

cons_faces = transpose(cons_faces);
cons_cells = transpose(cons_cells);

PG = compositePebiGrid2D([lx/nx, lz/nz], [lx, lz], 'faceConstraints', cons_faces, ...
                        'cellConstraints', cons_cells, ...
                        'polyBdr', [min_x, min_z; min_x, max_z; max_x, max_z; max_x, min_z]);

% ------- UNCOMMENT THIS -----------
PG = makeLayeredGrid(PG, 1); % Extrude pebi grid to 3D
% ----------------------------------

PG = computeGeometry(PG); % to access centroids
PG.cells.indexMap = (1:PG.cells.num).';

x = PG.cells.centroids(:,1);
z = PG.cells.centroids(:,2); % treat this as depth-dim

%% Plot grid
clf;
figure(1)
plotGrid(PG,'FaceColor','none');

imperm_layers = [];
for i=1:2
    cons_neighbors = PG.faces.neighbors(:,i);
    imperm_layers = cat(1, imperm_layers, cons_neighbors(PG.faces.tag == 1));
end

plotGrid(PG, imperm_layers, 'facecolor', 'red')
%plotFaces(PG, PG.cells.faces(PG.faces.tag == 1), 'red')
plotGrid(PG, PG.cells.tag == 1, 'facecolor', 'green')
axis tight
%set(gca, 'YDir','reverse')
