feat(desktop): visual model-architecture reader — drill-down graph + code sync + VRAM inspector (design study: LLMForge)

[agentfleets]

Summary

Proposal: a new desktop surface that renders an open-weight LLM's HuggingFace modeling_*.py source as an interactive, drill-downable block diagram, bidirectionally synced with the code pane, plus a hyperparameter inspector and a VRAM estimator.

Design reference: LLMForge's 模型架构 (model architecture) feature — screenshots below. This issue proposes borrowing its interaction and information design, re-expressed in TermiPod's existing dark token system (see "Visual-design stance" — explicitly not a palette import).

Why this fits TermiPod

TermiPod is positioning as an agent control plane and workbench. Users running/serving open-weight models through agents (SSH hosts, remote hubs) currently have no in-app way to answer: what is inside this checkpoint, and will it fit on my GPU? A visual architecture reader strengthens the workbench story: inspect a model's real source, navigate its structure, estimate deployment VRAM for the target host — without leaving the app.

Reference (LLMForge)

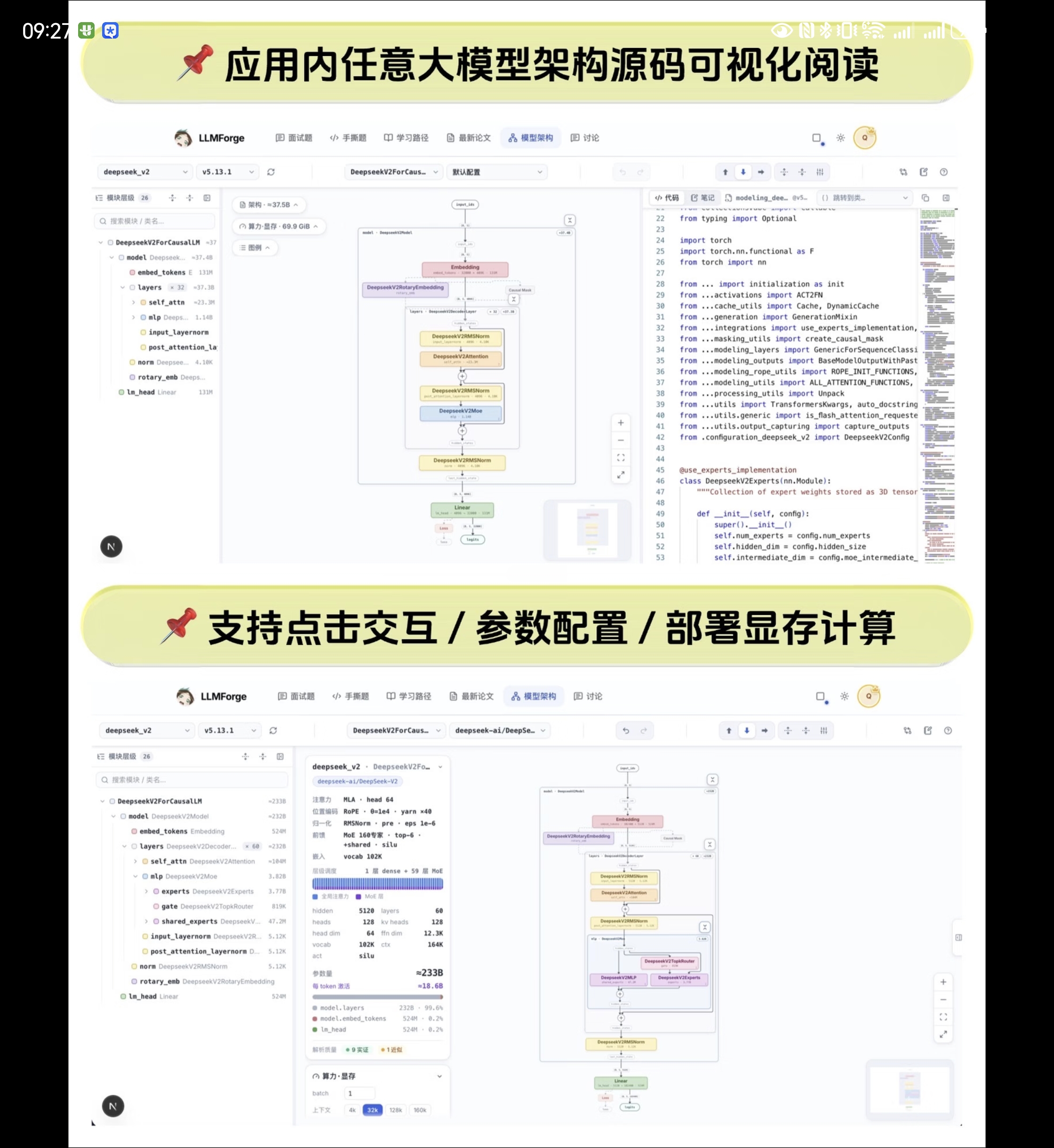

Three-pane workbench + config inspector:

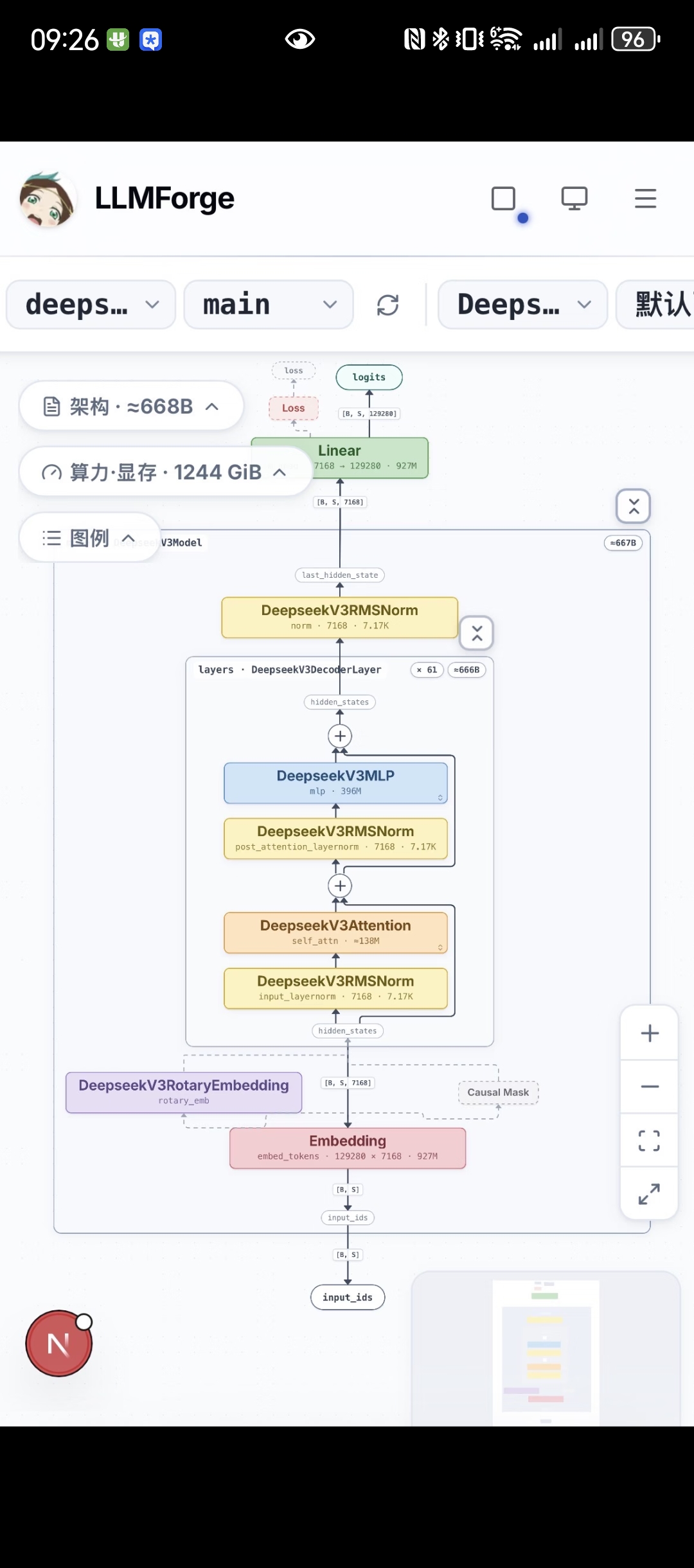

Canvas drill-down detail (nested layer card, ×N repeat frame, tensor-shape edges, minimap, zoom rail):

What to borrow — interaction & information design

1. Three-pane IDE layout — left: nn.Module hierarchy tree with per-node param counts and search; center: infinite canvas; right: code viewer (代码/笔记 tabs, file breadcrumb). Clicking a graph node scrolls the code to that class; the mapping is bidirectional.
2. Drill-down as stacked floating cards — expanding a composite module opens a child card on the canvas (own title bar: breadcrumb + ×N + param total + close), not a page zoom. Keeps parent context visible.
3. ×N repeat-collapse — N identical decoder layers render as ONE framed container with × 61 and an aggregate badge (≈666B). The single most important readability trick for transformer graphs.
4. Honest dataflow — tensor shapes on edges ([B, S, 7168]); residual adds drawn as ⊕ circles, not boxes; auxiliary inputs (Causal Mask, loss) as dashed-gray chips.
5. Categorical node colors — pastel-coded by layer kind (Embedding/Norm/Attention/MLP-MoE/RoPE/Linear). See the visual-design stance below for how to adapt this to dark.
6. Provenance badge — 解析质量 · 9 实证 · 1 近似 (9 verified / 1 inferred). Every number on screen declares whether it was measured or estimated. Cheap to implement, huge for trust.
7. Floating collapsible stat chips over the canvas (架构 ≈668B, 算力·显存 1244 GiB, 图例) — glanceable totals that expand into detail.
8. Inspector panel — sectioned key-value rows (attention/pos-enc/norm/FFN/embedding), a dense mono hyperparameter grid, a layer-schedule strip (per-layer segments colored by type), a param breakdown bar, and batch/context-length chips that recompute VRAM live.
9. Canvas furniture — minimap, zoom rail (+/−/fit/fullscreen), layout-direction toggle.

Visual-design stance (patterns, not palette)

Compared against the desktop's current design system (design-tokens/tokens.json + 01-base-shell.css): TermiPod's dark-first, Linear/Radix-grounded language (hairline separation, shadow-less cards, single accent, AA-measured contrast) is the more modern base and should be kept. LLMForge's light surfaces, per-card drop shadows and pastel fills should not be imported.

The one sanctioned extension to the single-accent rule: categorical node colors as dark-theme tints, e.g. fill color-mix(in srgb, <hue> 12–16%, var(--surface)) + 1px hue-tinted border + hue-shifted text, sourced from existing token hues (--color-info, --color-secondary, --color-success, --color-violet, terminal cyan/magenta). Category coding is functional here (6+ layer kinds), which the single accent cannot carry; the tint approach keeps the dark elevation discipline intact.

Proposed implementation architecture

1. Ingestion → graph IR (JSON, cacheable per model+version). Two complementary routes, which is exactly what the provenance badge implies:

• Static: parse the Python AST — class tree → module hierarchy; forward() body → dataflow edges between submodules. Yields verified structure and the code-sync source spans.
• Numeric: infer shapes/params from config.json analytically (or optionally run a one-shot torch.fx trace / forward hooks on a dummy input for measured shapes). Anything inferred is flagged approximate.

{
  "model": "deepseek_v2", "version": "v5.13.1",
  "nodes": [{
    "id": "model.layers.0.self_attn",
    "kind": "attention",            // embedding|norm|attention|mlp|moe|rope|linear|aux
    "class": "DeepseekV2Attention",
    "attrs": { "heads": 128, "kv_heads": 128 },
    "params": 138000000, "paramsProvenance": "verified",   // or "approximate"
    "repeat": 61,
    "span": { "file": "modeling_deepseek.py", "start": 812, "end": 1040 },
    "children": [ /* nested graph */ ]
  }],
  "edges": [{ "from": "…", "to": "…", "shape": "[B,S,7168]", "kind": "residual|data|aux" }]
}

2. Layout — ELK (elkjs, layered/Sugiyama): proper support for compound/nested graphs, ports, orthogonal edge routing. (@hpcc-js/wasm-graphviz is already shipped and is an acceptable M1 fallback, but it handles compound nesting poorly.) Expanding a card re-layouts only that subgraph.

3. Canvas — React Flow (XYFlow), new dep (~50 kB): custom node components, subflows/containers, minimap, zoom controls and edge labels out of the box. Custom Canvas/WebGL only if node counts exceed ~1–2k.

4. Code pane — CodeMirror (already a dependency), read-only, with sourceSpan ranges for node↔code highlighting.

5. Inspector + VRAM estimator — pure TypeScript arithmetic from config.json per architecture family (MLA/GQA attention, dense/MoE FFN, embeddings): params per layer type; VRAM = weights (params × dtype bytes) + KV cache (layers × kv-heads × head-dim × ctx × batch × bytes) + activation estimate. Config profiles (默认配置 vs overrides) recompute client-side, instant.

Execution location: analysis is a small Python worker (AST extraction, stdlib-only for M1) runnable over SSH on the agent host or as a hub-side job; the IR JSON is cached per (model, version) so re-opens are instant.

Phasing

• M1 — structure: AST module tree (left pane) + ELK-laid-out top-level graph on a React Flow canvas, read-only, one local model dir. Provenance flag on every number from day one.
• M2 — depth: drill-down stacked cards, ×N repeat-collapse, node↔code bidirectional sync, tensor-shape edge labels.
• M3 — inspector: config inspector panel, layer-schedule strip, param breakdown, batch/ctx VRAM estimator with config profiles.

Open questions for the maintainer

1. Analysis runtime: ship the Python AST worker for SSH hosts only, or also hub-side for browser-build users?
2. React Flow as a new dependency vs. extending the existing CanvasEditor stack? (React Flow's subflow/minimap primitives map 1:1 to the drill-down design; CanvasEditor is a document canvas, not a graph renderer.)
3. Model-family coverage order — deepseek / llama / qwen first (single modeling_*.py files, well-structured), MoE families later?
4. Where does the surface live in the IA: a new surface next to Read, or a mode of the Library?

Non-goals

• No model execution/training integration, no live activation inspection (M-beyond).
• Not a general Netron replacement — scoped to HF modeling_*.py source reading.

[physercoe]

Reviewed and reconciled into the J3 plan: docs/plans/debug-code-logs-diffs-models.md (committed db017912), which rebuilds the Debug tab — renamed Inspect — as a tabbed inspector surface (code / diff / log / model). This proposal is absorbed there as §5 W4b — HF source reader, sequenced after the W4 core (checkpoint tables + config card). Answers to the open questions, and what was adopted vs corrected:

Adopted (these genuinely improve W4):

• ×N repeat-collapse with stacked drill-down cards — becomes the default rendering for the templated-family view (Model Explorer's namespace collapsing can't dedup repeated layers).
• Per-value provenance badges (verified / approximate) from day one.
• VRAM estimator — pure-TS from config.json, per family; the plan's templates already distinguish MLA, which is exactly where KV-cache math diverges. Live batch/context chips as proposed.
• AST worker for code sync (scoped): stdlib-only Python extracting class hierarchy + source spans from known HF modeling_*.py files, for bidirectional node↔code navigation. forward() dataflow stays approximate-flagged; measured truth is the plan's meta-device torch.export tier.
• Visual stance as written: patterns not palette; categorical node colors as dark-theme tints from existing token hues.

Answers to the open questions:

1. Analysis runtime — the same per-host interpreter-preset venues the plan's code→graph tracer uses (venv / conda run / docker exec -i / uv run, piped over stdin), or local Python; hub-side jobs later. IR JSON cached per (model, version) as proposed.
2. React Flow vs CanvasEditor stack — React Flow, and it is already a dependency (the Author canvas v2 shipped on @xyflow/react in 2026.723.247), so only elkjs (~1.4 MB, lazy chunk) is new. It does not replace the other graph backends: RF is for this reader (tens of visible nodes thanks to ×N); Model Explorer's custom element keeps the deep traced ATen graphs (RF degrades past ~1–2k nodes, as the issue notes); WASM graphviz keeps torchview DOT.
3. Family order — llama/qwen/deepseek first, matching the plan's config-card template list (dense-GQA · classic MoE · MLA+MoE); deepseek exercises MLA+MoE.
4. Where it lives — not a new surface: it is the Inspect tab's model kind; the three-pane layout maps 1:1 onto W4's namespace tree · graph view · CodeView.

One correction: the optional torch.fx trace route is stale — symbolic_trace fails on shape-dependent control flow (verified against torch 2.13). The measured tier is torch.export (strict=False) on meta-instantiated models, already specified in the plan along with the Model Explorer serverless-JSON adapter path.

The plan also specifies a device-test fixture set (tiny hand-written safetensors, family config.jsons incl. a deepseek MLA+MoE one, malformed-file error cases, a toy nn.Module) so this surface is smoke-testable without torch or a GPU host.
