Hi https://drive.google.com/file/d/1_tNv8-8cAoXtks3gw6s79R9pOkgbps53/view?pli=1 But when open the key have a error: PKSerial Error: [Errno 5] input/output error And need to restart MKOB.py, my OS is a Debian 11, python version 3.11.2 Could help? Thanks! |
Replies: 13 comments 3 replies
|
Hi Emilio,
Can you tell me what version of PyKOB & MKOB you are using? If you are
starting it in a terminal window, it should print both versions when it
starts. I might ask you to increase the logging level and send me a log,
but we'll see.
Also, what serial connection are you using? In other words, does your
system have an actual serial port or are you using a serial-to-usb cable?
If USB, what cable is it?
Sorry for so many questions, but hopefully we can get you running without
too many back-and-forths.
-Ed
…On Fri, May 29, 2026 at 5:11 PM Emilio Ruiz ***@***.***> wrote:
Hi
I made the inteface serial circuit:
https://drive.google.com/file/d/1_tNv8-8cAoXtks3gw6s79R9pOkgbps53/view?pli=1
But when open the key have a error:
PKSerial Error: [Errno 5] input/output error
And need to restart MKOB.py, my OS is a Debian 11, python version 3.11.2
Could help? Thanks!
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXO3RYILIZO6FMWBDZ7T45IRKPA5CNFSNUABBM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63RPGEYDCNRUGQYTLJTSMVQXG33OVJZXKYTTMNZGSYTFMSSWK5TFNZ2KYZTPN52GK4S7MNWGSY3L>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO3PZQAA6AUXGFE53YL45IRKPAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43GRDJONRXK43TNFXW4OZRGAYTMNBUGE2Q>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO5GJL2XQN56L5GEDRL45IRKPA5CNFSNUABBM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63RPGEYDCNRUGQYTLJTSMVQXG33OVJZXKYTTMNZGSYTFMSSWK5TFNZ2KUZTPN52GK4S7NFXXG>
and Android
<https://github.com/notifications/mobile/android/AETPXOYF43VUXBKP4T6WXZD45IRKPA5CNFSNUABBM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63RPGEYDCNRUGQYTLJTSMVQXG33OVJZXKYTTMNZGSYTFMSSWK5TFNZ2K4ZTPN52GK4S7MFXGI4TPNFSA>.
Download it today!
You are receiving this because you are subscribed to this thread.Message
ID: ***@***.***>
|
|
Hi Ed, The usb-to-serial adapter is like that: https://www.electric-b2c.com/cdn/shop/products/ch340-usb-to-rs232-serial-port-9-pin-db9-cable-serial-com-port-adapter-convertor-support-windows-7-electrical-center-b2c-3.jpg Thanks for your help. |
|
Hi Emilio,
Thanks for the info. I have Devian 12 on an IBM Thinkpad as well (one of
multiple systems). One difference is that I don't have that USB-Serial
converter/cable, but hopefully I can get you running shortly.
I'm going to ask that you increase the logging level and capture a log for
me. To increase the log level, go into Preferences and go to the Advanced
tab. At the bottom, increase the level to '3'.
[image: image.png]
Save that configuration.
Run MKOB and 'tee' the output into a file (you should see a lot more output
in the terminal). Cause the error and then close MKOB and send me the file.
Sorry you are having problems.
-Ed
…On Sat, May 30, 2026 at 7:15 AM Emilio Ruiz ***@***.***> wrote:
Hi Ed,
*PyKOB* 1.4.10
*MKOB* 4.4.3
*Python* 3.11.2
*Tcl/Tk 8.6*
Debian 12 in a IBM Thinkpad X60s
And the serial port with usb-to-serial, the lsusb linux command: Bus 001
Device 006: ID 1a86:7523 QinHeng Electronics CH340 serial converter
Thanks for your help.
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXO7QC6IVSAXWPAMCNXD45LUIBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE3DINJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17116452>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO5WP5N4DZLZG6ZCLYL45LUIBAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJRGY2DKMQ>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO6XYR44YRRNVUWYTU345LUIBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE3DINJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXOYQU3JWJSOQ3AGEZ7D45LUIBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE3DINJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|
Hi Ed, Change de log level and run mkob.py python3 MKOB.py | tee mkob-log.txt Attach the output Paste my local .pykob configuration too: [PYKOB] I made a simple python program for monitor the serial python module the program only show the DSR and CTS status in a loop but when open the KOB hardware circuit the program break and show the next message: Puerto abierto: /dev/ttyUSB0 DTR (Pin 4): CERRADO | DSR (Pin 6): ABIERTO | CTS (Pin 8): False | RTS (Pin 7): True Thanks for your help again |
|
Hi,
Thanks for that. Not sure why the 'tee' didn't get all the output.
The configuration you provided might not be the right one, because it has:
logging_level=0
yet the output is showing output levels up to '3' (as I requested).
The configuration it is using is: /home/emilio/.pykob/config2-emilio.ini
Anyway... I don't see the serial error (exception) in the output.
It appears to run and then be shut down: 2026-05-30 13:28:14 DEBUG[1]:
MKOBWindow._on_app_destoy triggered.
Does it run correctly if you don't use the interface and use the system
sound? If so, can you try using the system sound (don't enable the sounder)
and the key, and see what happens?
Thanks,
-Ed
…On Sat, May 30, 2026 at 12:38 PM Emilio Ruiz ***@***.***> wrote:
Hi Ed,
Change de log level and run mkob.py
ython3 MKOB.py | tee mkob-log.txt
The output file only have these lines:
MKOB 4.4.3
Python: 3.11.2 (main, Apr 8 2026, 01:58:00) [GCC 12.2.0] on linux
pykob: 1.4.10
Tcl/Tk: 8.6/8.6
INFO: Using global configuration for user: emilio -
(/home/emilio/.pykob/config2-emilio.ini)
~73
But before without tee comand the terminal show the next lines:
MKOB 4.4.3
Python: 3.11.2 (main, Apr 8 2026, 01:58:00) [GCC 12.2.0] on linux
pykob: 1.4.10
Tcl/Tk: 8.6/8.6
INFO: Using global configuration for user: emilio -
(/home/emilio/.pykob/config2-emilio.ini)
2026-05-30 13:27:29 DEBUG[1]: log.set_logging_level: 3
2026-05-30 13:27:29 DEBUG[1]: Interface type: Serial Port Equipment type:
LOOP
2026-05-30 13:27:29 DEBUG[1]: MKMain.preferences_closed.
2026-05-30 13:27:29 DEBUG[1]: mkm - Preferences Dialog closed. Change
types: 4
2026-05-30 13:27:29 DEBUG[1]: log.set_logging_level: 3
2026-05-30 13:27:29 DEBUG[2]: MKMain._update_from_config. CT:4
2026-05-30 13:27:29 DEBUG[1]: log.set_logging_level: 3
2026-05-30 13:27:34 DEBUG[1]: MKMain.preferences_opening.
2026-05-30 13:27:34 DEBUG[1]: log.set_logging_level: 3
2026-05-30 13:27:35 DEBUG[1]: preferencesWindow - Serial Port:
dev='/dev/ttyUSB0' name='ttyUSB0' id='USB VID:PID=1A86:7523 LOCATION=2-2'
desc='USB2.0-Ser!' mfg='None' SN='None' prod='USB2.0-Ser!'
2026-05-30 13:27:36 DEBUG[1]: Interface type: Serial Port Equipment type:
LOOP
2026-05-30 13:27:36 DEBUG[1]: MKMain.preferences_closed.
2026-05-30 13:27:36 DEBUG[1]: mkm - Preferences Dialog closed. Change
types: 0
2026-05-30 13:27:44 DEBUG[2]: KOB: Sounder power-save on
2026-05-30 13:27:44 DEBUG[3]: kob._energize_hw_sounder: False:False
2026-05-30 13:27:53 DEBUG[3]: kob._set_virtual_closer_open: False->True
2026-05-30 13:27:53 DEBUG[2]: KOB: Sounder power-save off
2026-05-30 13:27:53 DEBUG[3]: kob._energize_hw_sounder: True:True
2026-05-30 13:27:53 DEBUG[2]: kob._update_modes: was REC:REC - [True:True]|
False:True <http://False>
2026-05-30 13:27:53 DEBUG[2]: kob._update_modes: now EFK:FK
2026-05-30 13:27:53 DEBUG[3]: kob._energize_hw_sounder: True:True
2026-05-30 13:27:53 DEBUG[3]: kob._set_virtual_closer_open: True->False
2026-05-30 13:27:53 DEBUG[2]: kob._update_modes: was EFK:FK - [True:True]|
True:False <http://False>
2026-05-30 13:27:53 DEBUG[2]: kob._update_modes: now REC:REC
2026-05-30 13:27:53 DEBUG[3]: kob._energize_hw_sounder: True:True
2026-05-30 13:28:14 DEBUG[1]: MKOBWindow._on_app_destoy triggered.
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 1
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 2
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 3
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 3b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 4
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 5
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 5b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 6
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 7
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 7b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 8
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 8b
2026-05-30 13:28:14 DEBUG[1]: KOB-KeyRead thread done.
2026-05-30 13:28:14 DEBUG[1]: KOB-PowerSave thread done.
2026-05-30 13:28:14 DEBUG[1]: Internet-Keep-Alive thread done.
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 1
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 1
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 2
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 3
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 3b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 4
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 5
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 5b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 6
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 7
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 7b
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 8
2026-05-30 13:28:14 DEBUG[3]: mkmain.shutdown - 8b
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 2
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 3
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 3b
2026-05-30 13:28:14 DEBUG[1]: KOB-Keyer thread done.
2026-05-30 13:28:14 DEBUG[1]: Internet-Data-Read thread done.
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 4
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 5
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 6
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 6b
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 7
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 7b
2026-05-30 13:28:14 DEBUG[1]: MKMain-EmitCode thread done.
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 8
2026-05-30 13:28:14 DEBUG[3]: mkmain.exit - 8b
2026-05-30 13:28:14 DEBUG[3]: PKSerial.exit - 1
2026-05-30 13:28:14 DEBUG[3]: PKSerial.shutdown
2026-05-30 13:28:14 DEBUG[1]: PKSerial-PortChk thread done.
2026-05-30 13:28:14 DEBUG[3]: PKSerial.exit - 2
2026-05-30 13:28:14 DEBUG[1]: MKOBMain - Done
~73
Paste my local .pykob configuration too:
[PYKOB]
audio_type=SOUNDER
auto_connect=OFF
code_type=AMERICAN
decode_at_detected=OFF
interface_type=LOOP
key_input_invert=OFF
local=ON
logging_level=0
char_speed_min=18
no_key_closer=OFF
open_extend=OFF
remote=ON
server_url=mtc-kob.dyndns.org:7890
sound=OFF
sounder=ON
sounder_power_save=60
spacing=NONE
station=CH EMILIO Chiapas MX
wire=101
text_speed=18
Thanks for your help again
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXO4VY6XTHSVJCHCXZAT45M2DTA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4DCOBXUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17118187>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXOYQ64DAGWPQA37G5GL45M2DTAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJRHAYTQNY>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO2RCJ2P5MBBD3UK2JL45M2DTA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4DCOBXUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXOYQOSHUACGMJJZ5JPT45M2DTA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4DCOBXUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|
Hi Ed, Attach again the Tee output: And share a screencapture video: https://sbj.edu.mx/videos/mkob-emilio.mp4 In the bottom notification bar you see the error. Thanks Ed for help me |
|
Hi Emilio,
Thank you for the video. I don't understand why the error doesn't show up
in the log. Can you try redirecting stderr to stdout and capture that?
Also, thanks for letting me know that the sounder works as long as you
don't open the key.
So to verify, it is working okay (physical sounder sounds code if connected
to a wire or you enter something in the sender text box), and then you open
the key and it gets the error and exits?
Unfortunately, the error numbers from the Linux I/O are not very specific.
Especially 'Errno 5', just means that the system lost contact with the
connected device. You probably don't have a different USB-Serial cable, or
I would ask you to try that.
As another experiment, can you try starting with the key open? Of course,
with it open the sounder won't sound (since you have a LOOP circuit), but I
would be interested if it runs, and then what happens if you close it.
I'm sorry that you are having problems. I'm sure we can get it working.
-Ed
…On Sat, May 30, 2026 at 4:39 PM Emilio Ruiz ***@***.***> wrote:
Hi Ed,
When only use the sound key and sounder simulation (audio from computer)
mkob.py works fine, the issue only have when put the serial-usb adapter,
and only when try use the telegraph key, the physical (real) sounder works
fine, when open the circuit the mkob.py have a error.
Attach again the Tee output:
mkob-log.txt
<https://github.com/user-attachments/files/28430118/mkob-log.txt>
And share a screencapture video:
https://sbj.edu.mx/videos/mkob-emilio.mp4
In the bottom notification bar you see the error.
Thanks Ed for help me
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXO2GNWZWCPS5UYQK2GL45NWMLA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4TCNJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17119152>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO4XHCCK4OQXL5QTGYD45NWMLAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJRHEYTKMQ>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO7JOAH7I5PPVAHGSZL45NWMLA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4TCNJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXO5JCGEOG2LH2OVKYMD45NWMLA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGE4TCNJSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|
Hi Ed Yes, when connect to a wire the physical sounder works fine, if click in the "Key Close" bottom i can write in the textarea form and send. The onley error are when open the physical circuit, here another video: https://sbj.edu.mx/videos/sounder-mkob.mp4 I try another thing, made the "Key only" interface: https://sites.google.com/site/morsekob/morsekob25/interface#h.p_rlnkvXU8OK0h Connect the USB-SERIAL adapter pin 4 and 6 and try send code and didnt work!!! no error too, nothing happend. Perhaps the USB-SERIAL adapter need drivers or something like that?, what interface use in your thinkpad? I have another USB-serial adapter like that: https://store.mectronica.it/6910-large_default/5v-33v-serial-ttl-nivel-usb-20-adaptador-modulo-usb-con-cables-para-arduino.jpg Thanks for help. |
|
Hi Emilio,
Thank you for the extended video. I was going to ask if it is able to
reconnect, and your video demonstrates that it does.
As for your question about interface... I make an interface that is in use
at a number of museums. I have a couple of those that I use on my machines
(Linux, Windows, and Mac). I also have one that I made on a perfboard using
the save schematic you used. For it I use an FTDI USB-Serial cable. The
interfaces that I supply to museums use an FTDI chip that performs the same
operation as the USB-Serial cable.
Here is a link to the manual for my interface:
https://github.com/MorseKOB/MuKOB/blob/main/docs/Ref-Manual-KSIF-MkV.pdf
(You need to click 'more pages' at the bottom a few times to get through
the whole thing. Or download it and view it locally.)
Back to your problem... The one thing you might try is a TVS diode (or a
pair of 10V zeners CtoC); first across J2 (in the schematic on the
webpage). If that doesn't work, then try one between J1 P4&P6 and one
between P3&P6.
The other thing would be to try an FTDI USB-Serial cable, as I have used
them with success with that interface and I know others that have as well.
I'm really sorry that you are having problems with your setup. I added the
connection retry logic to MKOB/PyKOB to assist with a few museums that
found that the interface would occasionally drop off overnight, and it was
causing them to need to restart MKOB. But it shouldn't drop out after just
a character or two, as it is with you.
…-Ed
On Tue, Jun 2, 2026 at 5:55 PM Emilio Ruiz ***@***.***> wrote:
Hi Ed
Yes, when connect to a wire the physical sounder works fine, if click in
the "Key Close" bottom i can write in the textarea form and send. The onley
error are when open the physical circuit, here another video:
https://sbj.edu.mx/videos/sounder-mkob.mp4
I try another thing, made the "Key only" interface:
https://sites.google.com/site/morsekob/morsekob25/interface#h.p_rlnkvXU8OK0h
Connect the USB-SERIAL adapter pin 4 and 6 and try send code and didnt
work!!! no error too, nothing happend.
Perhaps the USB-SERIAL adapter need drivers or something like that?, what
interface use in your thinkpad? I have another USB-serial adapter like
that:
https://store.mectronica.it/6910-large_default/5v-33v-serial-ttl-nivel-usb-20-adaptador-modulo-usb-con-cables-para-arduino.jpg
Thanks for help.
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXOZLGNYQP2XW6DR3ZIL455ZRBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGU4DQMRSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17158822>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO3JJ7QMGGH66IA447T455ZRBAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJVHA4DEMQ>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXOYFAQZPLSX35HHZHJT455ZRBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGU4DQMRSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXOY7QOZPPRB75A62FID455ZRBA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGU4DQMRSUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|
Hi Ed I remember have a docker for the Thinkpad X60s and built in a serial conector, make a test and the MKOB.py run perfect!! so the problem is this kind of adapter serial to USB for some reason no send any input in the DSR pin!!! Next days made a serial cable extension and i can work with the (physical) KOB. Thanks for your help. |
|
Hi Emilio,
I'm glad you were able to try a different option. You say about a docker
for the Thinkpad with the serial connector. Does that Thinkpad use Windows?
If so, there is a Windows installer for the whole MKOB Suite. You can get
it here: https://www.aesilky.com/morse
Scroll down to where it says: Download MKOB Suite 4.6.0 Installer for Win64
As I mentioned, I have had good luck with the FTDI USB-Serial cables.
-Ed
…On Tue, Jun 2, 2026 at 9:04 PM Emilio Ruiz ***@***.***> wrote:
Hi Ed
I remember have a docker for the Thinkpad X60s and built in a serial
conector, make a test and the MKOB.py run perfect!! so the problem is this
kind of adapter serial to USB for some reason no send any input in the DSR
pin!!!
Next days made a serial cable extension and i can work with the (physical)
KOB. Thanks for your help.
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXO52ZAFOHQLDJSXUYHD456PTXA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGYYDAOBYUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17160088>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO7QM4CA3ELJ3E5SFED456PTXAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJWGAYDQOA>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO6ISTJ7T3OB3AJ3OEL456PTXA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGYYDAOBYUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXO5KTRW6OW6QC2P3BHD456PTXA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRGYYDAOBYUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|

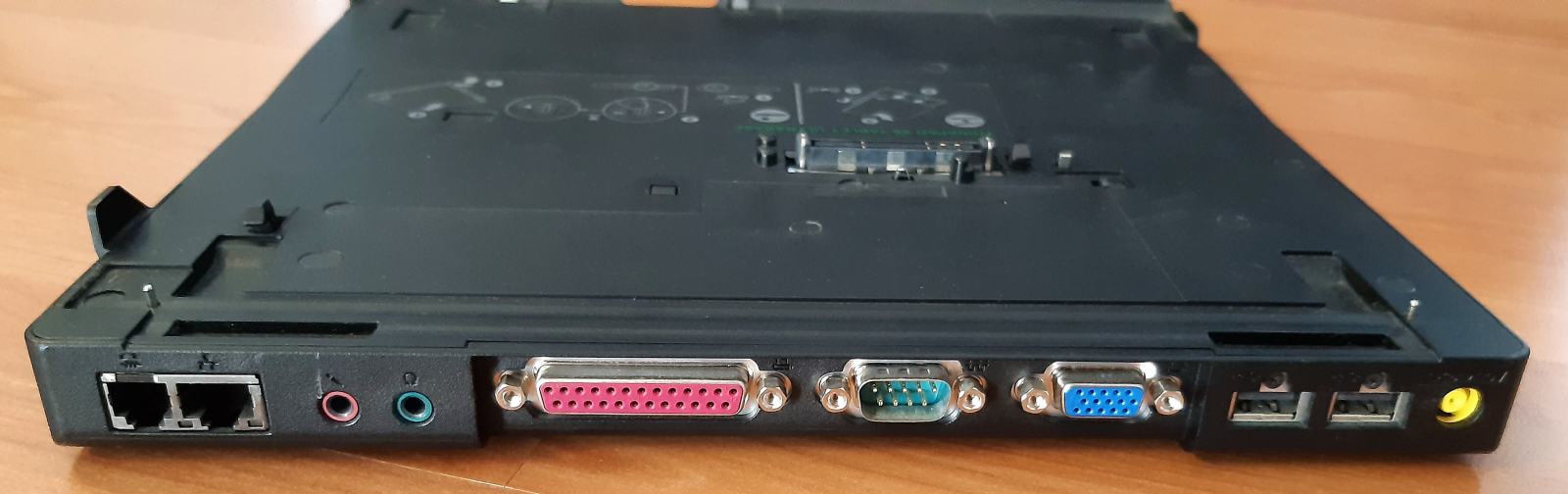

Hi Ed, Is the same Thinpad X60s with Debian 12 only put the docker: Have a serial connector, test with this and the MKOB.py work perfect. So the problem was the another usb-serial adapter for some reason the pin DTR does not recognize HIGH or LOW values from physical Key. thanks and hope hear you soon in the wire 11
|
|
<<< This message is from Chris Hausler, who was having problems posting in this discussion >>> I have used the circuit as published on the MorseKOB web site for some years. I tried to send him a couple of photos of a working set-up with a practice KOB similar to his with some suggestions. The configuration shown uses a 5 Ohm sounder and I don't know whether his is a 4 to 5 Ohm or a 20 Ohm (the most likely values). In the photo of mine you can see a series 3.9 Ohm metal film resistor and the wall wart power brick is set to 3 volts (the "loop" is essentially implemented on the little 4 terminal barrier strip). When I have used a 20 Ohm practice KOB I change these values to 20 Ohms and 6 volts which I've used successfully with such configurations. The series resistor both reduces the inductive time constant but particularly with these small resistance higher current units it provides a current limiting feature in case one shorts out their KOB :-) The configuration shows the Chipi-X FTDI USB-to-Serial cable I've been using recently. Here's a link to a datasheet on this cable: https://ftdichip.com/wp-content/uploads/2023/07/DS_Chipi-X.pdf . That said, in previous times I have used a couple of earlier cables which used the Prolific driver also successfully. This configuration works successfully with both version MorseKOB version 2.5 and your Windows package (I have 4.4.0c) without any trouble. The second photo shows the bottom of the KOB with the TVS diode installed directly across the sounder coils. For 4 to 20 Ohm units I use the 7 volt Littelfuse SA7.0CA as recommended by Chip Morgan. Here's a link to the datasheet for these TVS diodes: I've purchased them from Mouser. Since he also tried the key only approach without success I'm wondering if the serial interface isn't energizing the DTR signal which is just being used as positive power by the op amp. Anyway, I have attached the two photos if you want to send them to him (as apparently I am unable to do so). 73, Chris |
|
Hi Ed, Thanks Mr. Chris for the help. Made a variable power supply now put 3 volts to the circuit and consume about 0.4 Amp, so i think no need the resistor for the coil. Attach a video with the MKOB.py running: https://sbj.edu.mx/videos/sounder-mkob-fix.mp4 Gracias por toda la ayuda
|
|
Excellent!
I'll leave the discussion open for now, that way others can post to it if
they have a question or comment.
-Ed
…On Wed, Jun 3, 2026 at 12:31 PM Emilio Ruiz ***@***.***> wrote:
Hi Ed,
Thanks Mr. Chris for the help. Made a variable power supply now put 3
volts to the circuit and consume about 0.4 Amp, so i think no need the
resistor for the coil.
Attach a video with the MKOB.py running:
https://sbj.edu.mx/videos/sounder-mkob-fix.mp4
Gracias por toda la ayuda
- Emilio
—
Reply to this email directly, view it on GitHub
<#405?email_source=notifications&email_token=AETPXOZT7KEQ6XSUTFJU3H346B4KHA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRG4YTANBUUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSWGM33PORSXEX3DNRUWG2Y#discussioncomment-17171044>,
or unsubscribe
<https://github.com/notifications/unsubscribe-auth/AETPXO43XBKIOKYFTBR5XX346B4KHAVCNFSM6AAAAACZTFVJR6VHI2DSMVQWIX3LMV43URDJONRXK43TNFXW4Q3PNVWWK3TUHMYTOMJXGEYDINA>
.
Triage notifications, keep track of coding agent tasks and review pull
requests on the go with GitHub Mobile for iOS
<https://github.com/notifications/mobile/ios/AETPXO776TFUJH2MW6H4VRT46B4KHA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRG4YTANBUUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSVGM33PORSXEX3JN5ZQ>
and Android
<https://github.com/notifications/mobile/android/AETPXO7G74IXIBIZIF7ADQT46B4KHA5CNFSNUABIM5UWIORPF5TWS5BNNB2WEL2ENFZWG5LTONUW63SDN5WW2ZLOOQXTCNZRG4YTANBUUZZGKYLTN5XKOY3PNVWWK3TUUVSXMZLOOSXGM33PORSXEX3BNZSHE33JMQ>.
Download it today!
You are receiving this because you commented.Message ID:
***@***.***>
|
|
I believe your problem has been solved by using a different serial interface. If that isn't the case, please feel free to reopen this discussion. |
I believe your problem has been solved by using a different serial interface. If that isn't the case, please feel free to reopen this discussion.
