diff --git "a/1\354\243\274\354\260\250.md" "b/1\354\243\274\354\260\250.md" new file mode 100644 index 0000000..a8300b1 --- /dev/null +++ "b/1\354\243\274\354\260\250.md" @@ -0,0 +1,412 @@ +# 01. 행렬의 필요성 +## 1) 행렬의 필요성 +- 현실 세계의 많은 문제를 쉽게 해결 가능 +- 복잡한 연립 방정식의 해를 구할 수 있음 + +## 2) 행렬의 쓰임 예시 +- 컴퓨터의 메모리 구조 표현 +- 표 형태의 데이터 표현 +- 이미지 표현 (cf. 각각의 픽셀을 행렬로 표현) + + +cf. + - 1차원 배열 : 백터 + - 2차원 배열 : 행렬 + - 3차원 배열 : 텐서 + +cf. + - 더 자세한 내용은 선형대수학 공부 + - 인공지능, 머신러닝은 행렬 필수적 +
+ +# 02. 개발환경 +## 1) PyCharm +- 가장 많은 사람들이 사용하는 파이썬 개발 환경 + +## 2) CoLab (=> Jupyter 기반) +- OpenCV를 포함한 이미지 처리 라이브러리가 기본적으로 설치되어 있음. +- GPU 런타임을 지원 (= GPU 연산을 지원 받을 수 있다.) +- 코드를 공유하며, 협업하기 좋음. + +## 3) Repl.it +- 아무런 계정 없이 Python 개발 가능 +- 여러 사람이 동시에 하나의 화면에서 코딩 가능 +- 다양한 패키지를 검색해서 설치 가능 +
+ +# 03. Numpy의 기본 사용법 +## 1) Numpy 란 ? +- 데이터 분석을 공부할 때 필수적으로 알아야 함. +- 다차원 배열을 효과적으로 처리할 수 있도록 도와줌. +- 현실 세계의 다양한 데이터는 배열 형태로 표현 가능. + +## 2) Numpy의 차원 +- 1차원 축(행) : axis 0 => Vector(벡터) +- 2차원 축(열) : axis 1 => Matrix(행렬) +- 3차원 축(채널) : axis 2 => Tensor(3차원 이상, 텐서) + +## 3) Numpy의 기본 사용법 +#### 가) List를 Numpy로 바꾸기 +

+import numpy as np
+
+list_data = [1, 2, 3]
+array = np.array(list_data)
+
+print(array.size) 	#3
+print(array.dtype) 	#int 64
+print(array[1])		#2
+
+#### 나) Numpy 배열 초기화 +

+import numpy as np
+
+array1 = np.arange(4)                       #0~3배열
+array2 = np.zeros((4, 4), dtype=float)      #0으로 초기화
+array3 = np.ones((3, 3), dtype=str)         #1로 초기화
+array4 = np.random.randint(0, 10, (3, 3))   #0~9 랜덤 초기화
+array5 = np.random.normal(0, 1, (3, 3))     #평균 0, 표준편차 1인 표준 정규 배열
+
+print(array1)	#[0 1 2 3]
+print(array2)	#[[0. 0. 0. 0.]]
+print(array3)	#[['1' '1' '1' '1']]
+print(array4)	#[[9 3 8 8]]
+print(array5)	#[[-0.684376    1.74030087  0.2387887  -0.03009152]]
+
+#### 다) Numpy 배열 형태 바꾸기 (reshape) +

+import numpy as np
+
+array1 = np.array([1, 2, 3, 4])   #1차원 배열
+array2 = array1.reshape((2, 2))   #2차원 배열
+
+print(array1)	#[1 2 3 4]
+print(array2)	#[[1 2]
+ 		# [3 4]]
+
+#### 라) Numpy 배열 (가로축으로)합치기 (concatenate) +

+import numpy as np
+
+array1 = np.array([1, 2, 3])
+array2 = np.array([4, 5, 6])
+array3 = np.concatenate([array1, array2])
+
+print(array3.shape)		#6
+print(array3)			#[1 2 3 4 5 6]
+
+#### 마) Numpy 배열 세로축으로 합치기 +

+import numpy as np
+
+array1 = np.arange(4).reshape(1, 4)
+array2 = np.arange(8).reshape(2, 4)
+array3 = np.concatenate([array1, array2], axis=0)	#axis=0을 기준으로 합쳐짐.
+
+print(array3.shape)		#(3, 4)
+print(array3)			#[[0 1 2 3]
+				# [0 1 2 3]
+				# [4 5 6 7]]
+
+#### 바) Numpy 배열 나누기 +

+import numpy as np
+
+array1 = np.arange(8).reshape(2, 4)
+left, right = np.split(array1, [2], axis=1)   #인덱스 2의 axis=1(col)을 기준으로 나눈다.
+
+print(f'{left.shape} & {right.shape}')	#(2, 2) & (2, 2)
+print(f'{left[0]} & {right[0]}')	#[0 1] & [2 3]
+print(f'{left[1]} & {right[1]}')	#[4 5] & [6 7]
+
+
+ +# 04. Numpy의 기본 연산 +## 1) Numpy의 기본 연산 +- Numpy는 배열에 대한 기본적인 사칙연산을 지원 + +## 2) Numpy의 상수 연산 +#### 가) 더하기 +- 배열(백터) + 숫자(스칼라) : 각각의 원소에 더하기 수행 +

+import numpy as np
+
+array = np.random.randint(1, 10, size=4).reshape(2, 2)
+add_array = array+10
+
+print(f'{array[0]} => {add_array[0]}')	#[1 5] => [11 15]
+print(f'{array[1]}    {add_array[1]}')	#[9 6]    [19 16]
+
+#### 나) 곱하기 +- 배열(백터) + 숫자(스칼라) : 각각의 원소에 곱하기 수행 +

+import numpy as np
+
+array = np.random.randint(1, 10, size=4).reshape(2, 2)
+mul_array = array*10
+
+print(f'{array[0]} => {mul_array[0]}')	#[5 2] => [50 20]
+print(f'{array[1]}    {mul_array[1]}')	#[2 6]    [20 60]
+
+ +## 3) Numpy의 서로 다른 형태의 연산 => 브로드캐스트 +- 브로드캐스트 : 형태가 다른 배열을 연산할 수 있도록 배열의 형태를 동적으로 변환 +![image](https://user-images.githubusercontent.com/115006161/198888340-ead7726a-51f2-4058-a665-d39693f1bae5.png) +

+import numpy as np
+
+array1 = np.arange(0,4).reshape(2, 2)
+array2 = np.arange(0,2).reshape(2, 1)
+
+print(f'{array1[0]} + {array2[0]} = {array1[0]+array2[0]}')	#[0 1] + [0] = [0 1]
+print(f'{array1[1]}   {array2[1]} = {array1[1]+array2[1]}')	#[2 3]   [1] = [3 4]
+
+ +## 4) Numpy의 마스킹 연산 +- 마스킹 : 각 원소에 대하여 체크 +- 반복문을 이용할 때보다 매우 빠르게 동작 +- 이미지 처리(Image Processing) or 데이터 분석을 할 때 많이 사용 + ex. 색상이 매우 밝은 픽셀 값만 뽑아내서 다르게 바꿀 수 있음. +![image](https://user-images.githubusercontent.com/115006161/198888410-2ed6071e-ed18-4309-bcd0-dcfd41daaf8f.png) +

+import numpy as np
+
+array  = np.arange(16).reshape(4, 4)
+array1 = array < 10
+array2 = np.arange(16).reshape(4, 4)
+array2[array1]=100
+
+print(f'{array[0]}=>{array1[0]}=>{array2[0]}') #[0 1 2 3]  =>  [ True  True  True  True]=>[100 100 100 100]
+print(f'{array[1]}  {array1[1]}  {array2[1]}') #[4 5 6 7]      [ True  True  True  True]  [100 100 100 100]
+print(f'{array[2]}  {array1[2]}  {array2[2]}') #[ 8  9 10 11]  [ True  True False False]  [100 100  10  11]
+print(f'{array[3]}  {array1[3]}  {array2[3]}') #[12 13 14 15]  [False False False False]  [12 13 14 15]
+
+ +## 5) Numpy의 집계 함수 +

+import numpy as np
+
+array  = np.arange(16).reshape(4, 4)
+
+print(f'최대값 : {np.max(array)}')	#최대값 : 15
+print(f'최소값 : {np.min(array)}')	#최소값 : 0
+print(f'합계   : {np.sum(array)}')	#합계 : 120	#np.sum(array, axis=0):열에 대해 더함
+print(f'평균값 : {np.mean(array)}')	#평균값 : 7.5
+
+
+ +# 05. Numpy의 활용 +## 1) Numpy의 저장과 불러오기 +![image](https://user-images.githubusercontent.com/115006161/198888602-8451f52c-6068-4606-8074-72fe585ee426.png) +#### 가) 단일 객체 저장 및 불러오기 : np.save & .npy +

+import numpy as np
+
+array  = np.arange(0,10)
+np.save('saved.npy', array)
+
+file = np.load('saved.npy')
+
+print(file)	#[0 1 2 3 4 5 6 7 8 9]
+
+#### 나) 복수 객체 저장 및 불러오기 : np.savez & .npz +

+import numpy as np
+
+array1 = np.arange(0, 10)
+array2 = np.arange(10, 20)
+np.savez('saved.npz', file1=array1, file2=array2)
+
+data = np.load('saved.npz')
+file1 = data['file1']
+file2 = data['file2']
+
+print(file1)	#[0 1 2 3 4 5 6 7 8 9]
+print(file2)	#[10 11 12 13 14 15 16 17 18 19]
+
+ +## 2) Numpy 원소의 정렬 +- 오름차순, 내림차순, 각 열을 기준으로 정렬 +

+import numpy as np
+
+array = np.array([5, 9, 10, 3, 1])
+array.sort()
+array1 = np.array([[5, 9, 10, 3, 1], [8, 3, 4, 2, 5]])
+array1.sort(axis=0)
+
+print(f'기본배열 : {array}')			#기본배열 : [ 1  3  5  9 10]
+print(f'오름차순 : {array}')			#오름차순 : [ 1  3  5  9 10]
+print(f'내림차순 : {array[::-1]}')		#내림차순 : [10  9  5  3  1]
+print(f'각 열을 기준으로 정렬 : {array1[0]}')	#각 열을 기준으로 정렬 : [5 3 4 2 1]
+print(f'{array1[1]}')				#		        [8 9 10 3 5]
+
+ +## 3) 자주 사용되는 함수 +- 균일한 간격으로 데이터 생성 (np.linspace) +- 난수 (np.random.randint) +- Numpy 배열 객체 복사(copy) + cf) 'array1 = array2' 형식으로 복사를 하게되면, array2 수정 시 array1도 바뀜. +- 중복된 원소 제거 +

+import numpy as np
+
+array = np.array([1, 2, 2, 2, 3, 3])
+균일_array = np.linspace(0, 10, 5)
+난수_array = np.random.randint(0, 10, (2, 2)) #실행마다 결과 동일하게 하려면 seed() 함수 사용.
+복사_array = 난수_array.copy()
+중복제거_array = np.unique(array)
+
+print(f'{균일_array}')		#[ 0. 2.5 5. 7.5 10. ]
+print(f'{난수_array}')		#[[8 8] [7 5]]
+print(f'{복사_array}')		#[[8 8] [7 5]]
+print(f'{중복제거_array}')	#[1 2 3]
+
+
+ +# 06. Matplotlib의 기초 +## 1) Matplotlib란? +- 다양한 데이터를 시각화 할 수 있도록 도와주는 라이브러리 +- 간단한 데이터 분석에서부터 인공지능 모델의 시각화까지 활용도가 매우 높음. + +## 2) 간단한 직선 그래프 +

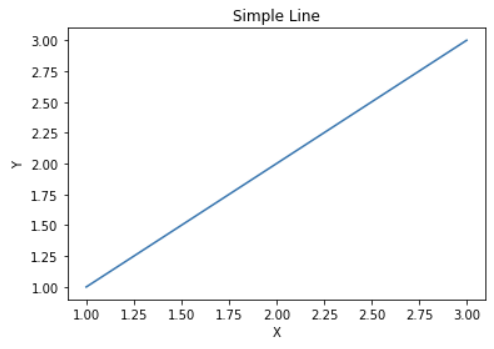

+import matplotlib.pyplot as plt
+
+x = [1, 2, 3] #x=1일 때, y=1 ...
+y = [1, 2, 3]
+plt.plot(x, y)
+plt.title("Simple Line")
+plt.xlabel("X")
+plt.ylabel("Y")
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198889483-518a839b-ebb4-4574-9c7e-b27a2467c97d.png) + +## 3) 그래프 저장 (savefig) +- 이미지 형식으로 저장 (.png) +

+import matplotlib.pyplot as plt
+
+x = [1, 2, 3]
+y = [1, 2, 3]
+plt.plot(x, y)
+plt.title("Simple Line")
+plt.xlabel("X")
+plt.ylabel("Y")
+plt.savefig('picture.png')
+
+![image](https://user-images.githubusercontent.com/115006161/198889206-da73681b-d48b-47e3-868a-449c032817bc.png) + +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x = np.linspace(0, np.pi*10, 500) #pi*10 너비에 500개의 점을 균일하게 찍기기
+fig, axes = plt.subplots(2, 1)    #2개의 그래프가 들어가는 Figure 생성 (2x1)
+axes[0].plot(x, np.sin(x))        #첫 번째 그래프는 사인(sin) 그래프
+axes[1].plot(x, np.cos(x))        #두 번째 그래프는 코사인(cos) 그래프프
+fig.savefig('sin&cos.png')
+
+![image](https://user-images.githubusercontent.com/115006161/198889265-f5543e20-9992-4f0d-9664-3c5df729b70c.png) + + +## 4) 선 그래프 +- 라인 스타일로는 '-', ':', '-.', '--' 등이 사용될 수 있음. +- legend : 레이블에 대한 정보 +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x = np.arange(-9, 10)
+y = x**2
+plt.plot(x, y, linestyle=":", marker="*")
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198889340-286a18e9-a5d7-445e-85b8-9d7394522b7a.png) + +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x  = np.arange(-9, 10)
+y1 = x**2
+y2 = -x
+plt.plot(x, y1, linestyle="-.", marker="*", color="red", label="y = x * x")
+plt.plot(x, y2, linestyle=":", marker="o", color="blue", label="y = -x")
+plt.xlabel("X")
+plt.ylabel("Y")
+plt.legend(
+    shadow=True,
+    borderpad=1
+)
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198889370-3cddd399-f2a5-4330-8750-59ceb52d5f5d.png) +
+ +# 07. Matplotlib 다루기 +## 1) 선 그래프 그리기 +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x  = np.arange(-9, 10)
+y1 = x**2
+plt.plot(
+    x, y1,
+    linestyle=":",
+    marker="o",
+    markersize=8,
+    markerfacecolor="blue",
+    markeredgecolor="red"
+)
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198890610-965f6c86-9580-47cd-855b-ecc3c1578ccd.png) + +## 2) 막대 그래프 그리기 ( bar 함수 ) +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x  = np.arange(-9, 10)
+plt.bar(x, x**2)
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198890726-0913ec54-ff98-491a-87ff-a4eee9fba640.png) + +## 3) 누적 막대 그래프 그리기 +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x = np.random.rand(10) #아래 막대
+y = np.random.rand(10) #중간 막대
+z = np.random.rand(10) #위 막대
+data = [x, y, z]
+x_array = np.arange(10)
+for i in range(0, 3): #누적 막대의 종류가 3개
+  plt.bar(
+      x_array,  #0부터 10까지의 x위치에서
+      data[i],  #각 높이(10개)만큼 쌓음
+      bottom = np.sum(data[:i], axis=0) #끝난 시점으로 쌓음
+  )
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198891029-fb7e667d-c35a-4270-be01-06f523c3e8e5.png) + +## 4) 스캐터 그래프 그리기 +- 공간 데이터의 *분포or분산*에 적합 +

+import matplotlib.pyplot as plt
+import numpy as np
+
+x = np.random.rand(10) #10개의 데이터
+y = np.random.rand(10)
+colors = np.random.randint(0, 100, 10)
+sizes = np.pi*1000*np.random.rand(10)
+plt.scatter(x, y, c = colors, s = sizes, alpha = 0.5)
+plt.show()
+
+![image](https://user-images.githubusercontent.com/115006161/198891380-18fd2a63-0d57-4835-ac1a-52c79d03791a.png) diff --git "a/2\354\243\274\354\260\250.md" "b/2\354\243\274\354\260\250.md" new file mode 100644 index 0000000..afa2a75 --- /dev/null +++ "b/2\354\243\274\354\260\250.md" @@ -0,0 +1,19 @@ +# 머신러닝 도입 +## 인공지능 소개 +### 01. 인공지능이란 무엇인가 ? +Haugeland : 마음을 가진 기계들
+Charniak and McDermott : The study of mental faculties
+Schalkoff : 지능적인 행동을 설명하고 모방하려는 연구 분야
+Rich & Knight : 사람들이 더 나은 일을 하도록 만드는 방법 연구 by computers
+Kurzweil : 사람이 수행했을 때 지능이 필요한 기능을 수행하는 기계를 만드는 기술
+Luger & Stublefield : 컴퓨터 과학의 한 분야 + +### 02. 지능이 무엇인가 ? +지능의 정의는 논란의 여지가 있다.
+지능의 요소에는 이해, 추론, 문제 해결, 학습, 상식, 일반화, 추론, 유추, 회상, 직관, 감정, 자기 인식이 있다. + +### 03. 인공지능의 네가지 범주 +1. Thinking humanly : 인간적으로 생각하기 +2. Thinking rationally : 이성적으로 생각하기 +3. Acting humanly : 인간적으로 행동하기 +4. Acting rationally : 이성적으로 행동하기
